Keep series-connected batteries closer in voltage balance with the PowMr Battery Balancer Voltage Equalizer, which transfers energy between higher- and lower-voltage batteries to support more consistent charging and discharging.
-

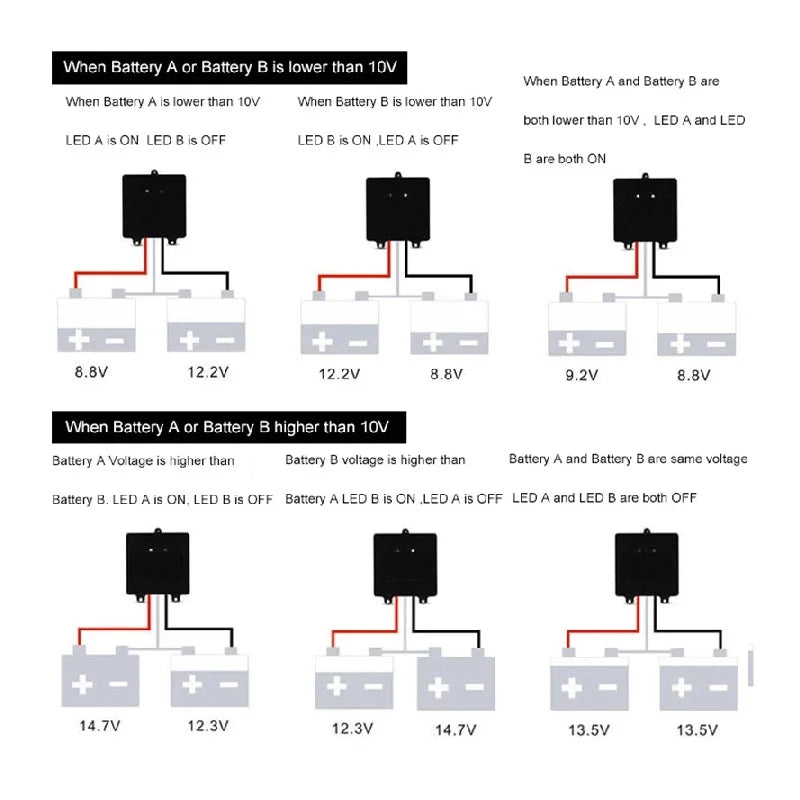

Automatic bidirectional balancing: You can leave the equalizer connected 24/7; it activates at a 10 mV voltage difference and redirects current until balance is restored.
-

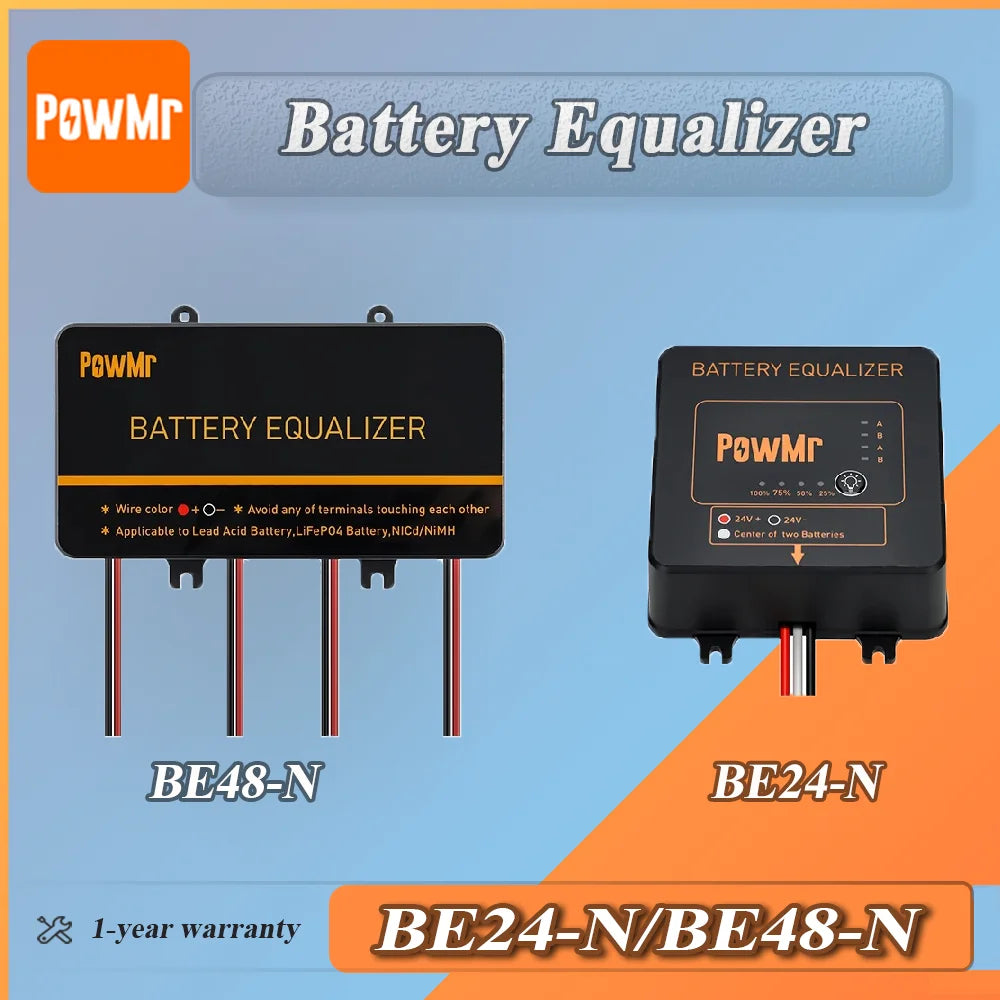

Two model options: BE24-N supports 2 × 12V batteries with 0–5A optimizing current, while BE48-N supports four 2.4V, 3.6V, 6V, 9V, or 12V batteries with 0–10A optimizing current.
-
Broad battery compatibility: You can use it with VRLA lead-acid, lithium iron phosphate, nickel-cadmium, and nickel-metal hydride rechargeable batteries within the listed voltage ranges.
-

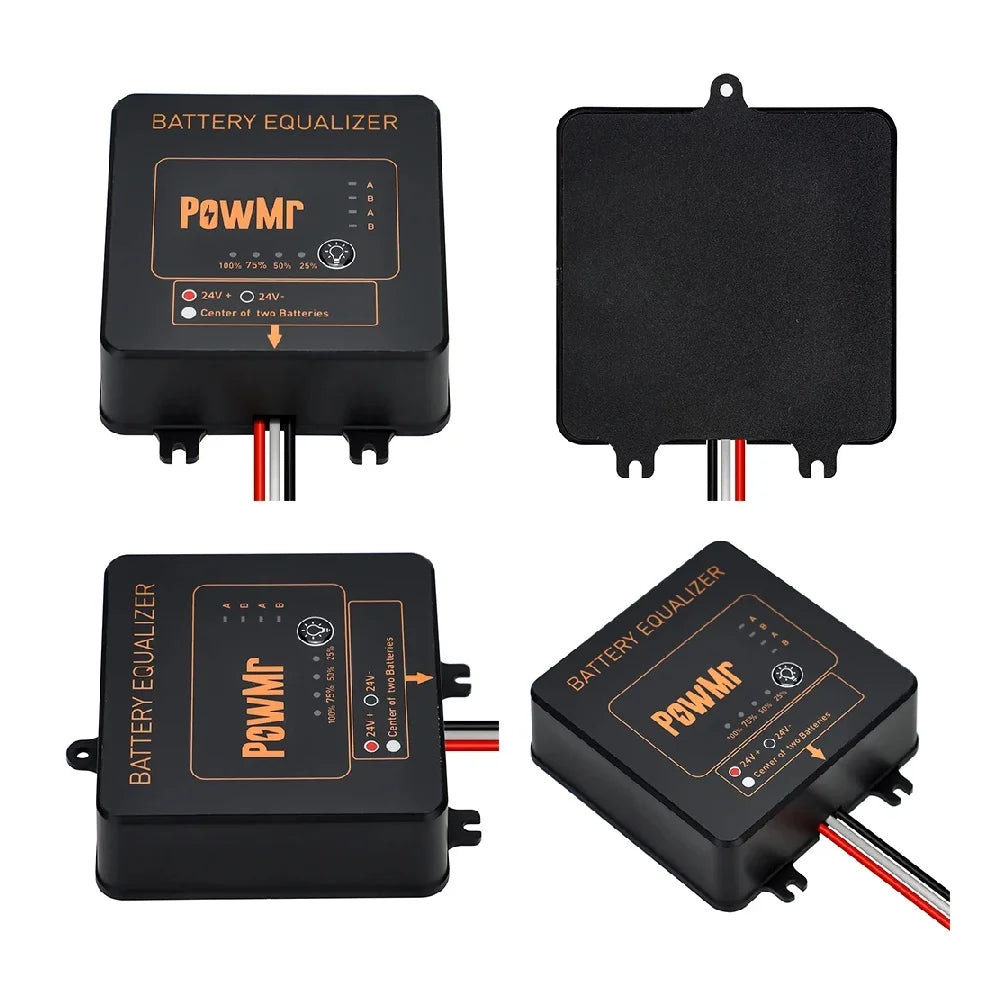

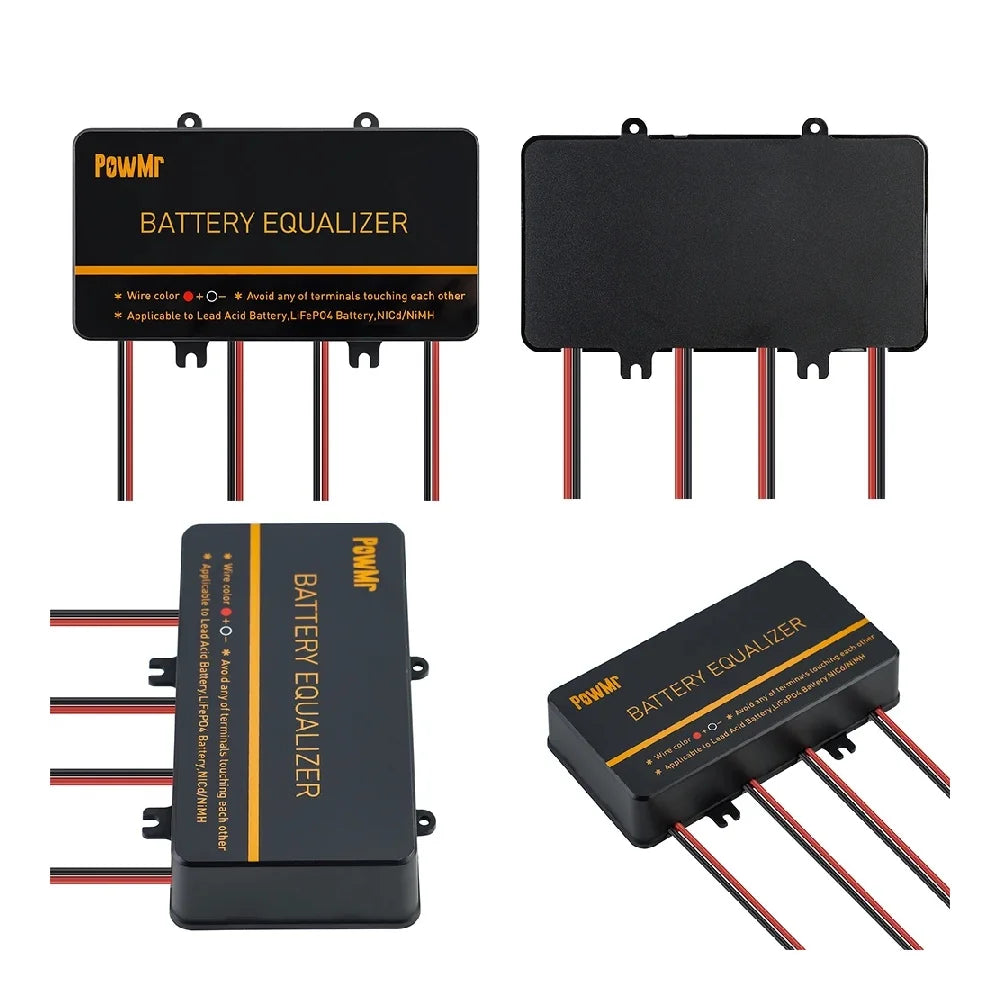

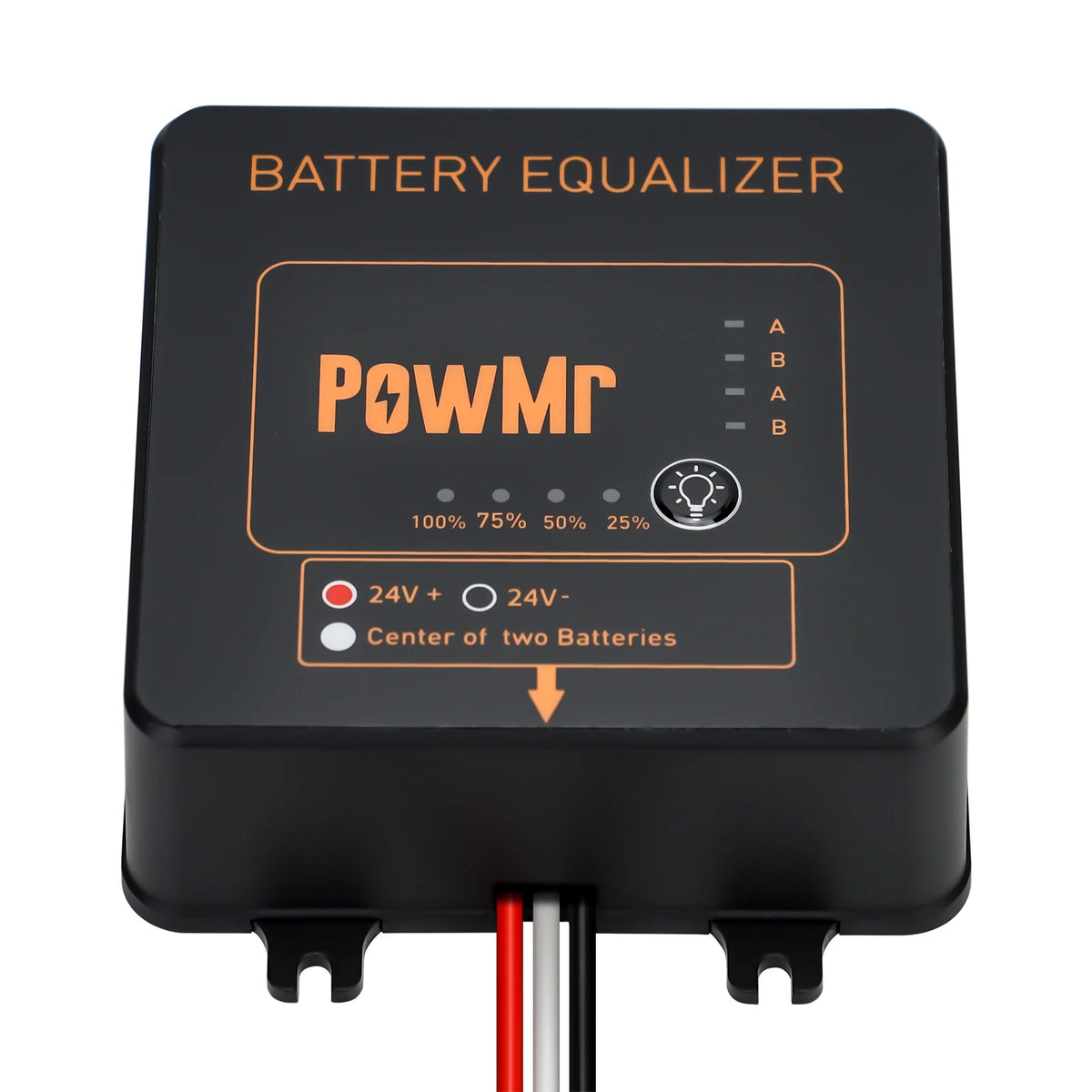

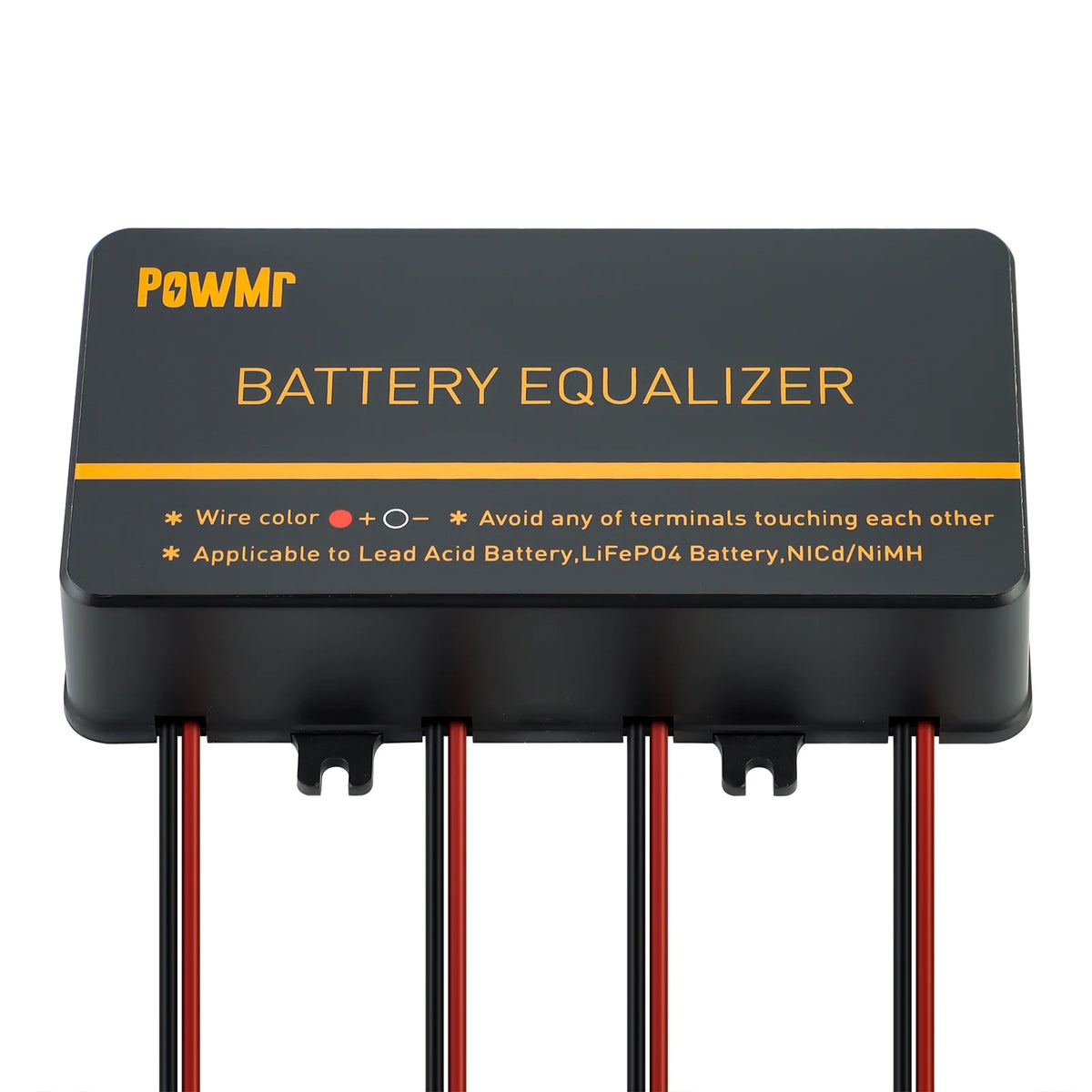

Compact protected design: BE24-N measures 78 × 78 × 28 mm and BE48-N measures 69 × 129 × 28 mm; both include reverse-polarity protection and clearly defined red, black, and white cable connections.
|
Model
|
BE24-N |
BE48-N |
Battery nominal voltage |
2*12V |
4*(2.4V/3.6V/6V/9V/12V) |
Optimizing current |
0-5A |
0-10A |
Qulescent current |
<3mA |
5mA(12V)1.2mA(2.4V) |
Dimensions |
78*78*28mm |
69*129*28 mm |
Protection |
Reverse polarity protection |
Reverse polarity protection |
Low Voltage Disconnect |
10V |
1.8V |
