DGSUNLIGHT 100w 200w 12v Portable Solar Panel Flexible 18V 800W Plate Cells Monocrystalline Silicon
DGSUNLIGHT 100w 200w 12v Portable Solar Panel Flexible 18V 800W Plate Cells Monocrystalline Silicon
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: dgsunlight
Certification: CE,RoHS
Flexible Solar Panel: Yes
Foldable Solar Panel: No
High-concerned chemical: none
Material: Monocrystalline Silicon
Max. Power: 100W
Maximum power current(Imp): 5.83A
Maximum power voltage(Vmp): 18.18v
Maximum power(Pmax): 100w
Model Number: RGN33-100W
Number of Panels: >20
Open circuit voltage(Voc): 21.8v
Origin: Mainland China
Short circuit current(Isc): 5.5A
Size: 970*530*3MM
Type: Solar Panel
Weight: 1.7kg
is_customized: Yes

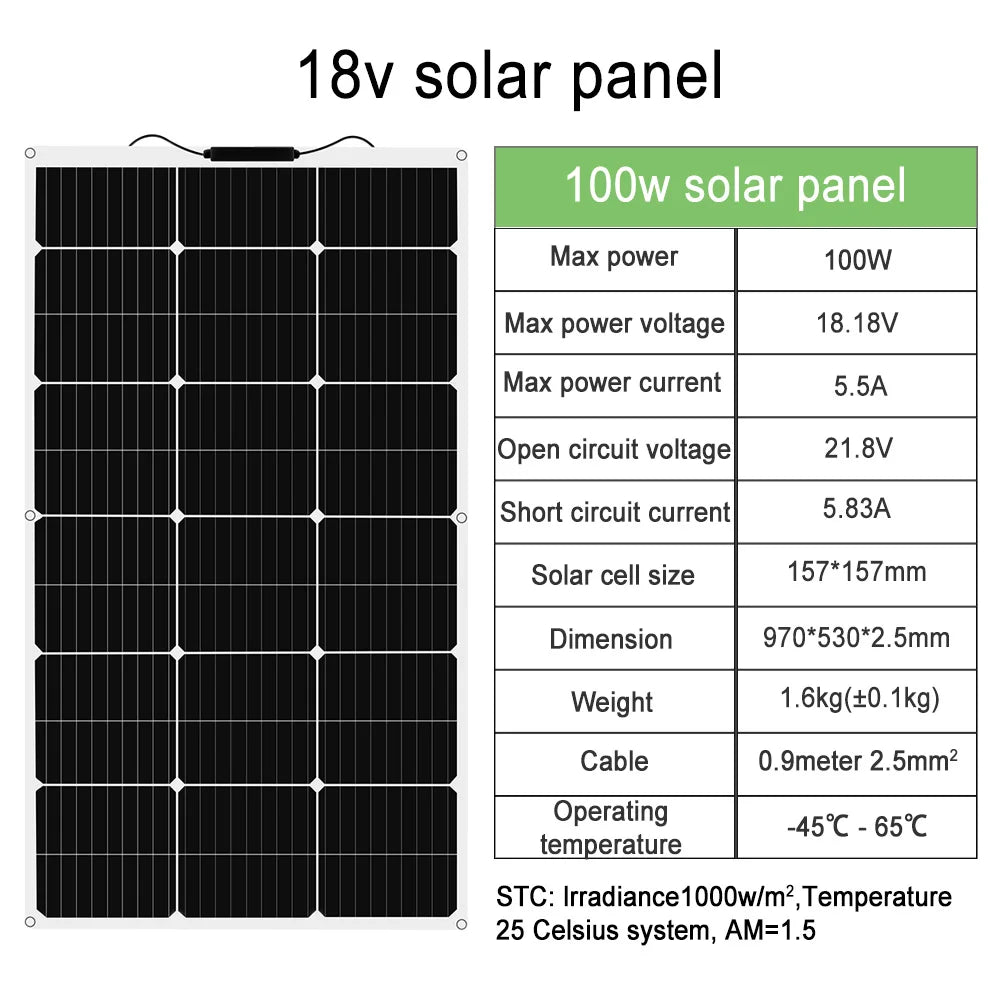

Electrical Characteristics
Max Power 100W
Max Power voltage 18.18V
Max Power Current 5.5A
Open Circuit Voltage 21.8V
Short Circuit Current 5.83A
Number of cells in Series 33
Mechanical Characteristics
Dimension 970X530X2.5mm
Weight 1.7kg(±0.1kg)
Cable 0.9 meter 2X2.5mm
Thermal Characteristics
Temperature coefficient of Pmax -0.38%/℃
Temperature coefficient of Voc -60.5mV/℃
Temperature coefficient of Isc 2.2mA/℃
NOTC 47℃+/-2℃
Operating Temperature -20℃ - +65℃
Shipping Information
This product we set up warehouse in United States, Germany, Poland, Spain, Czech Republic and Belgium，When you buy it,if you are in EU or US, we will ship to your country and it will be fast delivery.
However，
the zip code in France that starts with 97
the zip code in Portugal that starts with 9.
Above zone for local shipping company,they are remote area.there is no logistics shipping to above zone from Spain or Belgium.Remote areas need to charge extra freight. we will not ship to above zone,please not place order with above address,thanks.

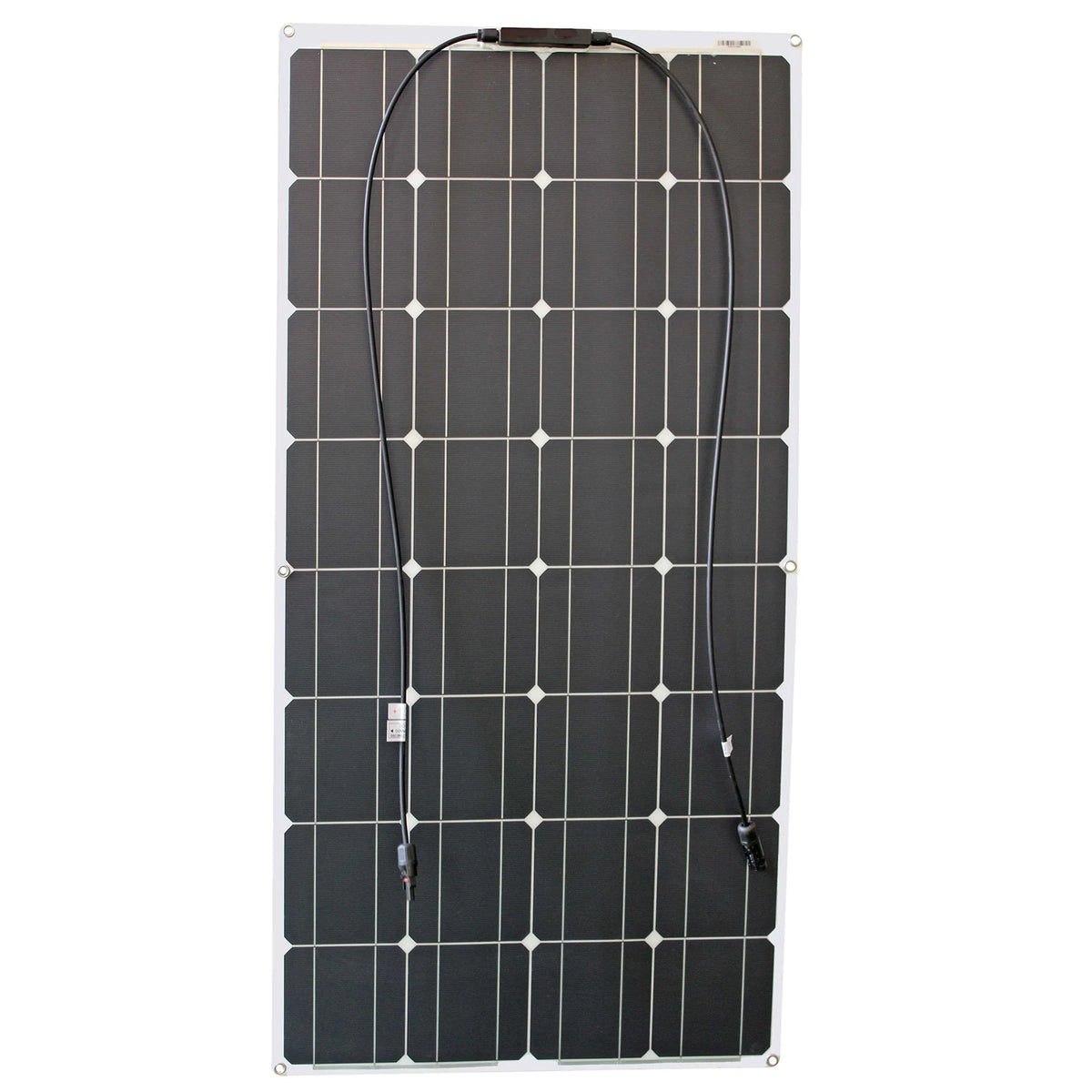

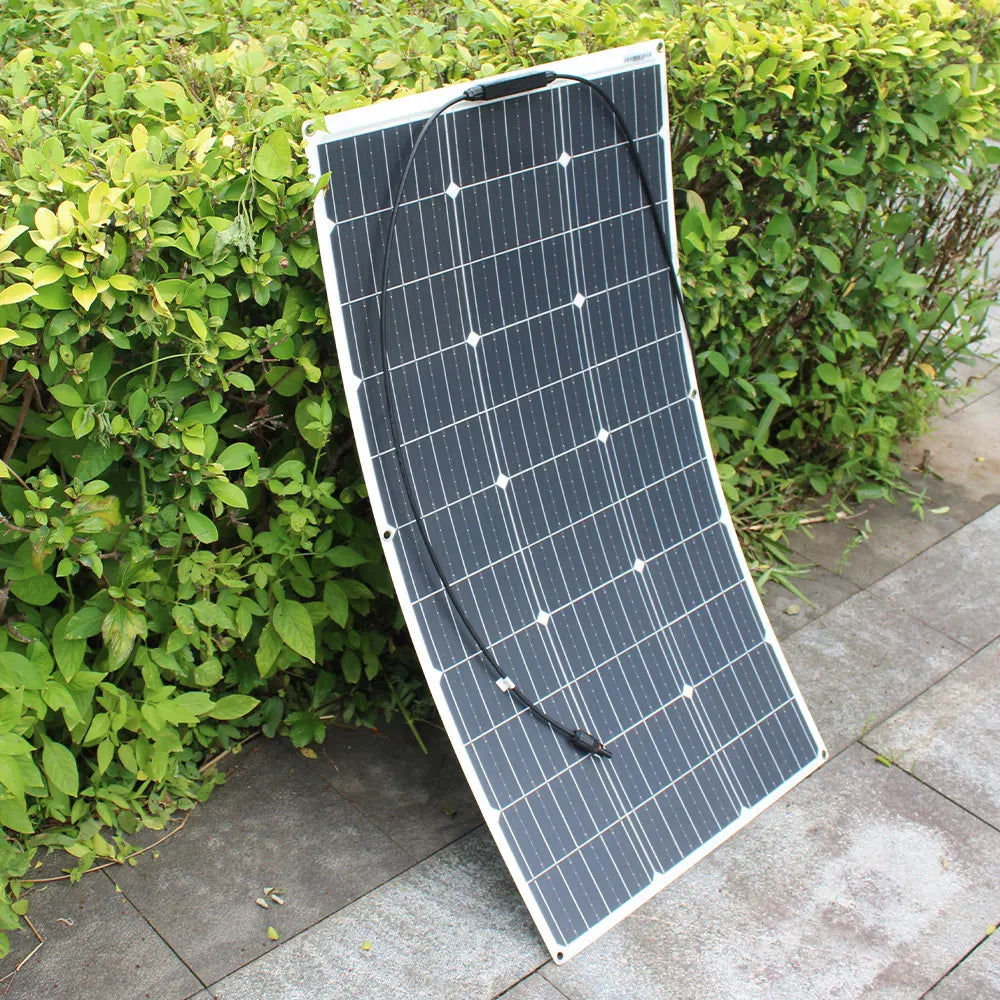

18V 100W Flexible solar panel

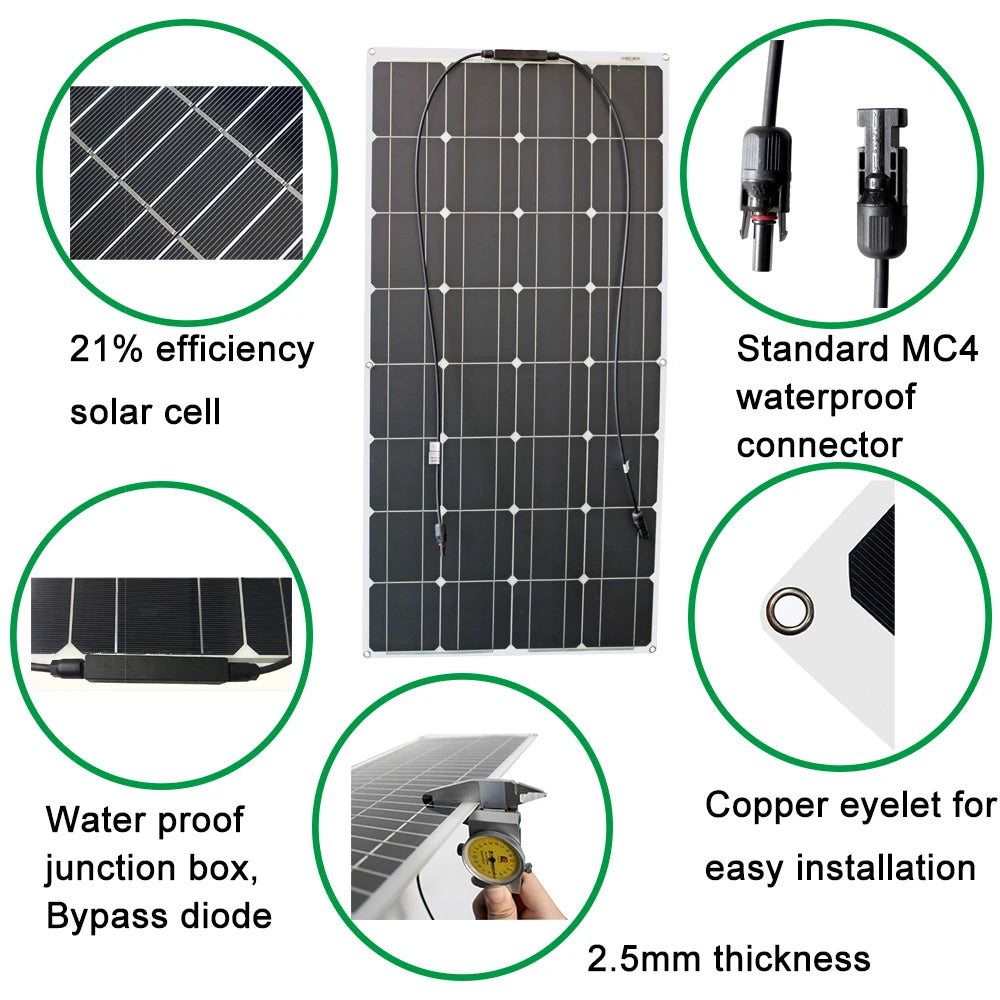

Advantages
Super Thin
Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup
High Efficient

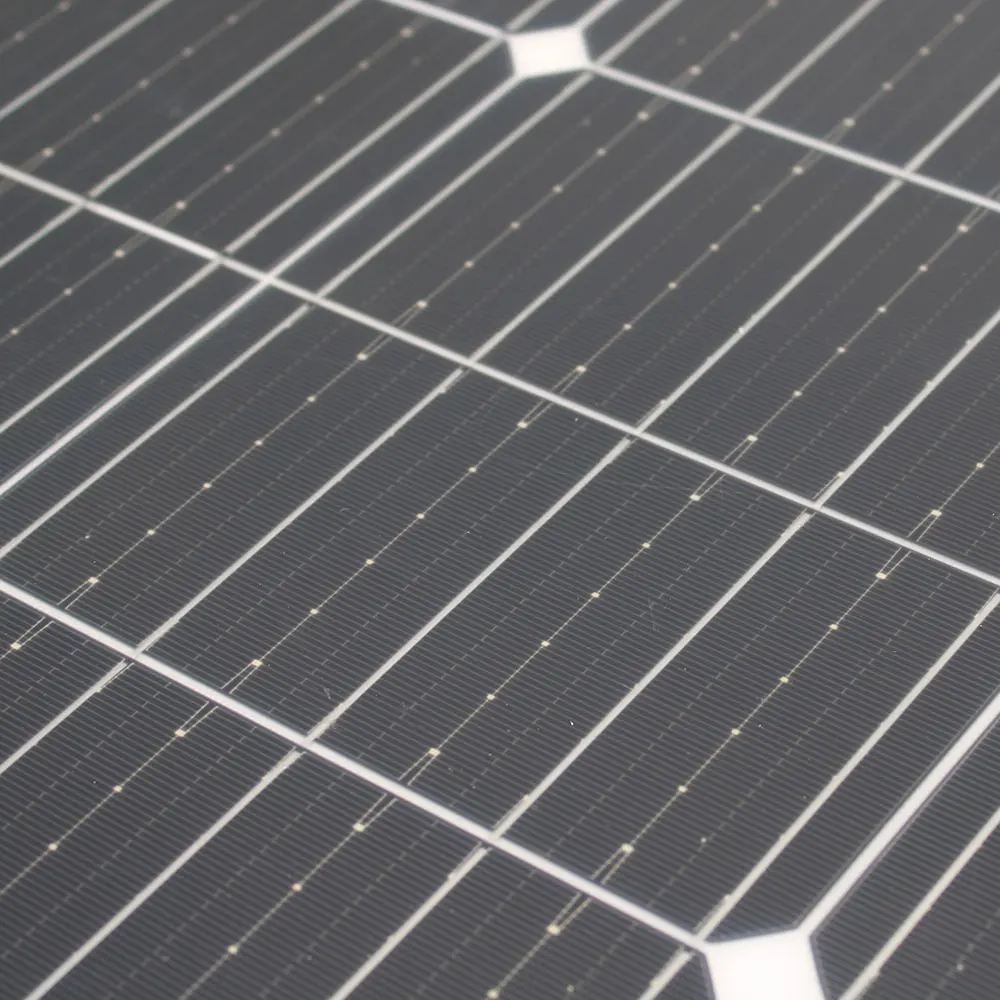

High solar cell efficiency: Monocrystalline 21%
Protection

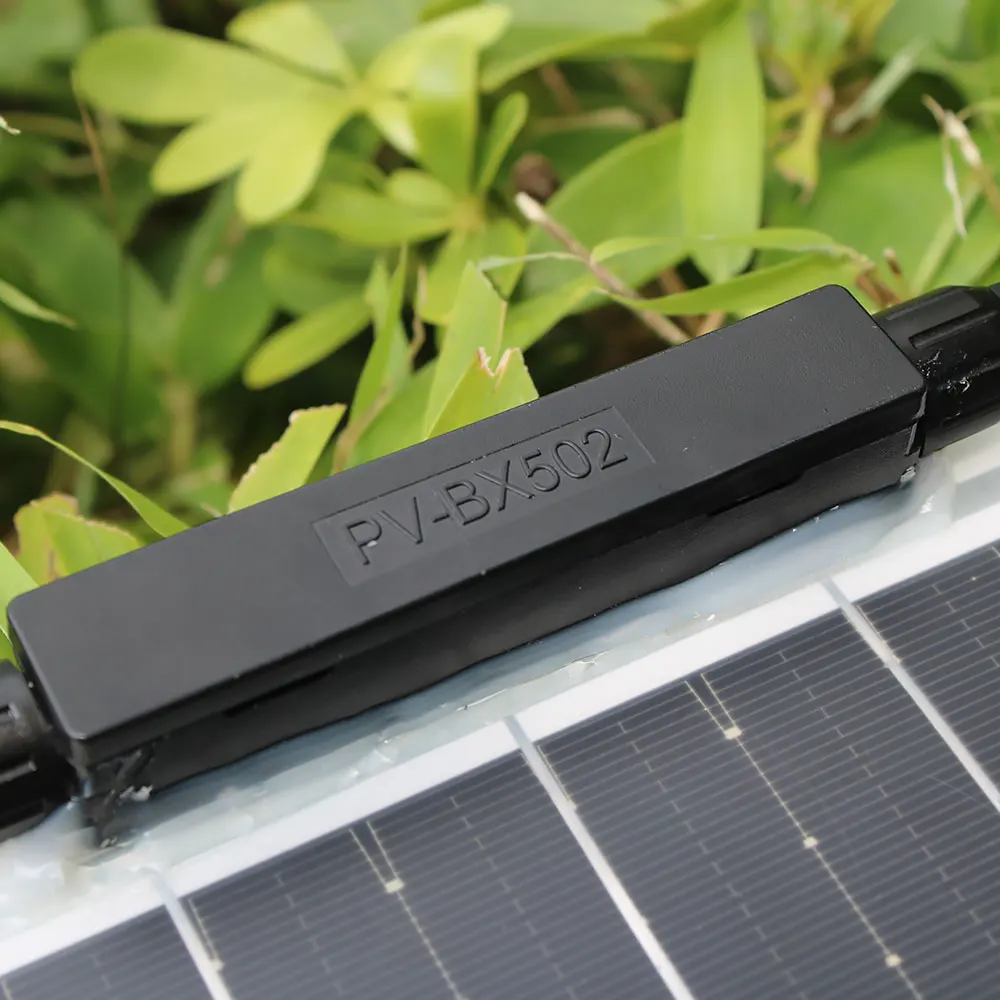

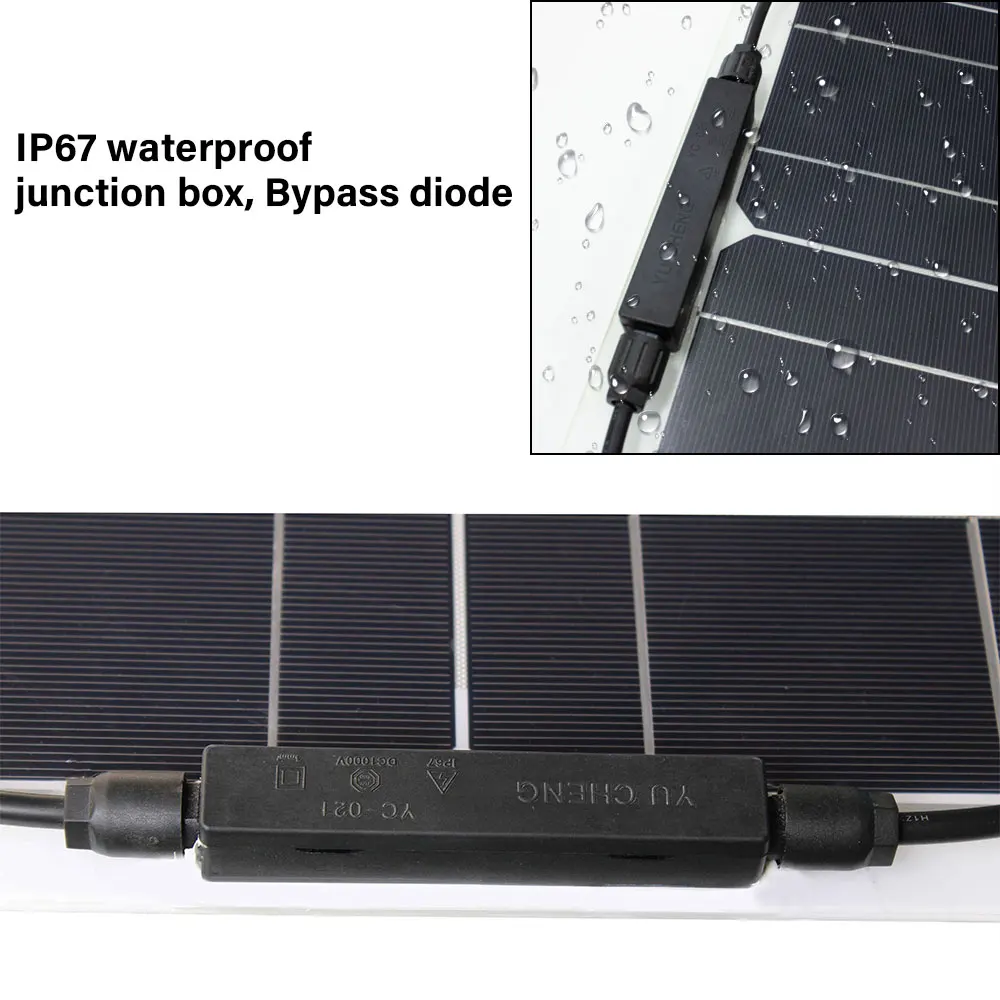

Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
Easy to install

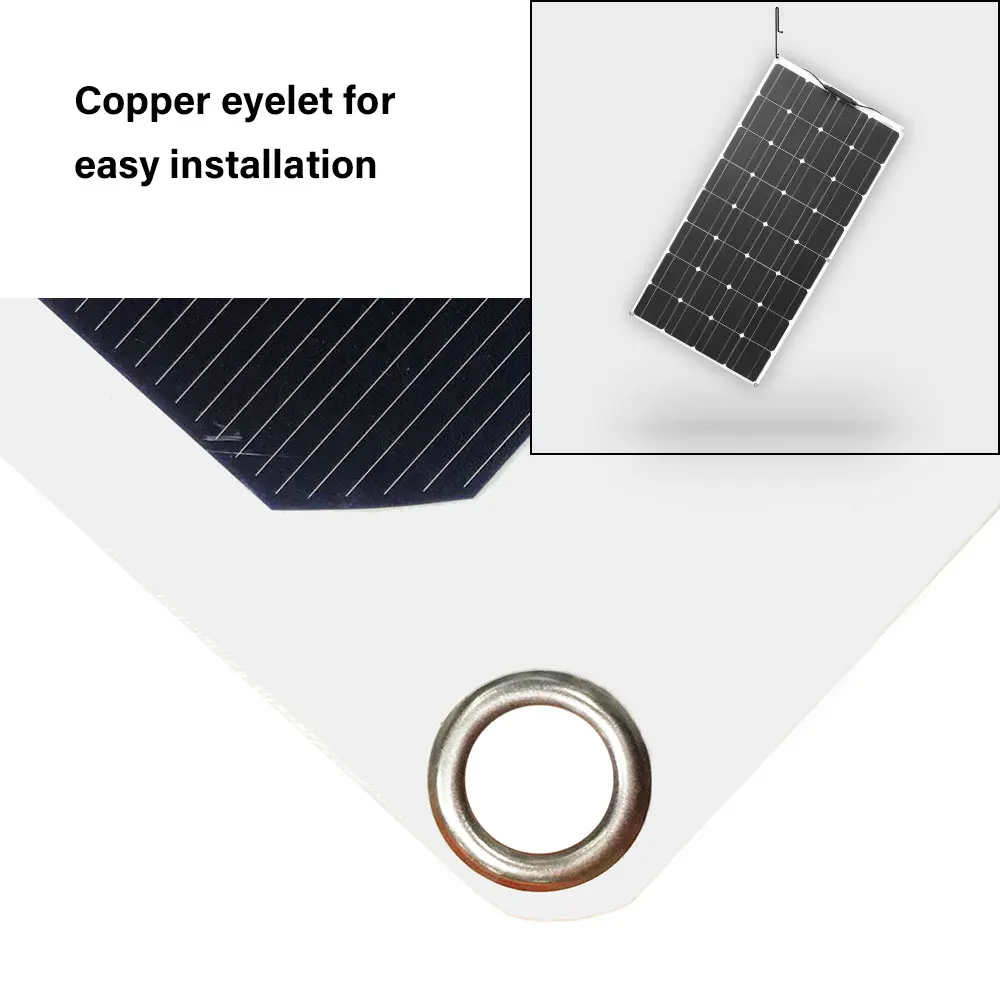

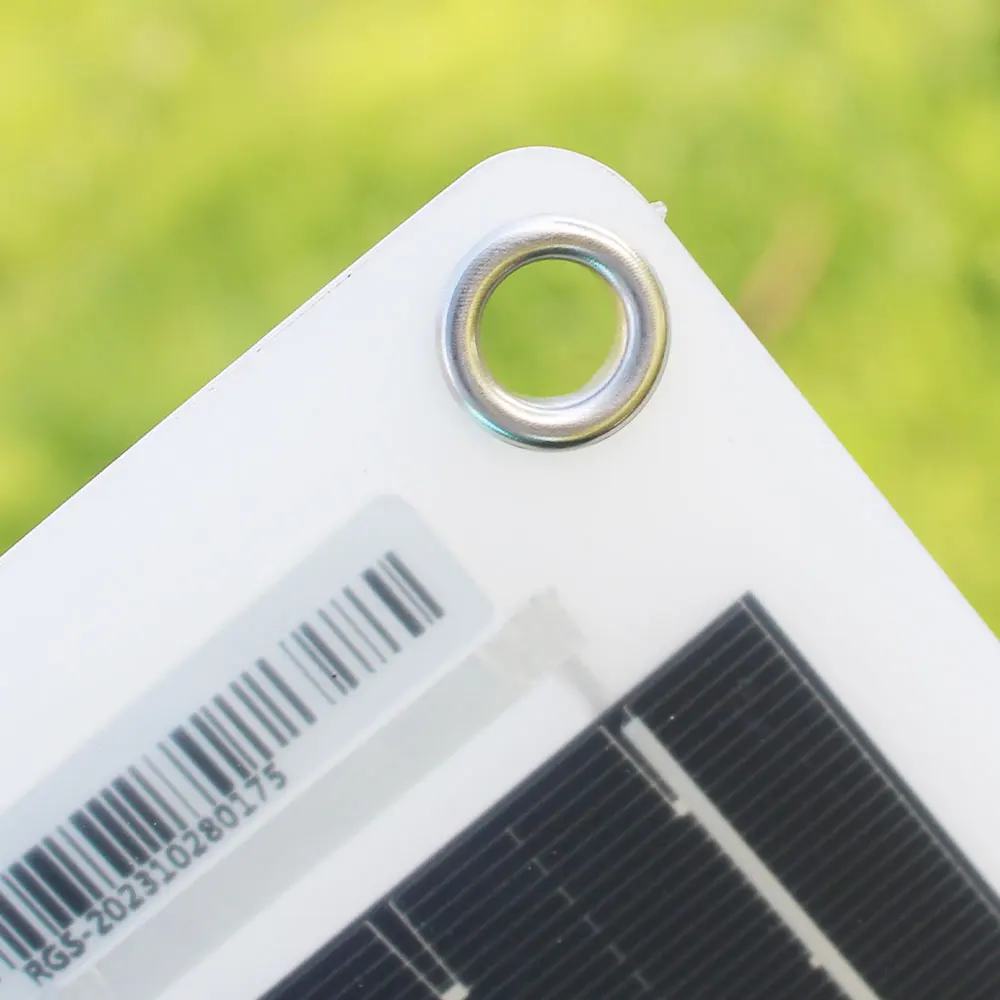

Metal holes in the corners of the product for fixing screws and mounting.

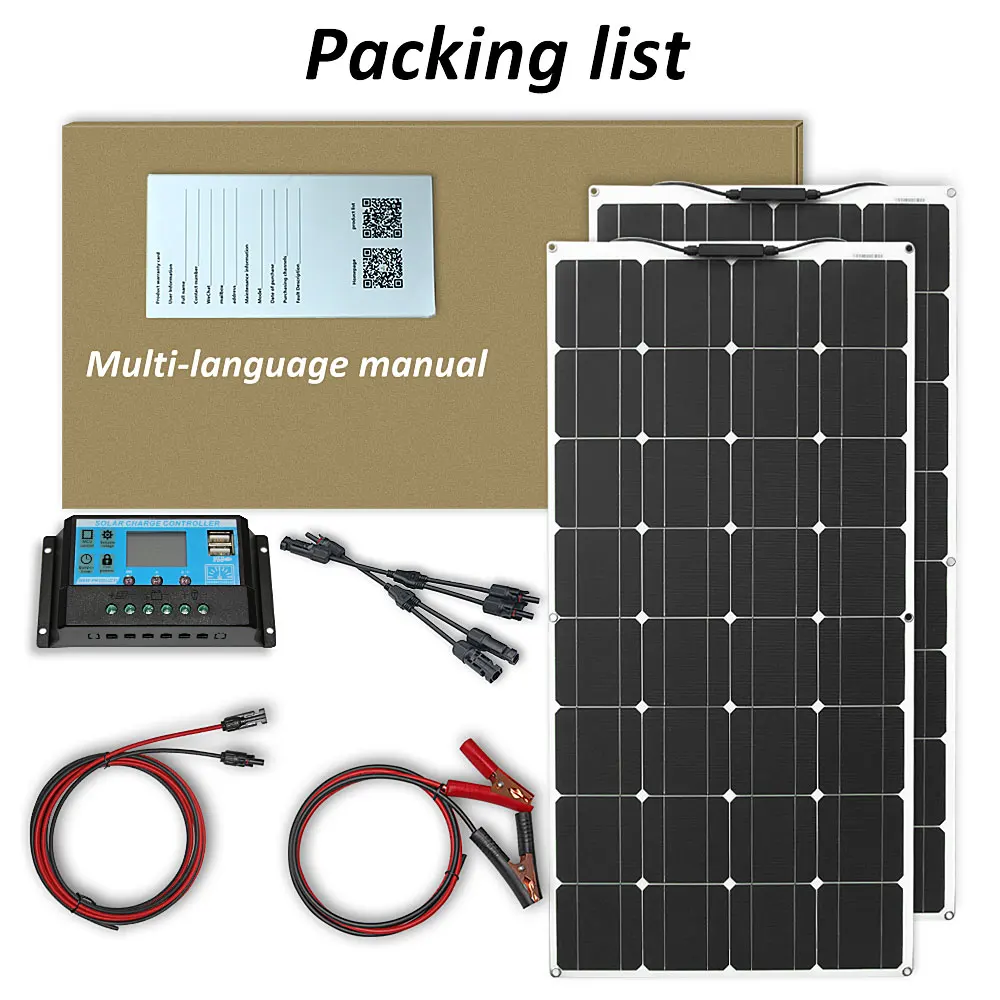

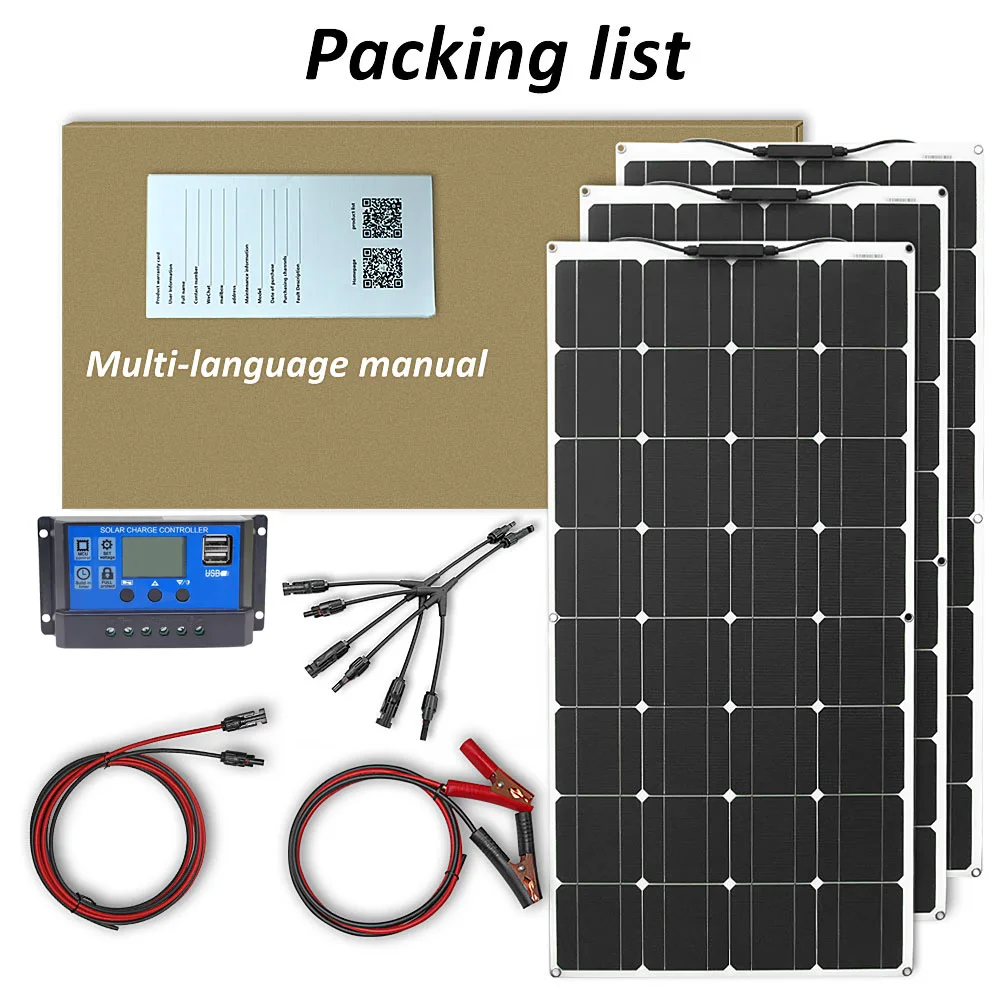

Packing List
100W Solar Panel= 1 pcs 100W flexible solar panel

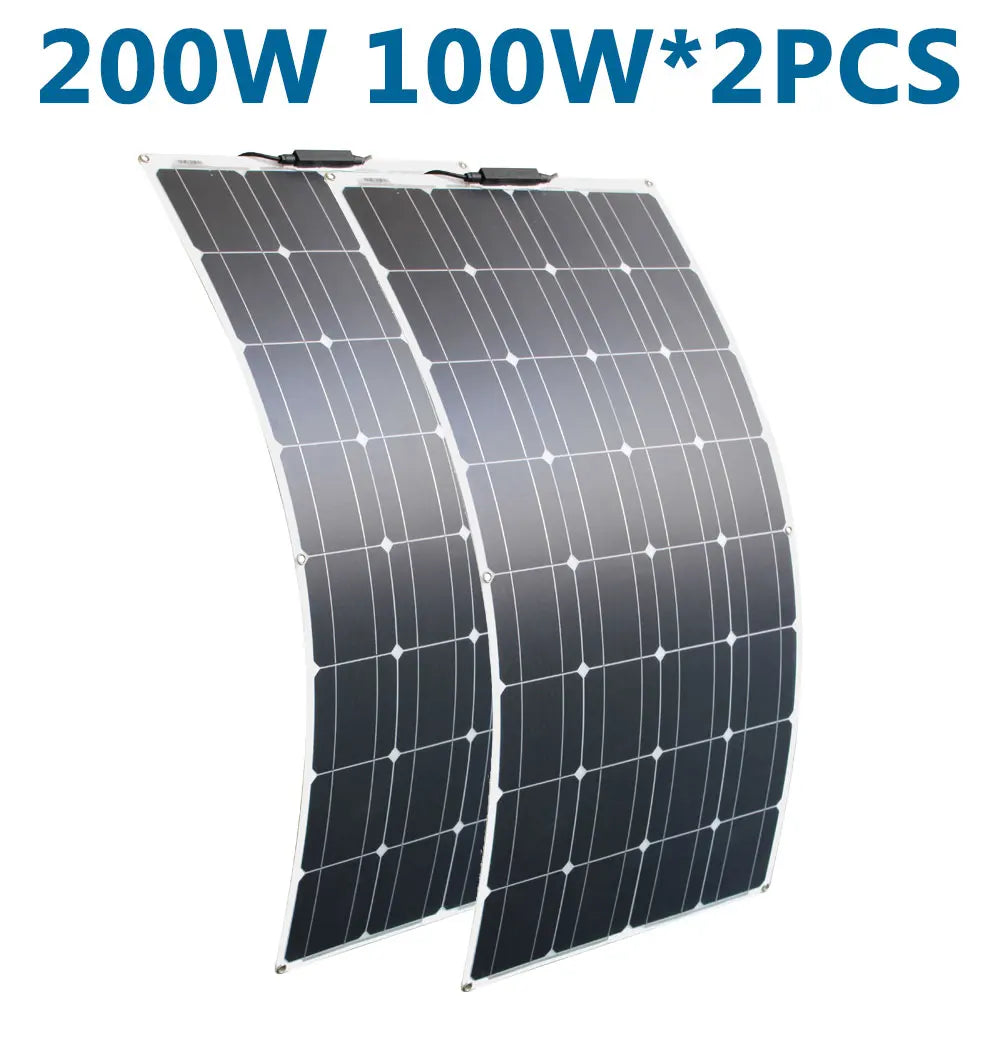

200W Solar Panel= 2 pcs 100W flexible solar panel

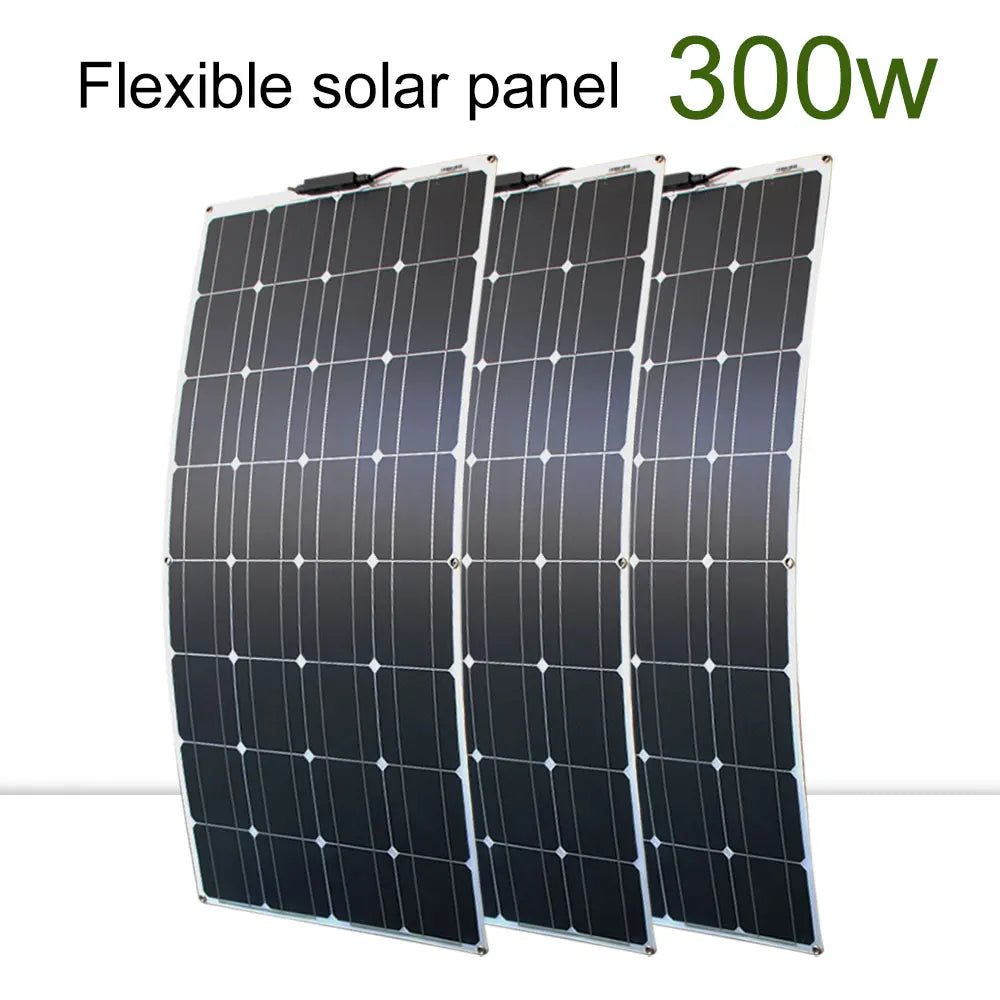

300W Solar Panel= 3 pcs 100W flexible solar panel

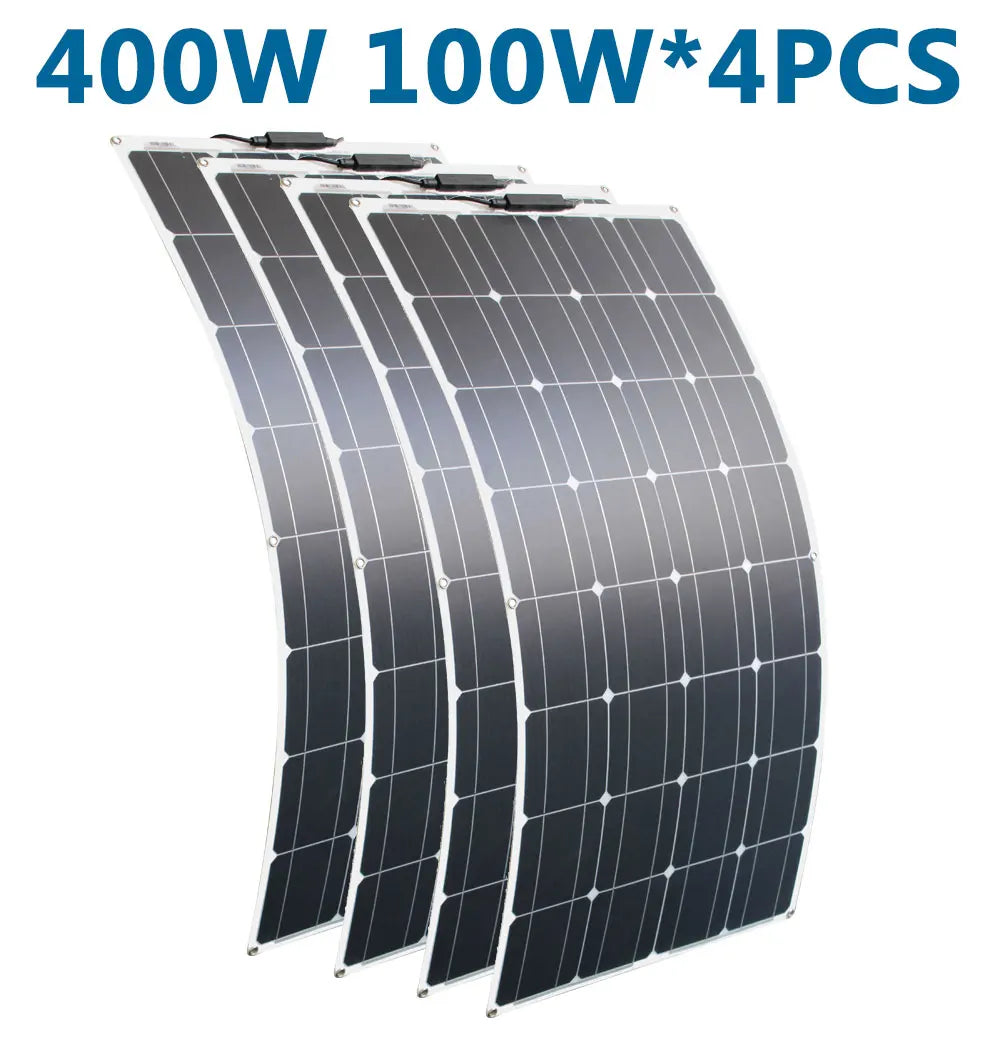

400W Solar Panel= 4 pcs 100W flexible solar panel

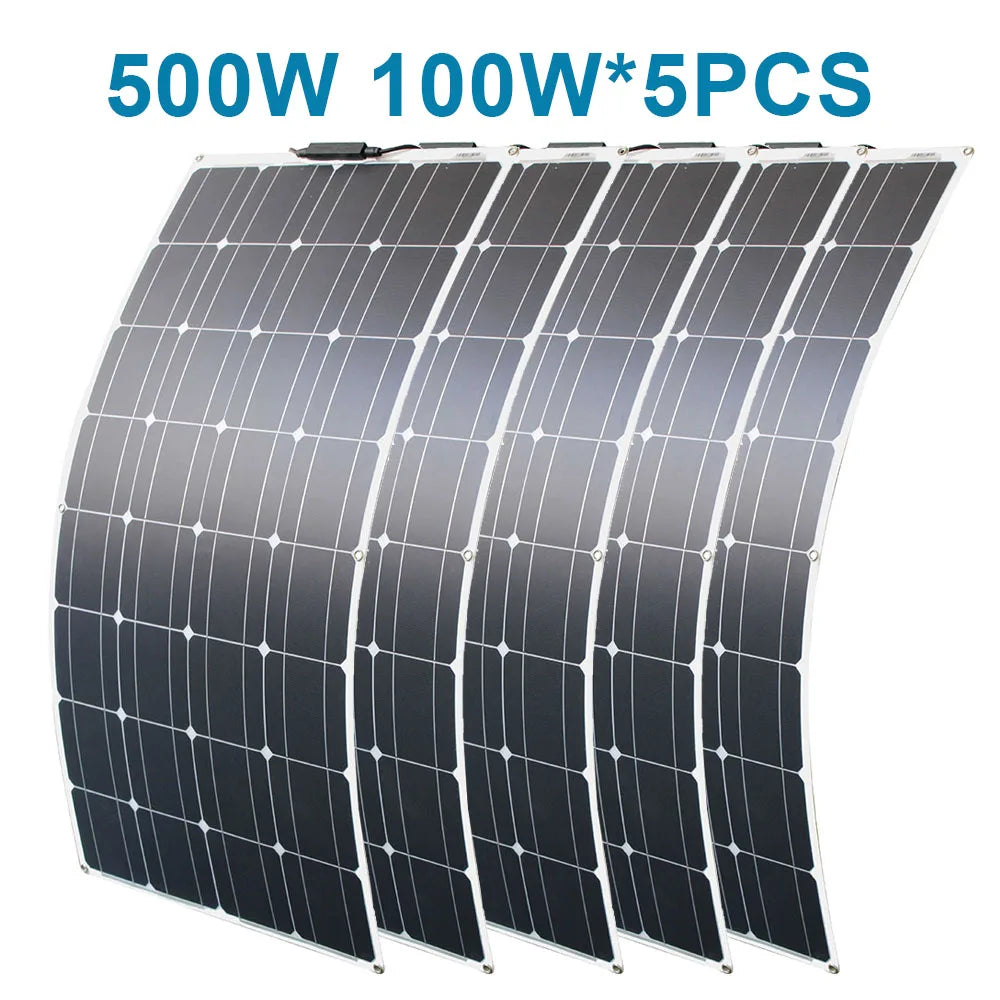

500W Solar Panel= 5 pcs 100W flexible solar panel

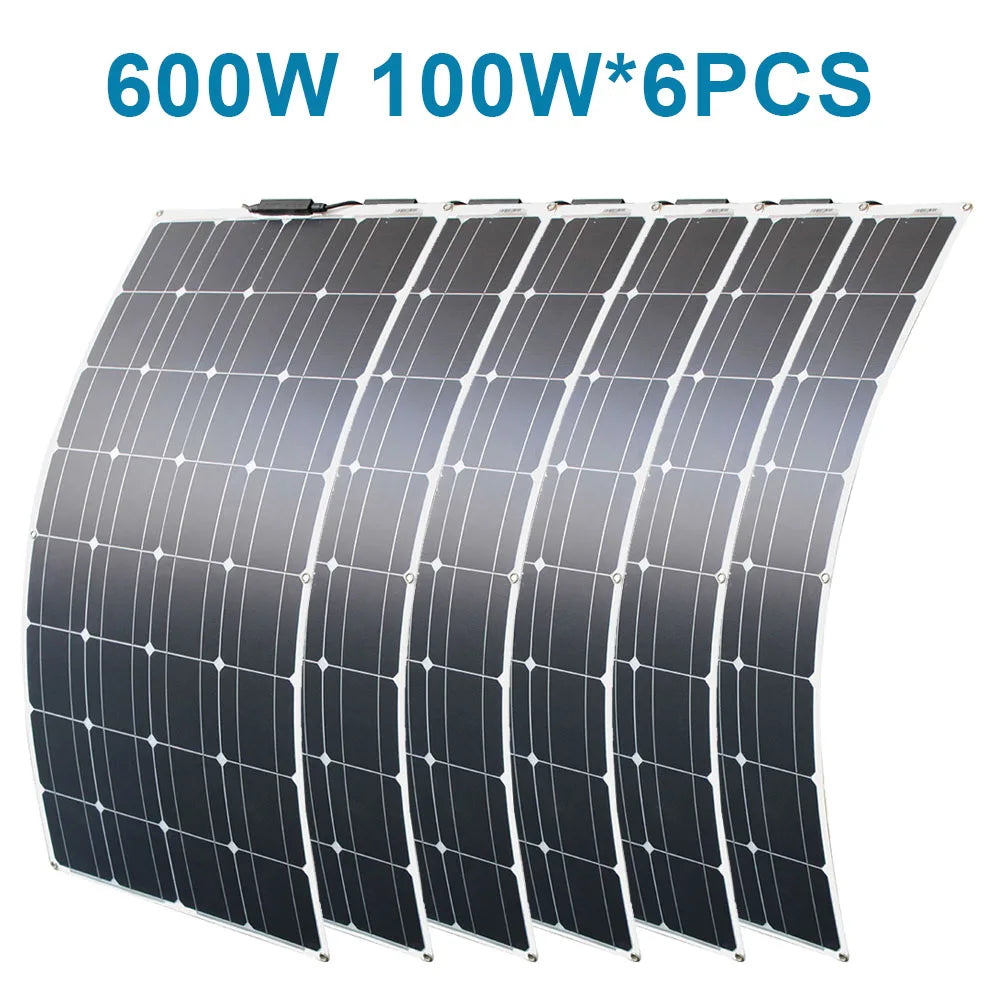

600W Solar Panel= 6 pcs 100W flexible solar panel

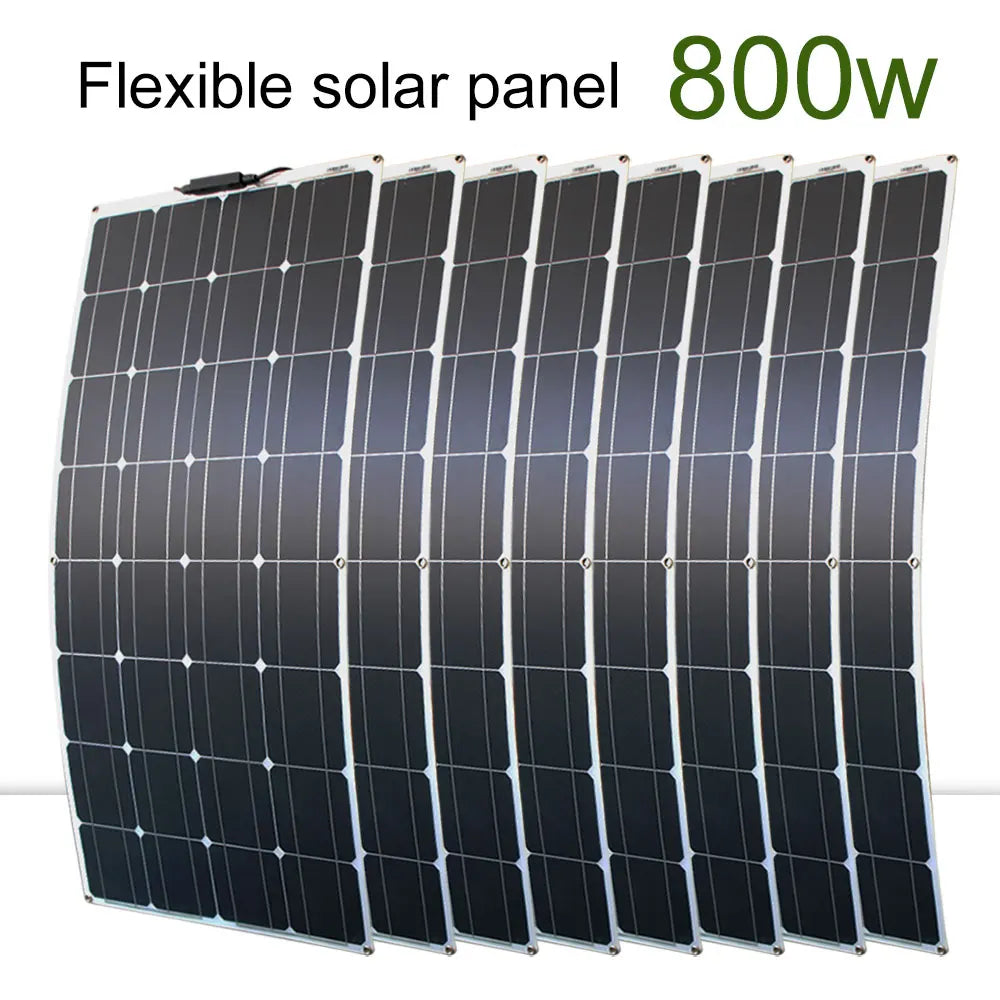

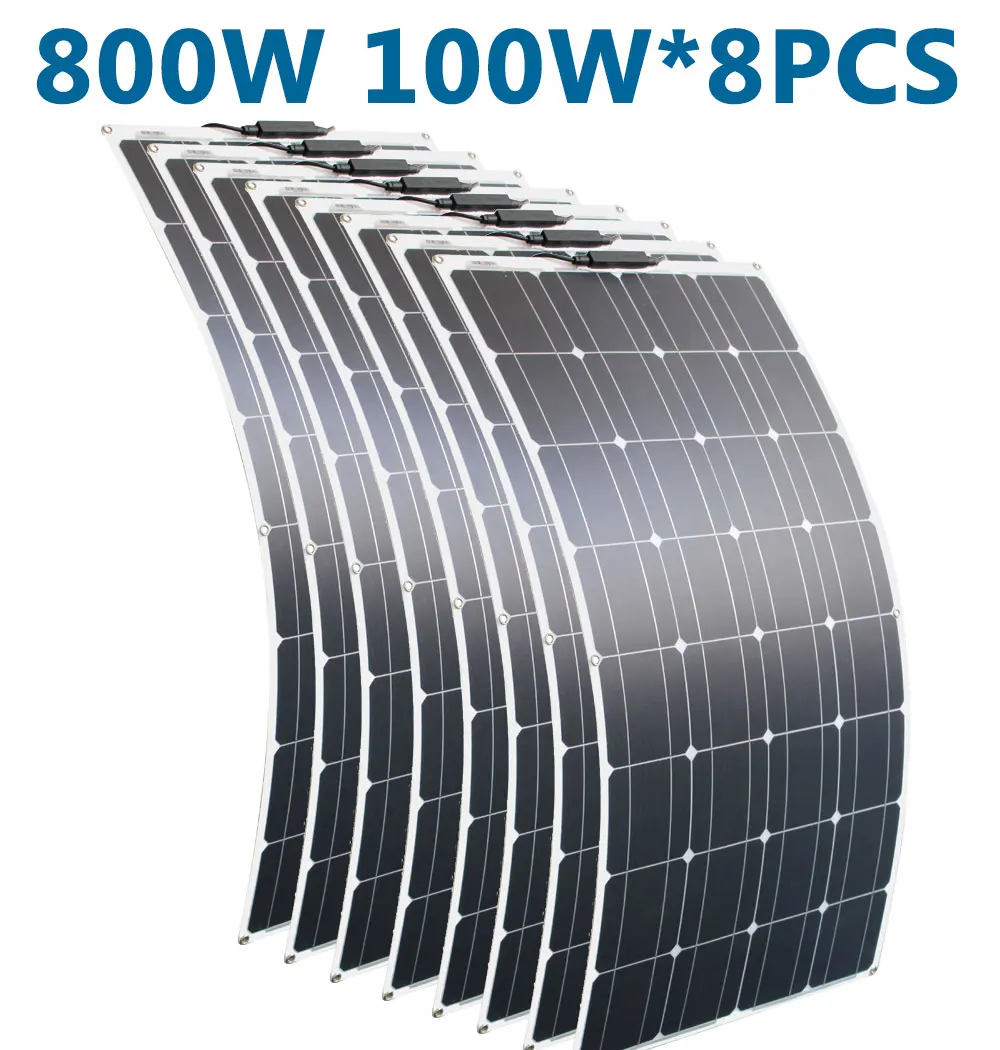

800W Solar Panel= 8 pcs 100W flexible solar panel

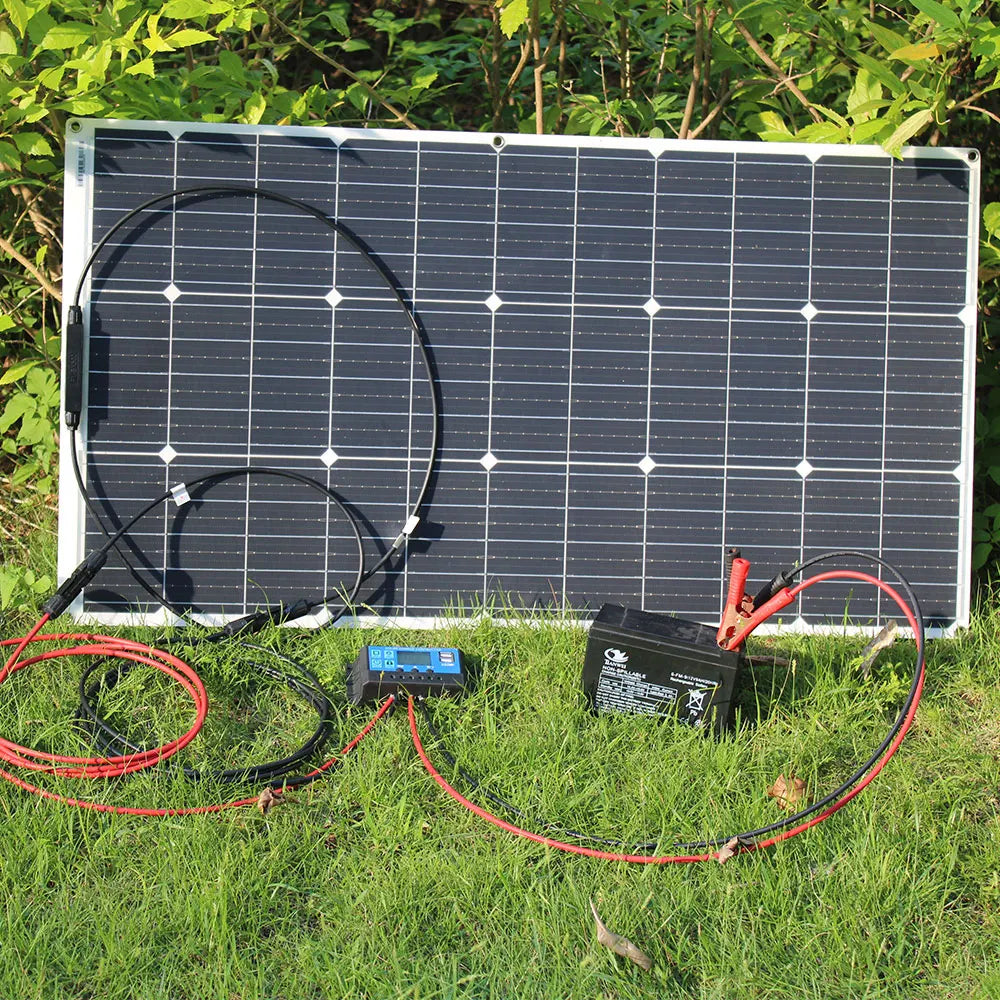

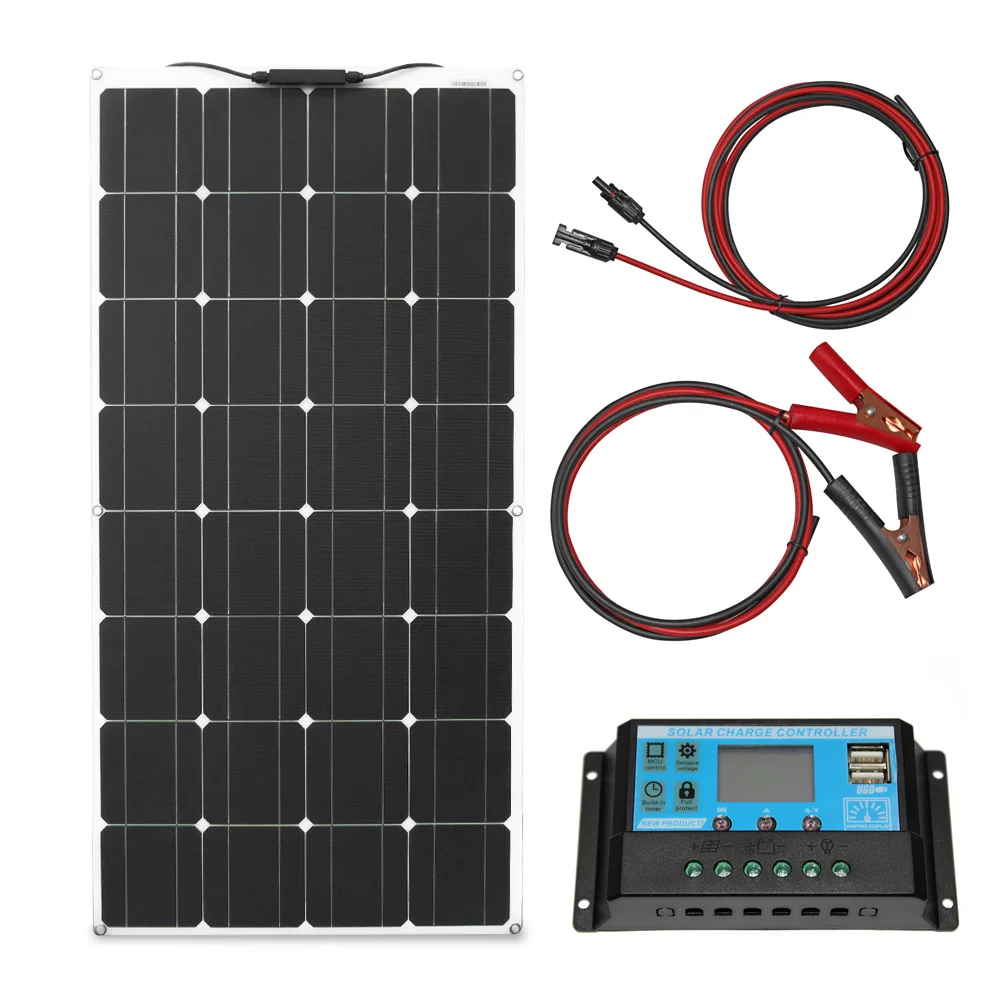

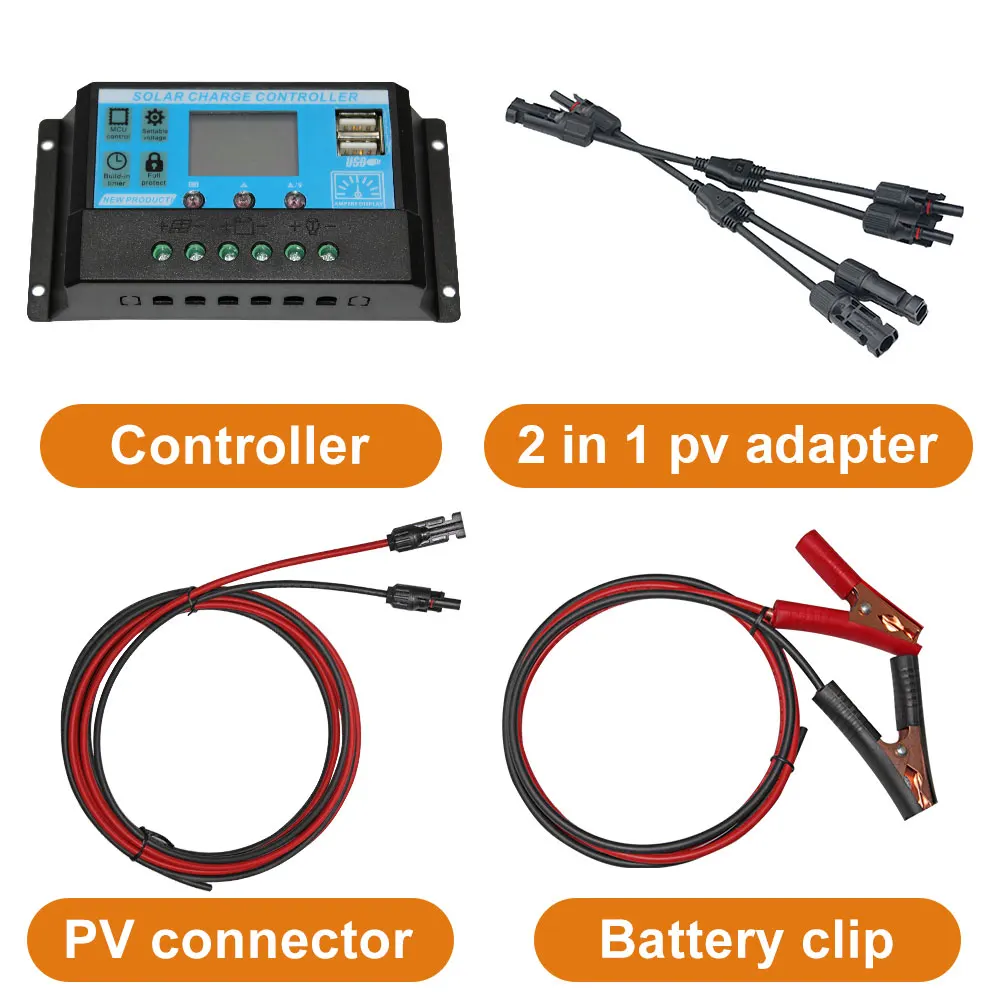

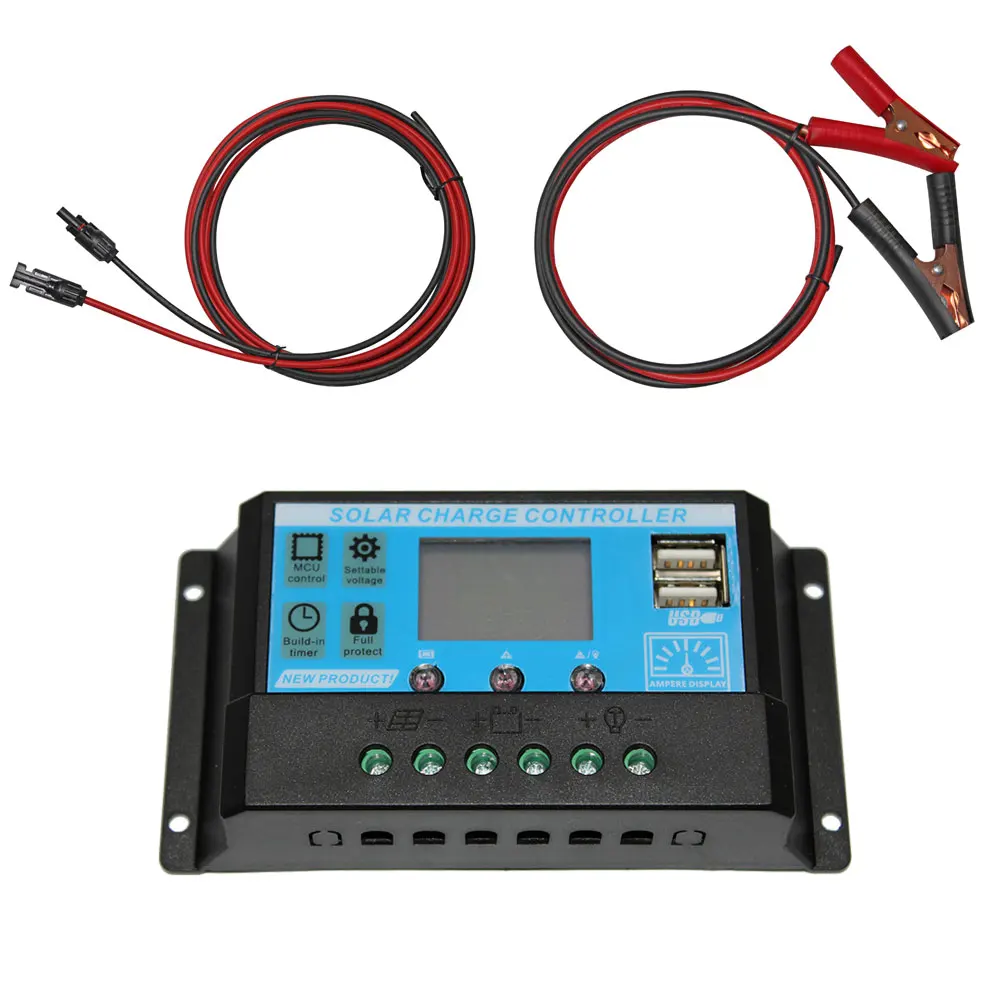

100w solar panel system packing list
1pcs 100w flexible solar panel
1pcs 10A 12V/24V solar panel controller
1set cable with battery clips
1set cable with PV solar connector

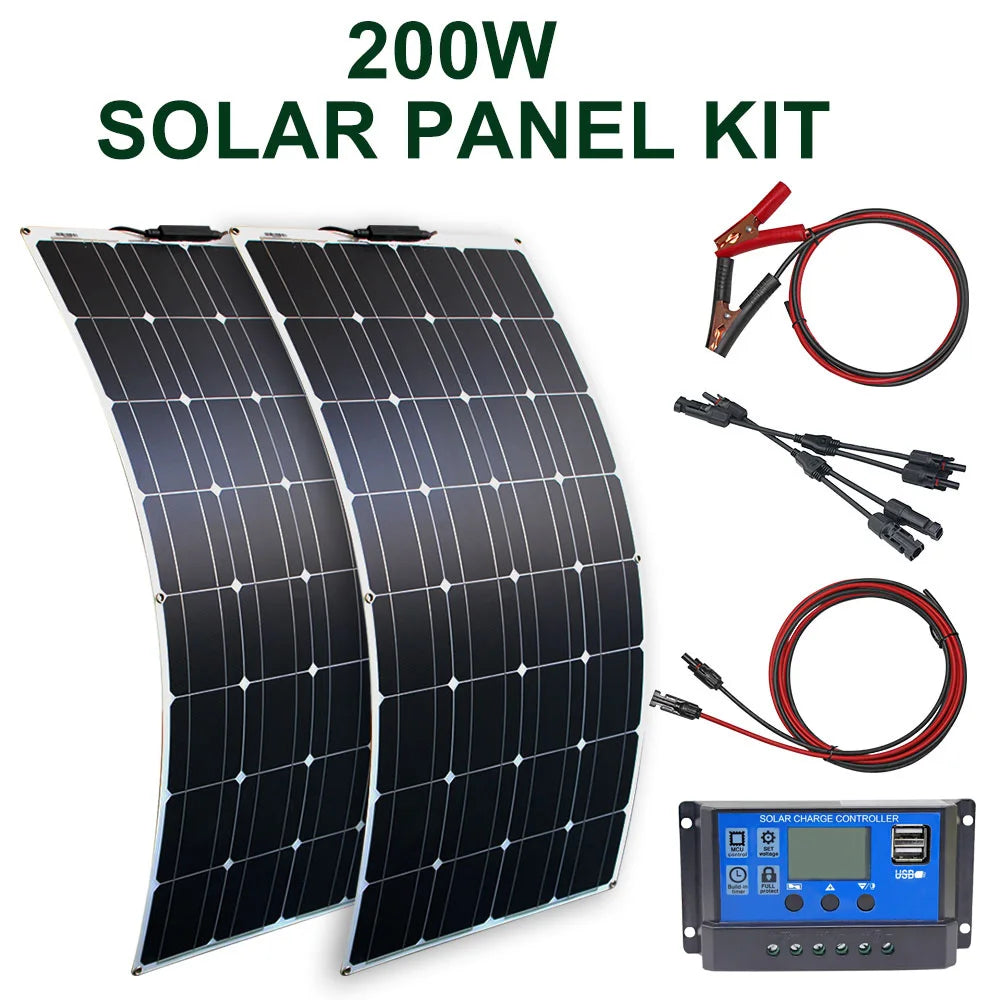

200w solar panel system packing list
2pcs 100w flexible solar panel
1pcs 20A 12V/24V solar panel controller
1set cable with battery clips
1set cable with PV solar connector
1pair 2 in 1 solar adapter

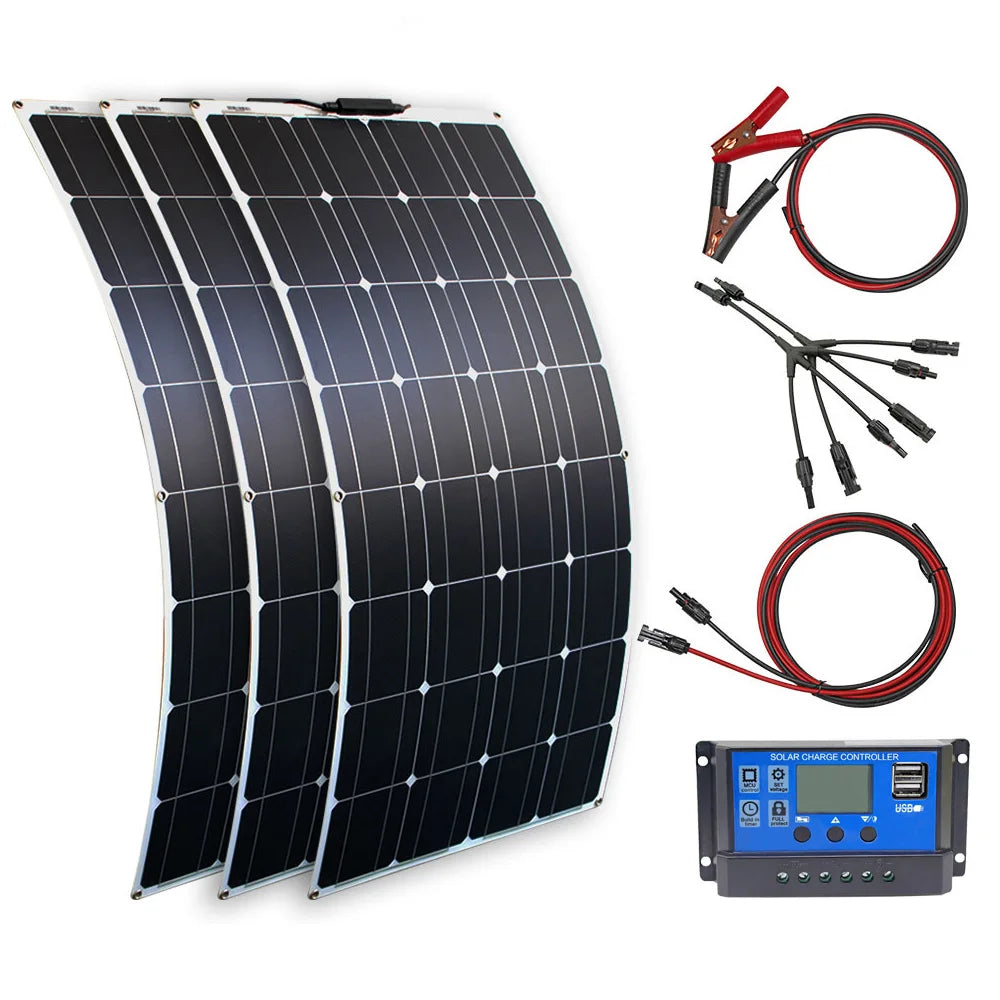

300w solar panel kit packing list
100W 16V solar panel *3
30A 12V/24V solar charger regulator *1
3 meter extend cable *1
1 meter cable with alligator clips *1
3-in-1 PV parallel adapter *1

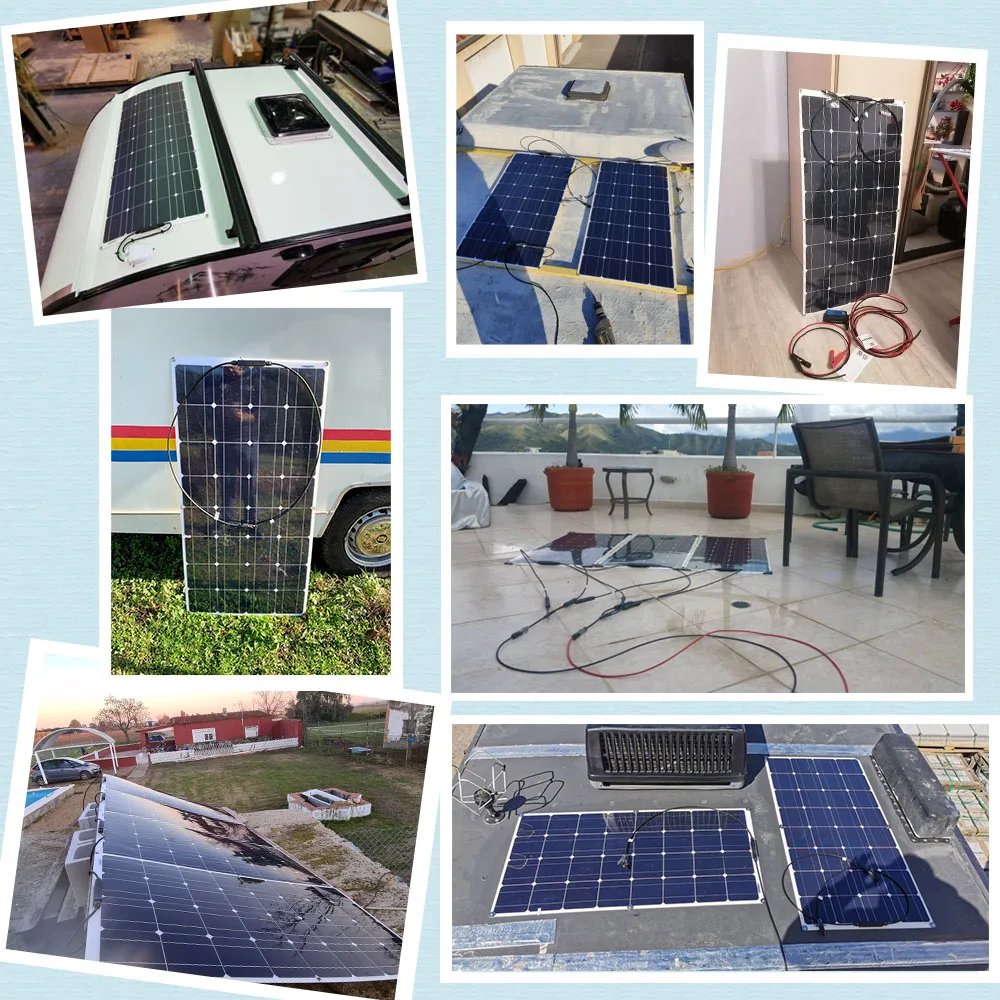

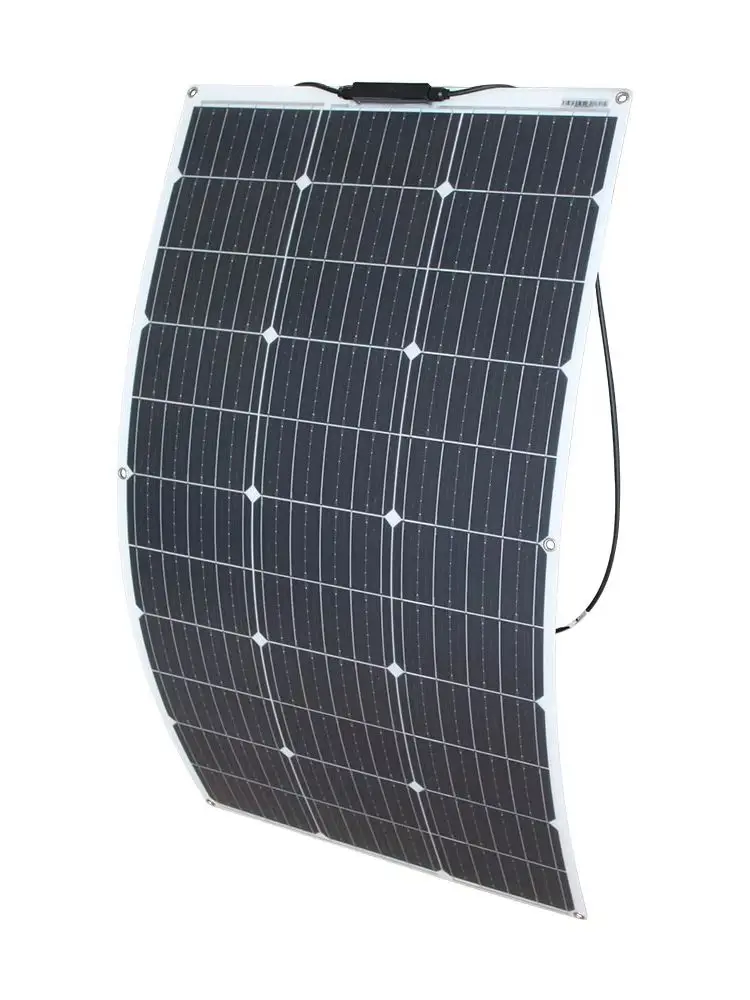

Different with traditional solar panels which are rigid and often enclosed in tempered glass, the 100W Flexible Solar Panel is anything but traditional. The 100W Flexible Solar Panel is thin and capable of flexing up to 30 degrees that can easily be installed on curved surfaces, high efficiency up to 21% with small size for big power output, light weight just 1.6kg(±0.1kg) only a quarter of its traditional 100W glass solar panel. This panel can also be used for various applications, including providing power on a boat, van, golf car, tricycle, tent roof, even though hanged on window to power the lights and other DC applications. The 100W solar panel can charge the 12V or 24V battery or charge the 3.7V, 6V, 9V devices with a regulator.

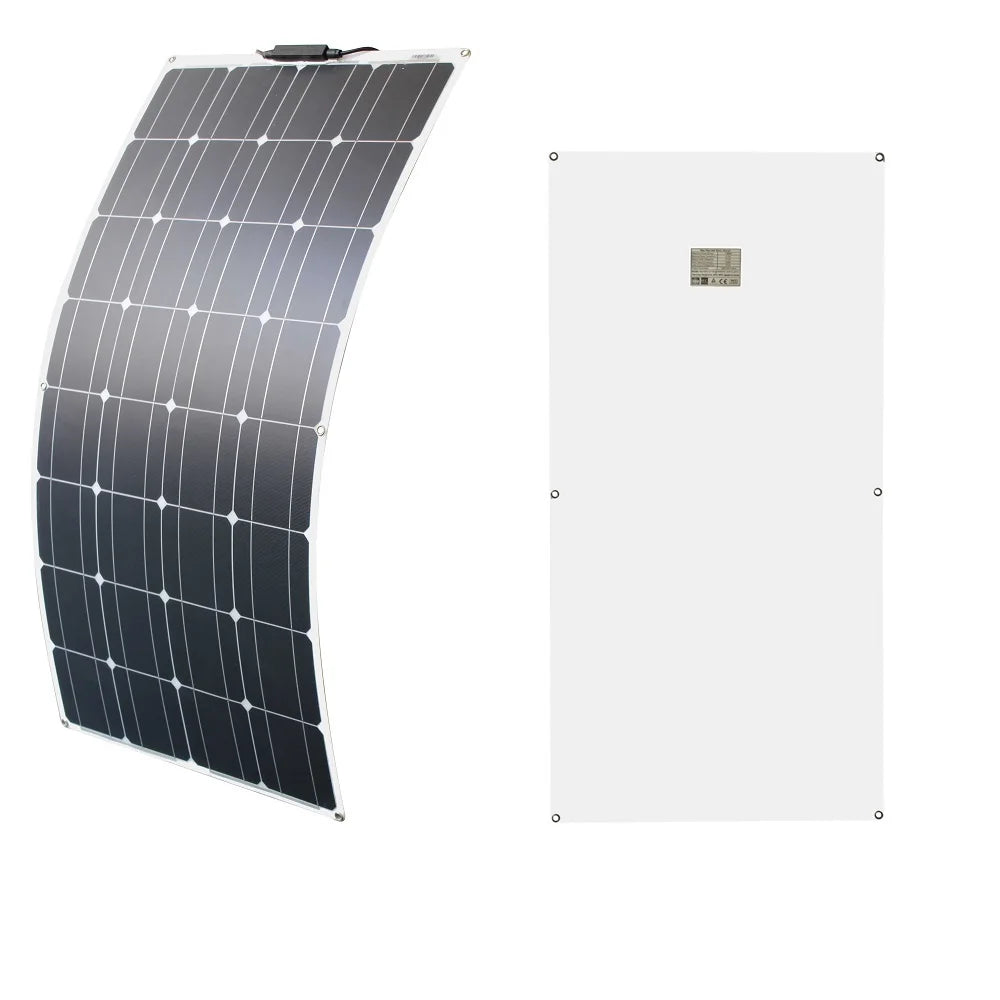

Extremely Flexible

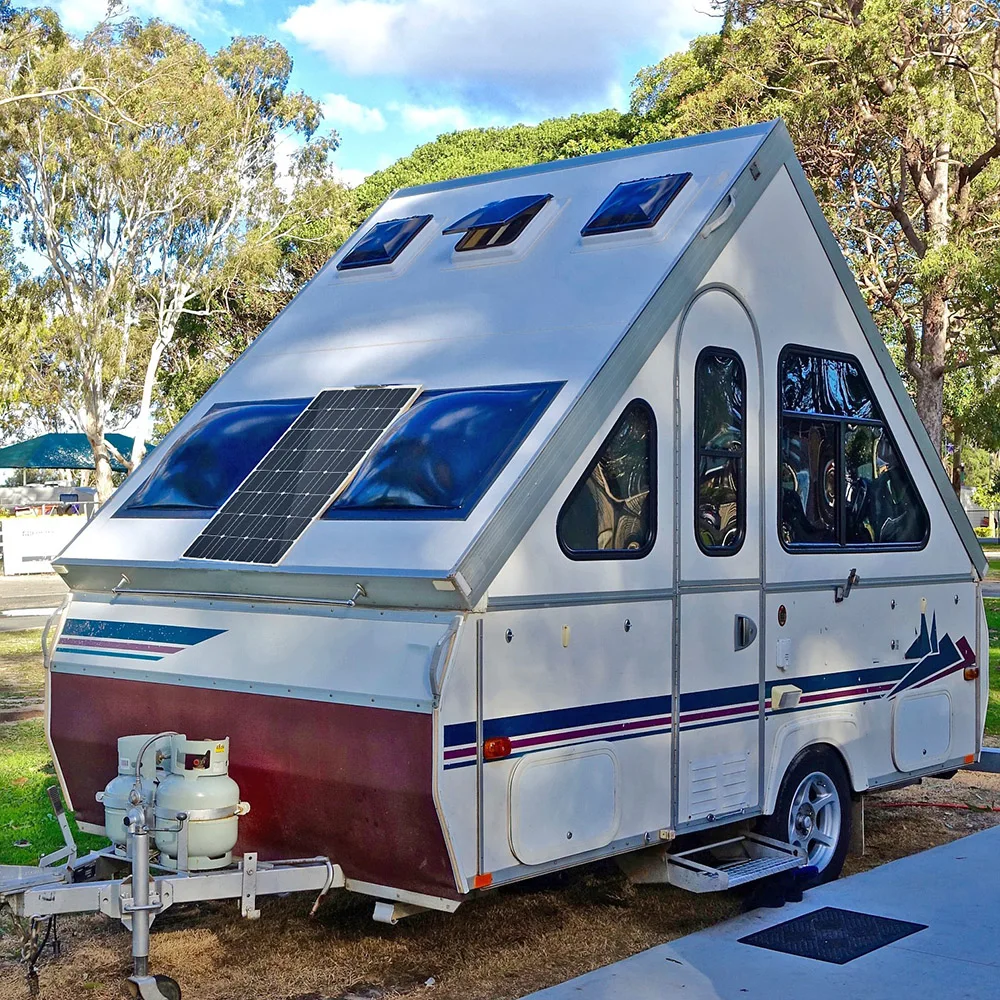

This solar panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream
