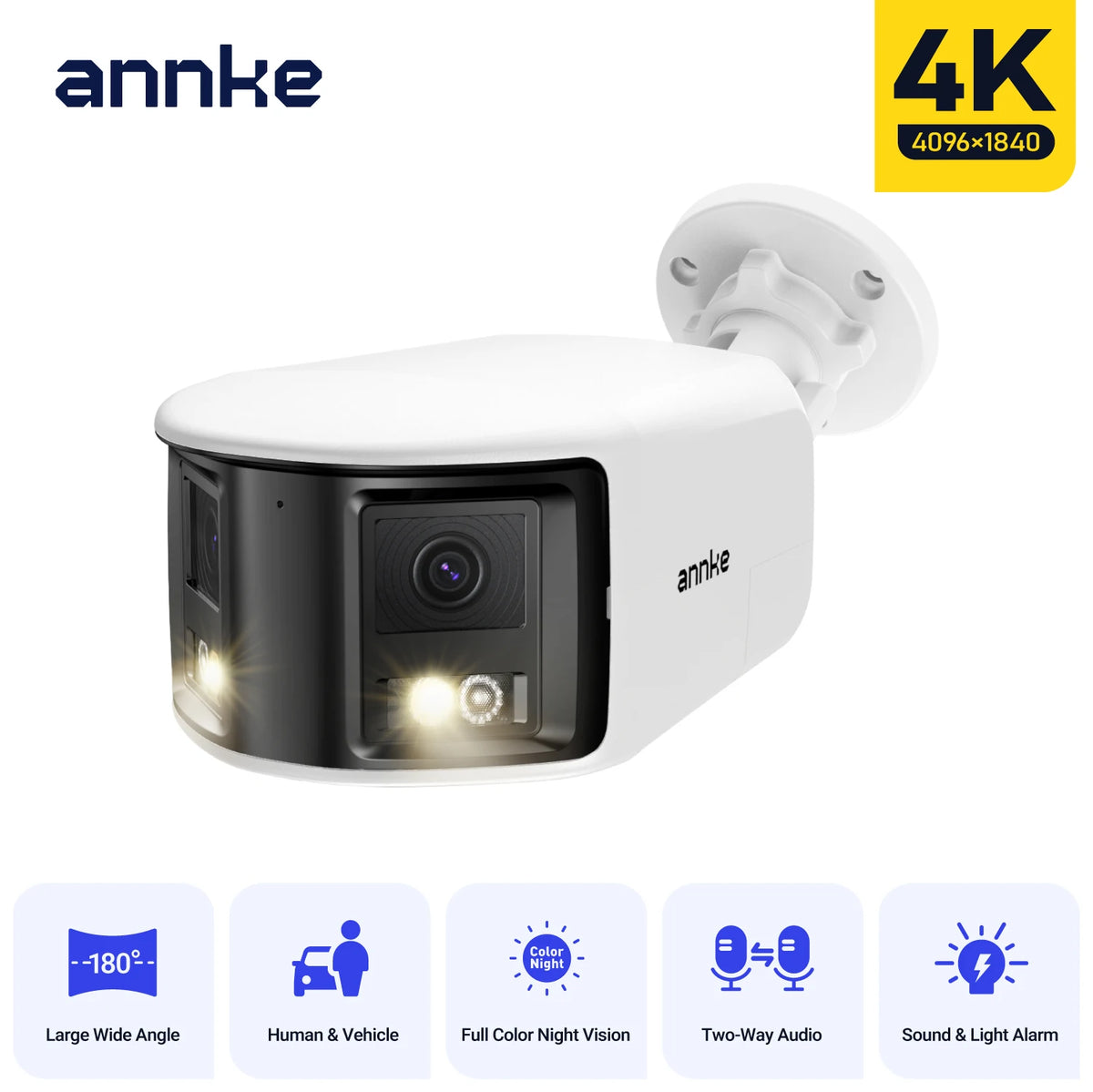

ANNKE 4K Panoramic Dual Lens PoE Security Camera Night Vision
ANNKE 4K Panoramic Dual Lens PoE Security Camera Night Vision
Couldn't load pickup availability
Cover wide outdoor areas with 8MP panoramic surveillance, dual-lens imaging, and a seamless 180° horizontal field of view from one ANNKE PoE security camera.
- Ultra-wide coverage: Dual 2mm lenses capture a 180° horizontal and 77° vertical view at up to 4096 × 1860 resolution, helping monitor backyards, driveways, squares, and campuses.
- Day-and-night visibility: Smart light, white light, and IR illumination reach up to 30m; Smart mode switches from infrared night vision to color when motion is detected.
- Smarter alerts: Motion Detection 2.0 identifies people and vehicles, while line-crossing, area-intrusion, entering, and leaving-area detection support targeted monitoring. A flashing light and audio alarm help deter activity.

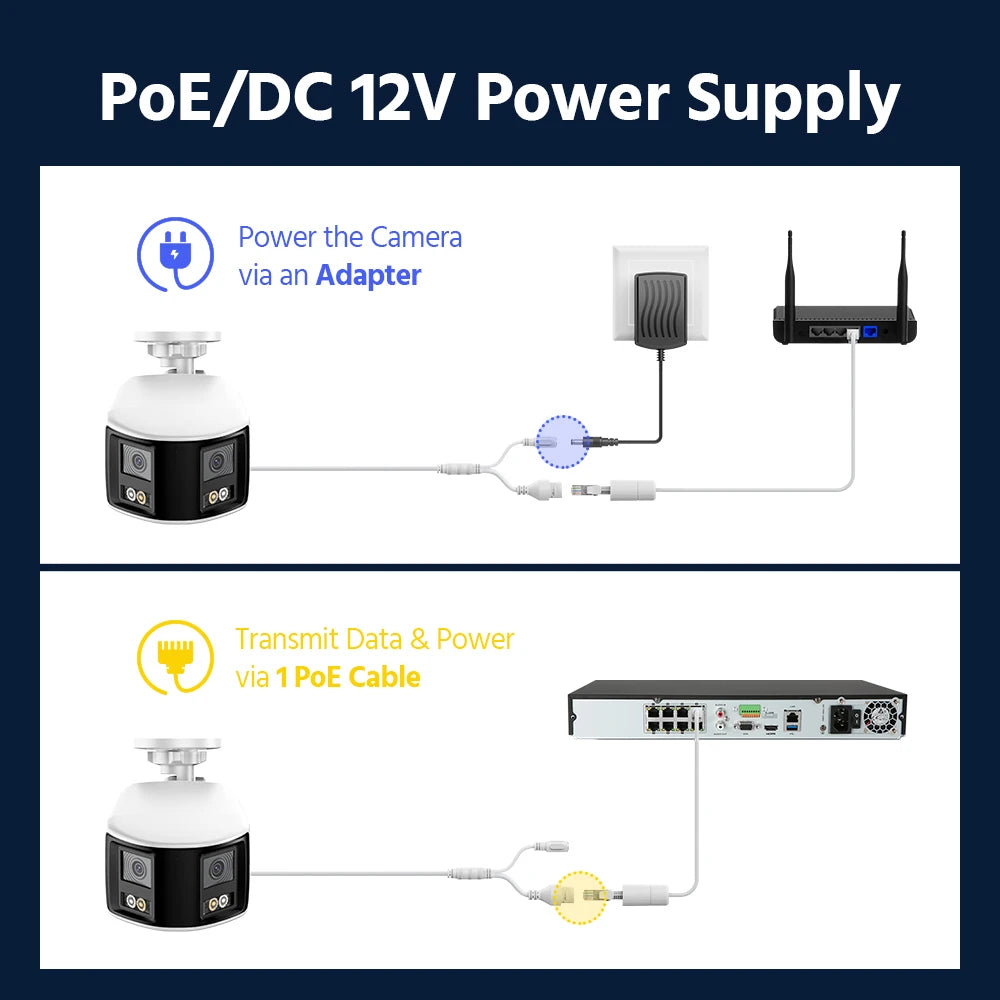

- PoE installation: Use PoE (802.3af) or 12V DC power, H.265+ compression, built-in microphone and speaker for two-way audio, and microSD storage up to 512GB. The IP67 housing supports indoor or outdoor use from -30°C to 60°C. This camera works only with an ANNKE NVR updated to the latest version.
IP Camera | ||
Camera | Image sensor | 2×1/2.4" Progressive Scan CMOS |
Max resolution | 4096 x 1860 | |
Main Stream | 50 Hz: 20 fps (4096 x 1860) | |
Sub Stream | 50 Hz：20 fps（1200 × 536, 960 × 432） | |
Video compression | Main Stream: H.265+/H.265/H.264+/H.264 | |
Video Bit Rate | 32 Kbps to 16 Mbps | |
Built-in Microphone | Built-in Microphone, record with audio | |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC | |
Built-in Speaker | Yes, max. sound pressure: 10 cm: 97 dB | |
Lens | Dual lens: 2 mm | |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) | |
Angle of View | Horizontal FOV: 180°, Vertical FOV: 77° | |
Supplement Light Type | Smart light, white light, IR light | |
Supplement Light Range | White light up to 30 m, IR light up to 30m | |
Motion detection 2.0 | Supoort, include human & vehicle detection | |
Image Parameters Switch | Yes | |
Image Enhancement | BLC, HLC, 3D DNR | |
Wide Dynamic Range | 120dB WDR | |
Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP | |
API | Support Open Network Video Interface protocol, version 19.12 | |
Basic Event | Motion detection (support human and vehicle detection), video tampering, exception detection | |
Audio Alarm | Support(Parameters adjustable,support custom audio, can be triggered from APP) | |
Flashing Alarm | White light, frequency adjustable, can be triggered from APP | |
Region of Interest (ROI) | 1 fixed region for main stream | |
Privacy Mask | 4 programmable polygon privacy masks | |
General Function | Rotate, remote access, IP Address Filter | |
General | Housing | Metal&Plastic, white color |
Operating Power | PoE (802.3af)，max 11.5W, | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
Storage | Built-in micro SD/SDHC/SDXC slot, up to 512 GB | |
Hardware Reset | Yes | |
Operating Temperature | -22 °F – 140 °F /-30 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP67 | |
Dimension (L x W x H) | 103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2") | |
Weight | Approx. 560 g (1.2 lb.) | |
