Black Flexible Solar Panel

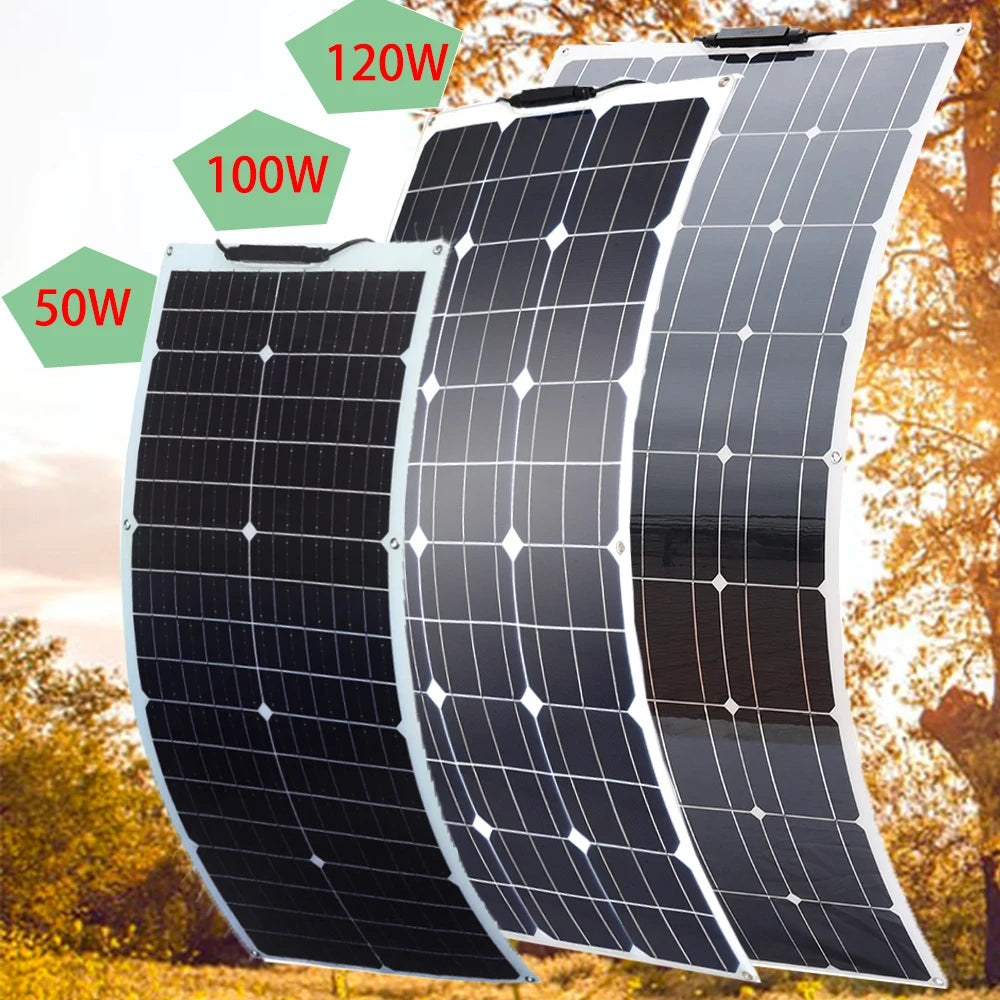

12v solar panels 50w 100w 120w solar system balcony photovoltaic panel for home car boat camper 12v battery charger waterproof

Features:

* Conversion efficiency 21%.

* Generate electricity all day in the sun.

* Can be used for fish tank circulation system, monitoring group, household photovoltaic energy storage,

* Lightweight and easy to install.

* Outdoor photovoltaic power generation portable device.

* Wide range of compatibility: sailboats, yachts, marine applications, motorhomes, expedition vehicles, commercial trucks, caravans, off-grid and telematics sites, etc.

19.8V 50W Specification:

Cell material: Monocrystalline silicon
Pmax (Power at Maximum under STC) :50W
Imp (Current at Max Power, A): 2.52A
Vmp(Voltage at Max Power, V): 19.8V
Voc(Voltage at Open Circuit):21.8V
Isc (Current at Short Circuit,A): 2.65A
Solar Cell Efficiency: 24%

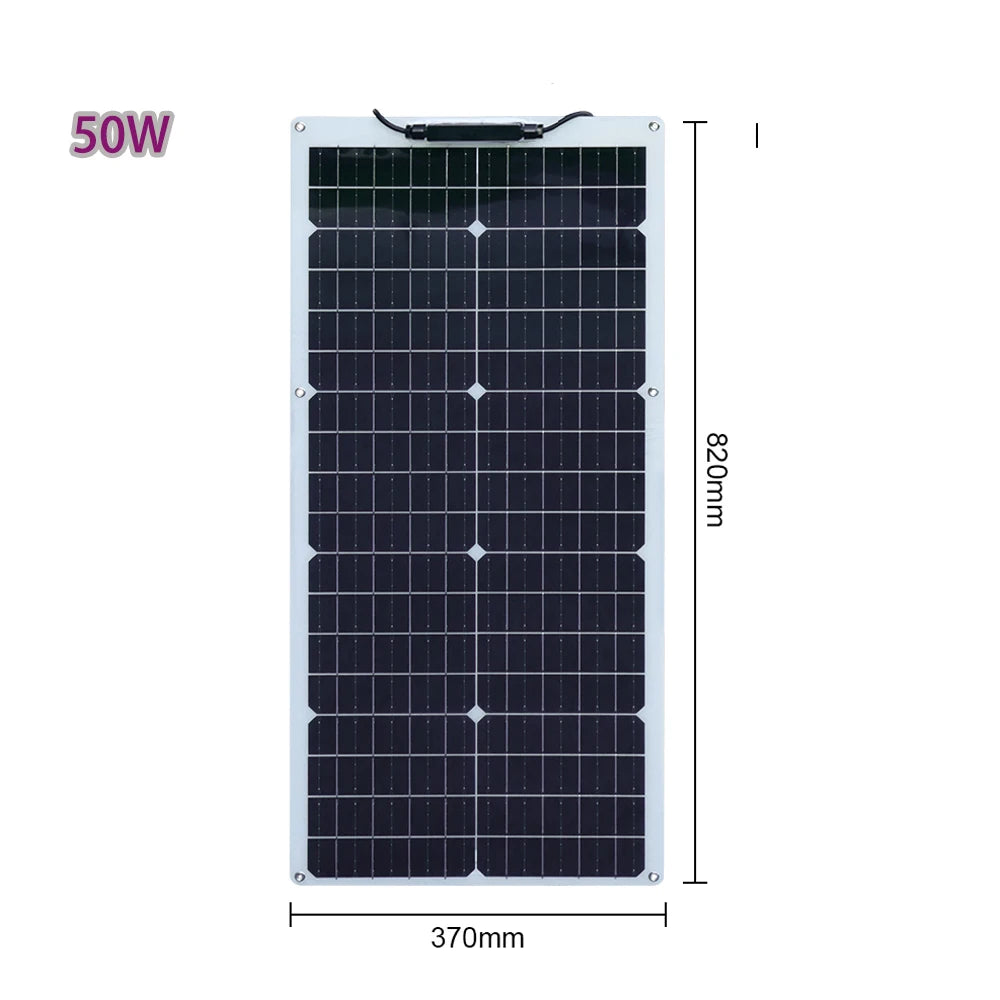

Size of module:820*370*3mm

Net Weight: 2.56Ib (1.1kg)
Length of Cables: 19.7(inches)

18V 50W Specification:

Maximum power(Pmax) 50W

Output tolerance ± 3%

Maximum system voltage 600V DC

Open circuit voltage(Voc) 18V

Short circuit current(Isc) 2.77A

Maximum power voltage(Vmp) 21.6V

Maximum power current(Imp) 2.91A

Cell efficiency 24%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 33pcs

Weight 1500g

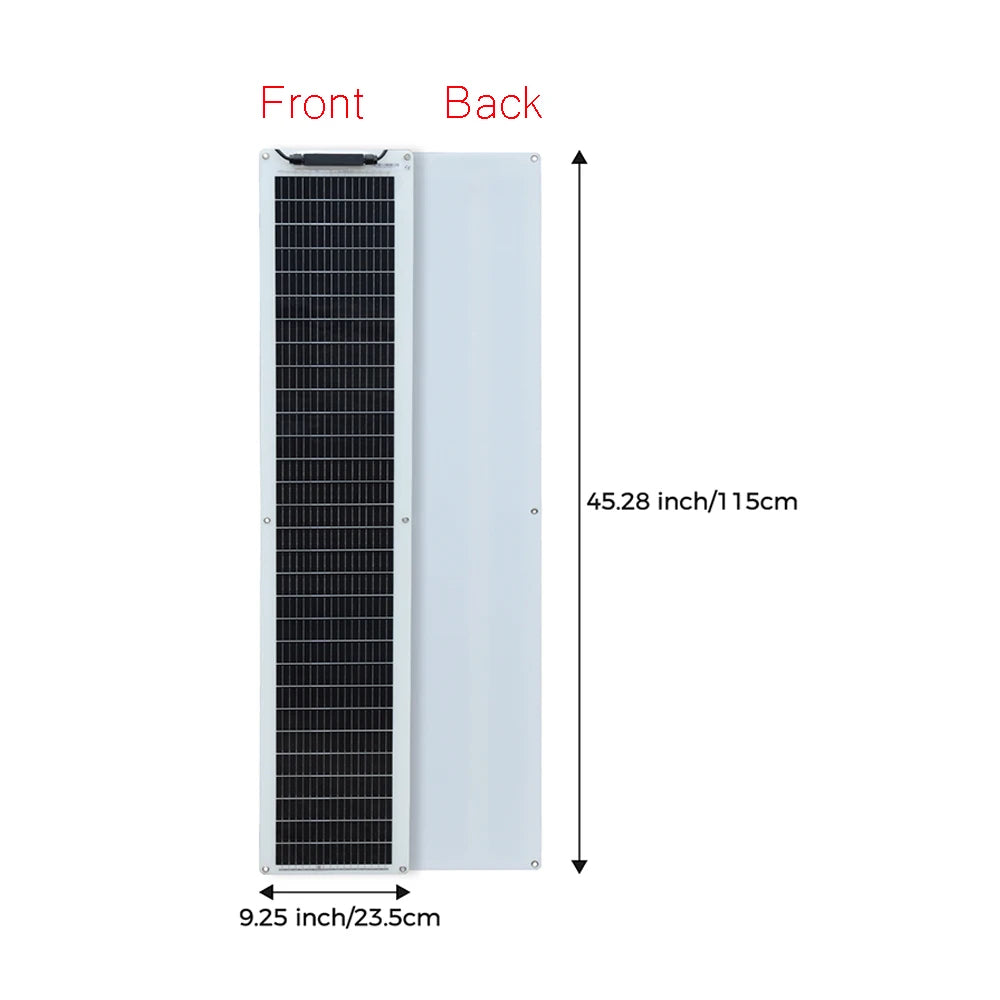

Size 1150*235*3mm,

Color White

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5


1 Etage: Haustier

2 Etage: Eva Film

3 Stock: Solarzelle der hohen Leistungs fähigkeit

4 Stock: Eva Film

5 Etage: Tpt Backs heet

Wasserdichtes Niveau: IP67 (Anschluss kasten)

(Die obigen Daten basieren auf der Labor-Standard-Testumgebung)

Für Feld verbindungen, verwenden minimun no.14awg Kupferdrähte isoliert für ein Minimum 90 ℃

Standard test bedingungen:

Am = 1,5 Bestrahlung stärke = 1000w/m2 Temp.= 25 ℃

(Die Größe wird manuell gemessen und es gibt einen bestimmten Fehler. Kunden, die genaue Größe bitte nicht kaufen wollen, danke)
