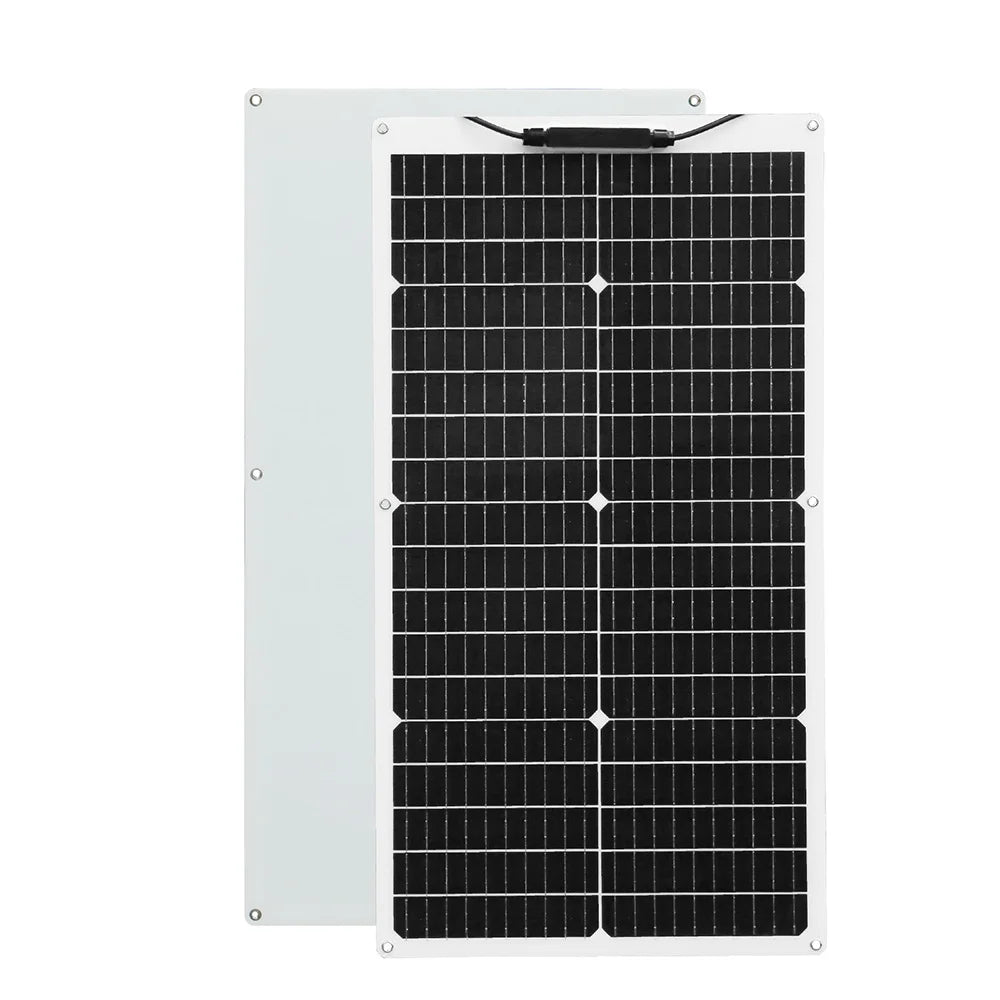

1-2pcs 50W Solar Panel Kit Complete 100W 12V High Efficiency Mono Cell Flexible Solar Panels With Charge Controller PV Cable
1-2pcs 50W Solar Panel Kit Complete 100W 12V High Efficiency Mono Cell Flexible Solar Panels With Charge Controller PV Cable
Couldn't load pickup availability
SPECIFICATIONS
50 Watts Solar Panel: Placa Solar
Brand Name: xinpuguang
Cell efficiency: 24%

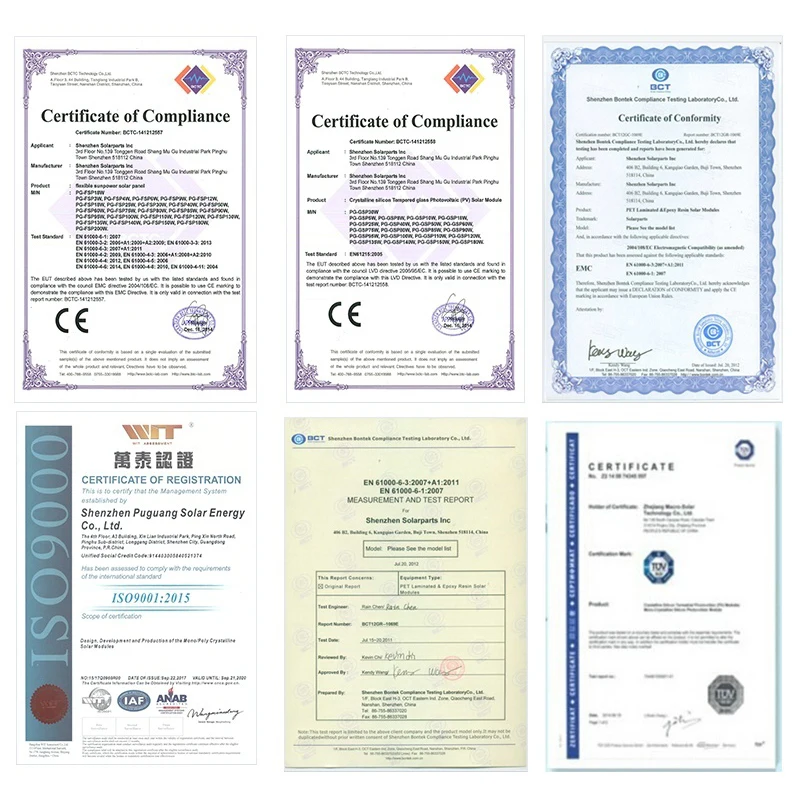

Certification: CE,FCC,RoHS,weee

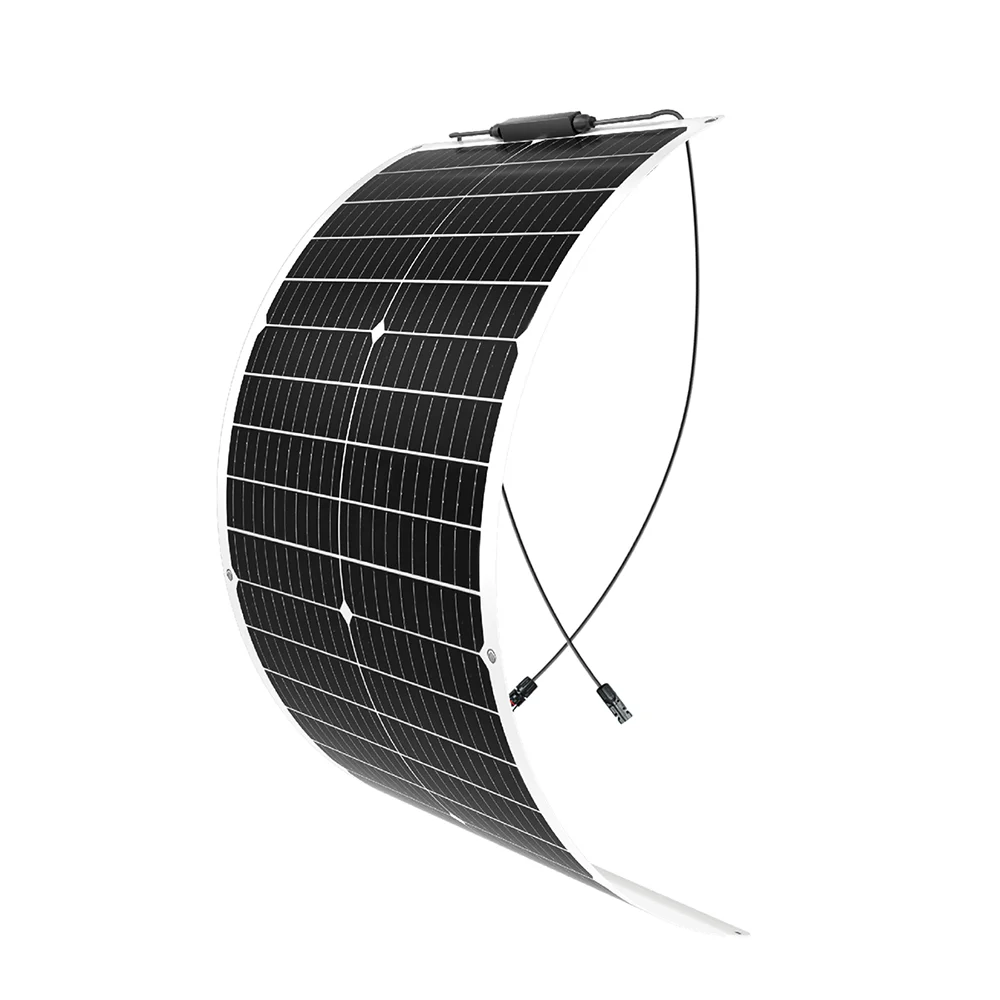

Flexible Solar Panel: Yes
Foldable Solar Panel: No
High-concerned chemical: none
Material: Monocrystalline Silicon
Max. Power: 50Watt / 100Watt
Maximum power current(Imp): 3.33A
Maximum power voltage(Vmp): 19.8V
Maximum system voltage: 700V DC
Model Number: 50W Solar Panel Flexible
Module Efficien: 24%
Nominal Capacity: 50Watt
Number of Cells: 32 Pieces
Number of Panels: 1
Open circuit voltage(Voc): 16.5V
Origin: Mainland China
Panel Solar: Solar Panel Flexible
Panneau Solaire Kit Complet: Panel Solar Para Casa
Placa Solar: Paneles Solares
Placas Solares: Painel Solar
Rigid Solar Panel: No
Short circuit current(Isc): 3.03 A

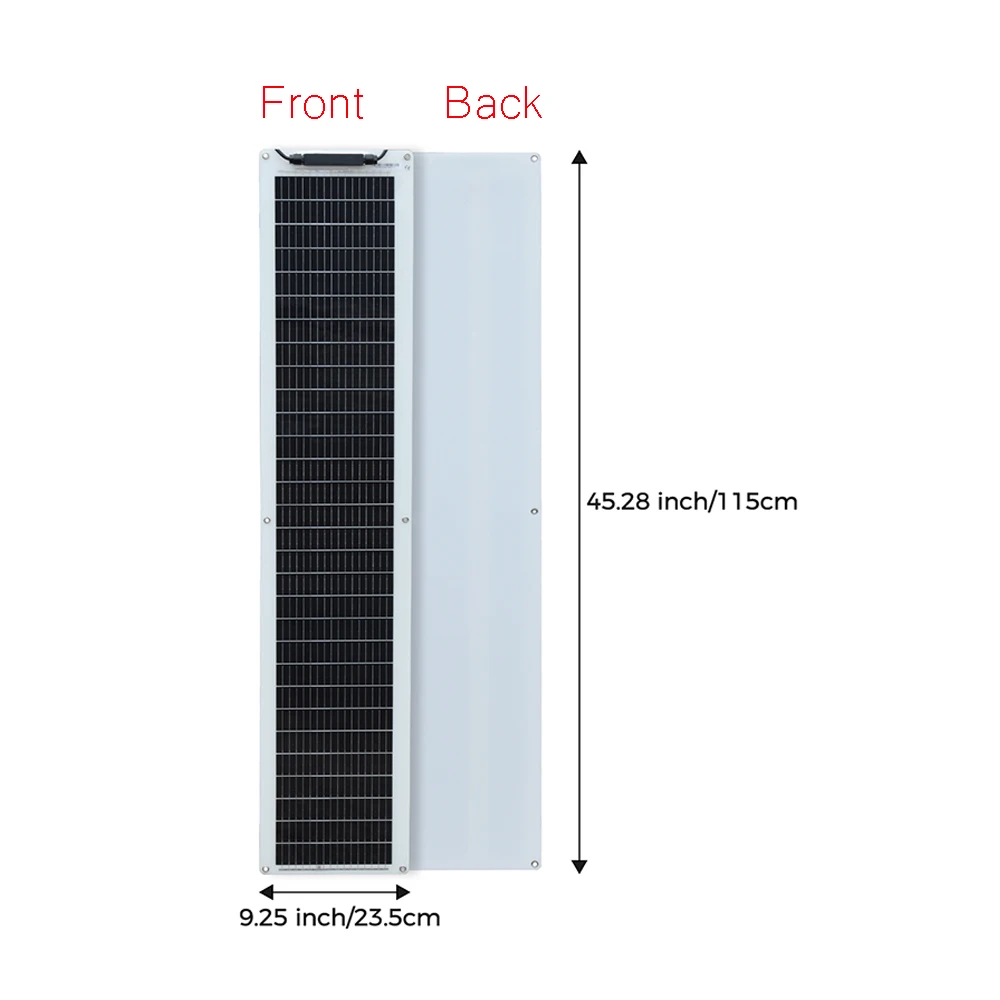

Size: 1150*235*3mm / 820*377*3mm
Solar Panel 12V: Solar Panel 50W 100W
Solar Panels: Panel Solar 16V
Solar System: Solar Panel Kit For Home
Type: Solar Panel

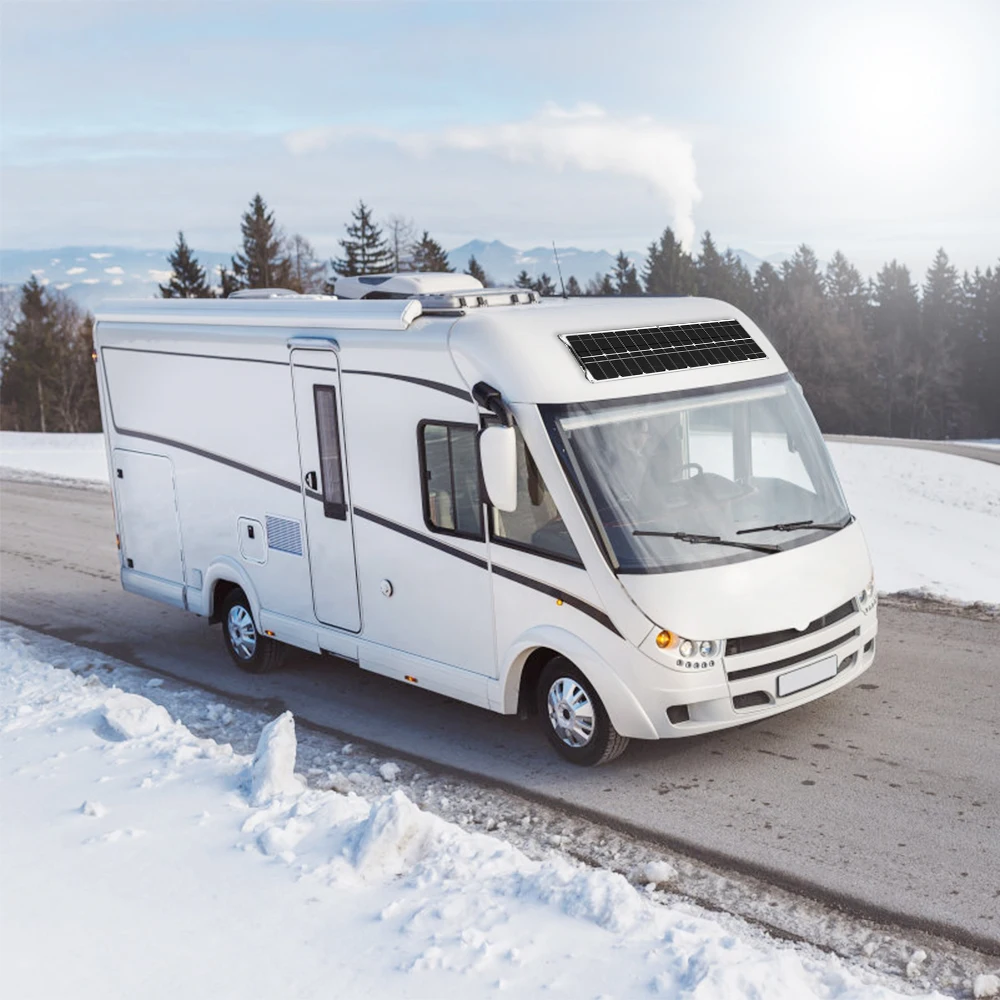

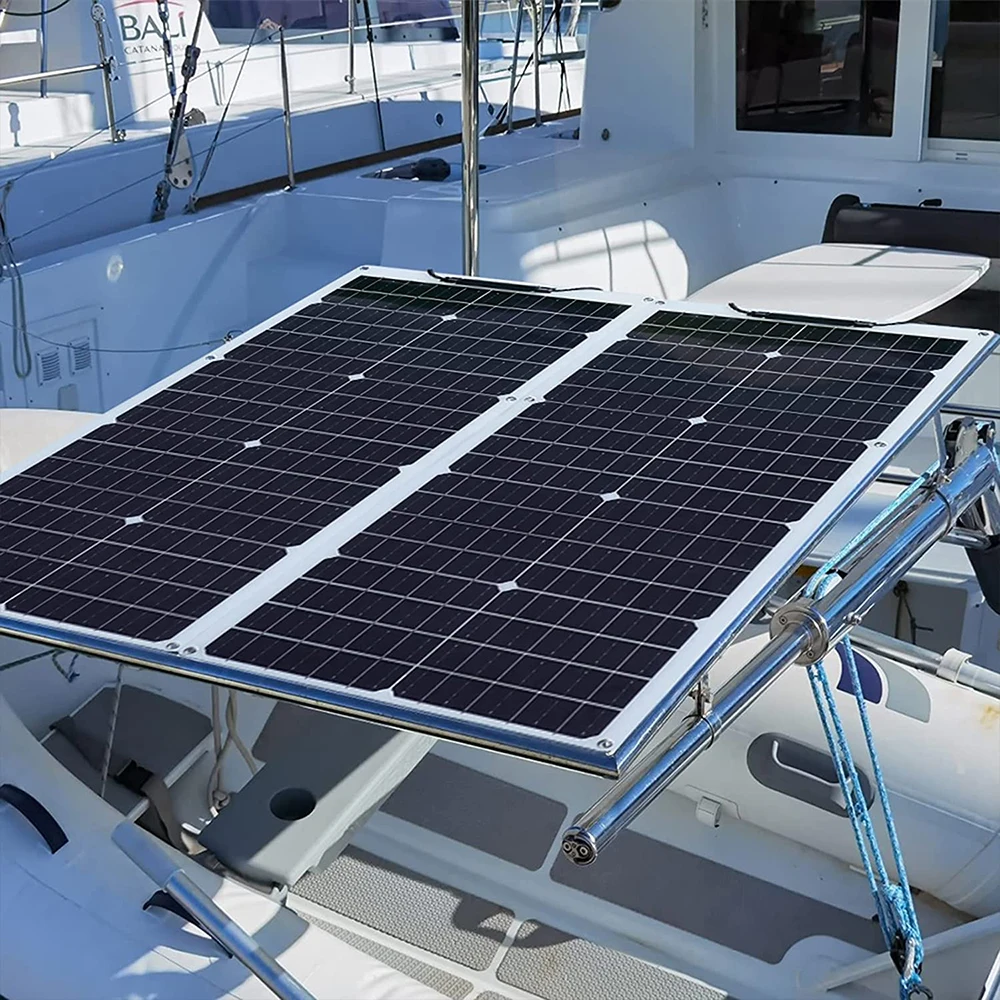

Used For: Camping Home Roof Car RV Boat
is_customized: Yes
6
1-2pcs 50W Solar Panel 100W Solar Panel Kit Complete 12V 16V 50 Watt Mono Flexible Solar Panels 24% High Efficiency Cell+Charging Controller+PV Cable

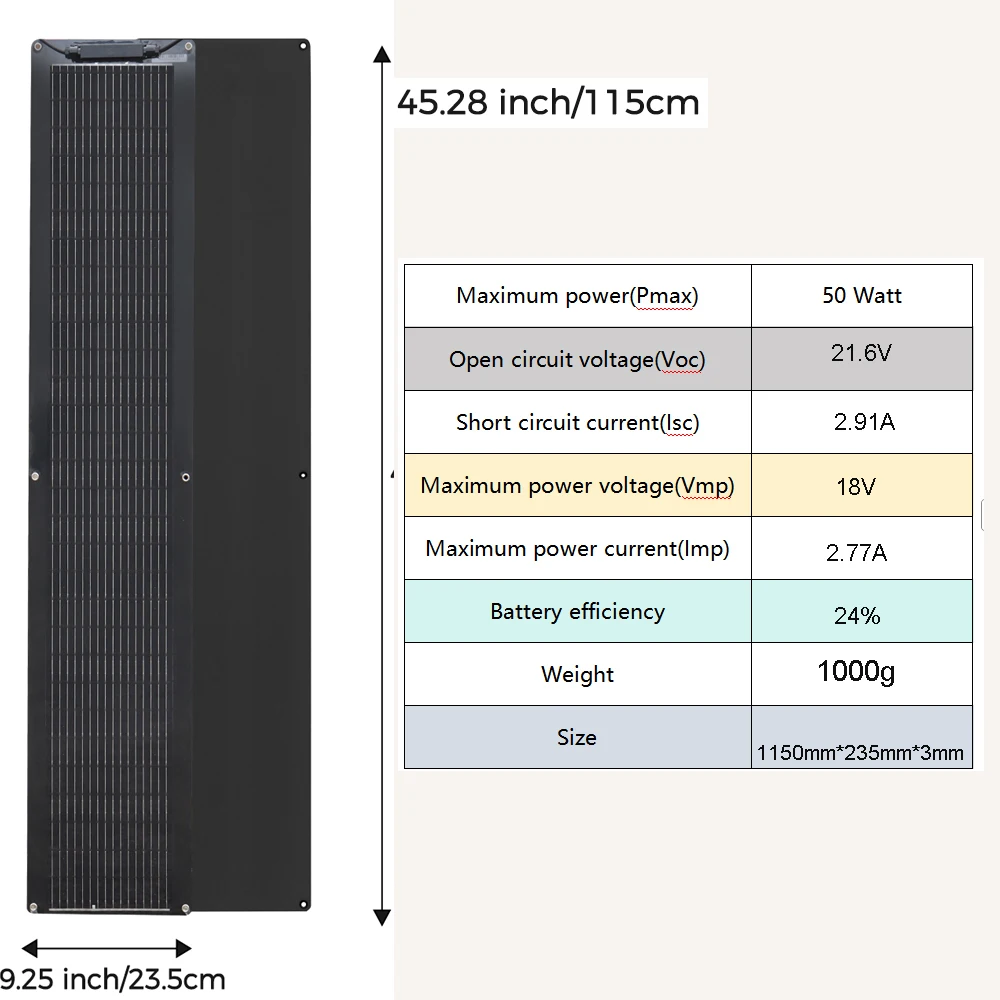

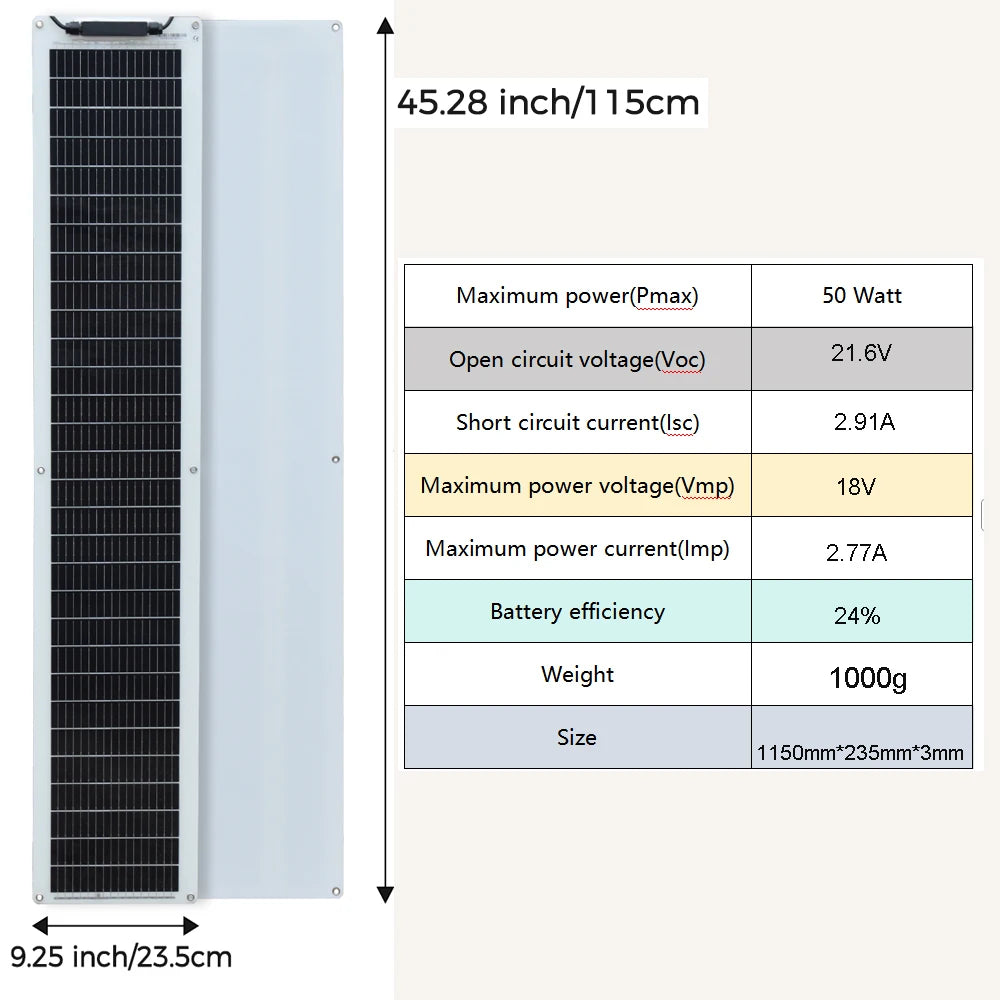

16.5V Solar Panel Specification
Maximum power(Pmax) 50W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 18V
Short circuit current(Isc) 2.77 A
Maximum power voltage(Vmp) 21.6V
Maximum power current(Imp) 2.91A
Cell efficiency 24%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 1000g

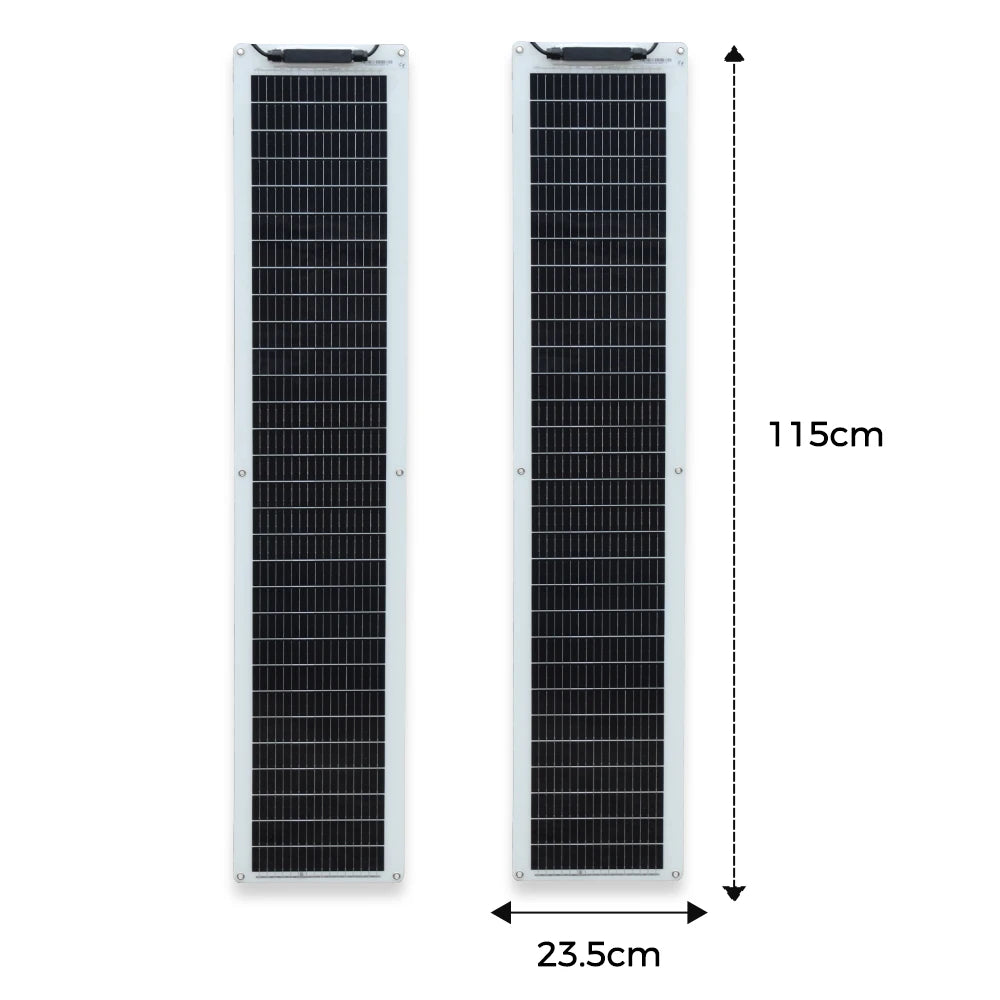

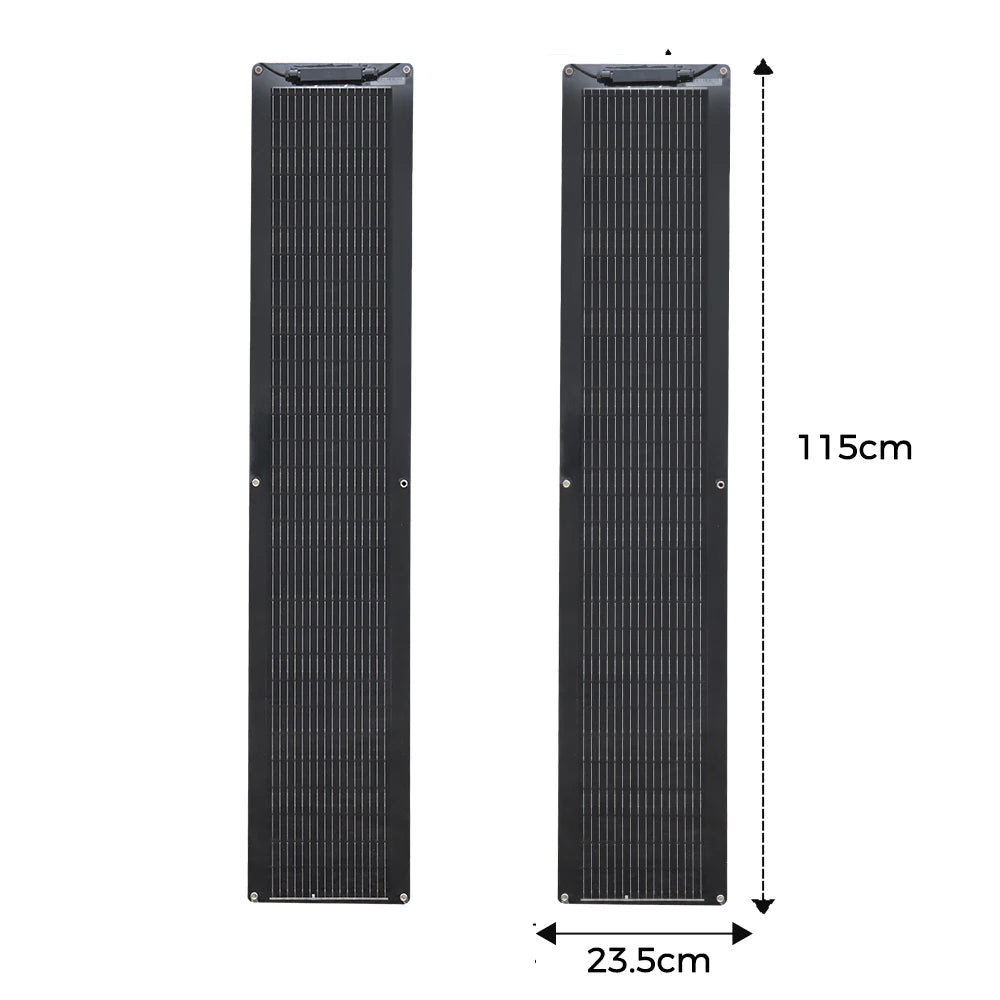

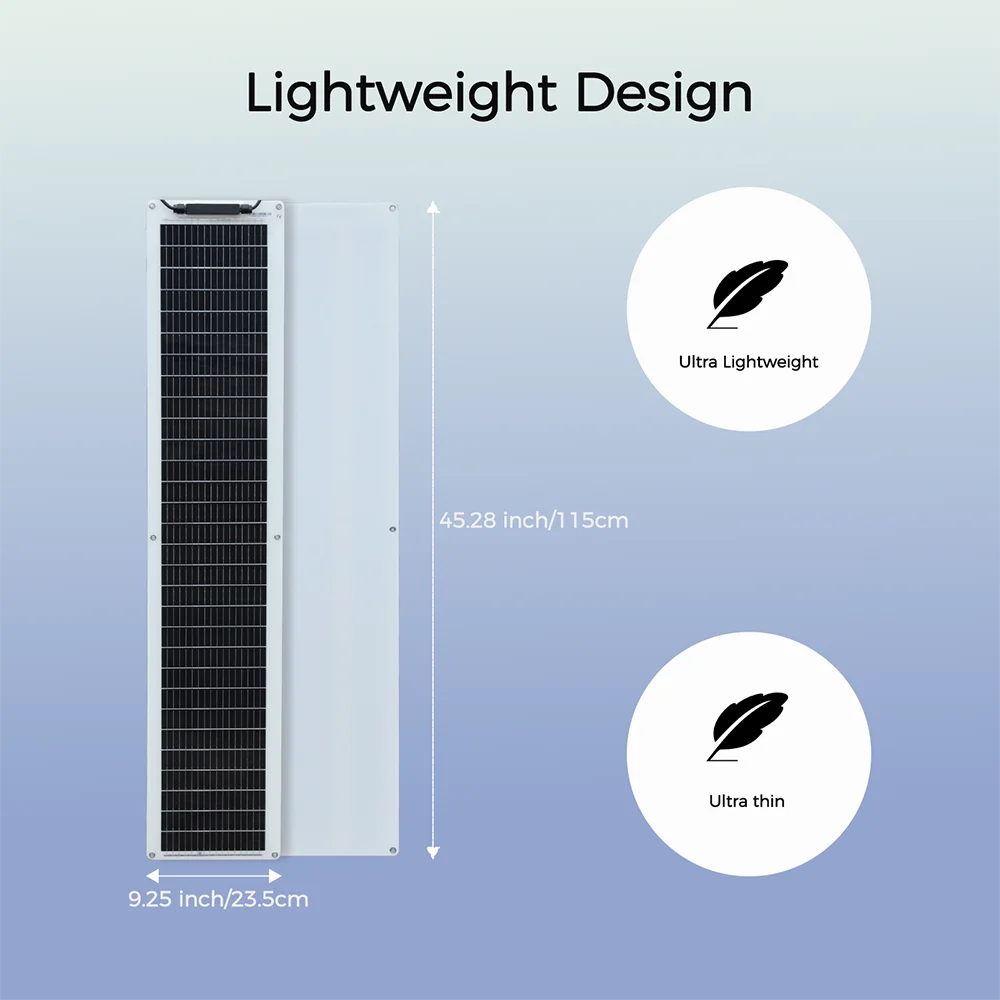

Size 1150*235*3MM
Color White/Black
Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
Features:

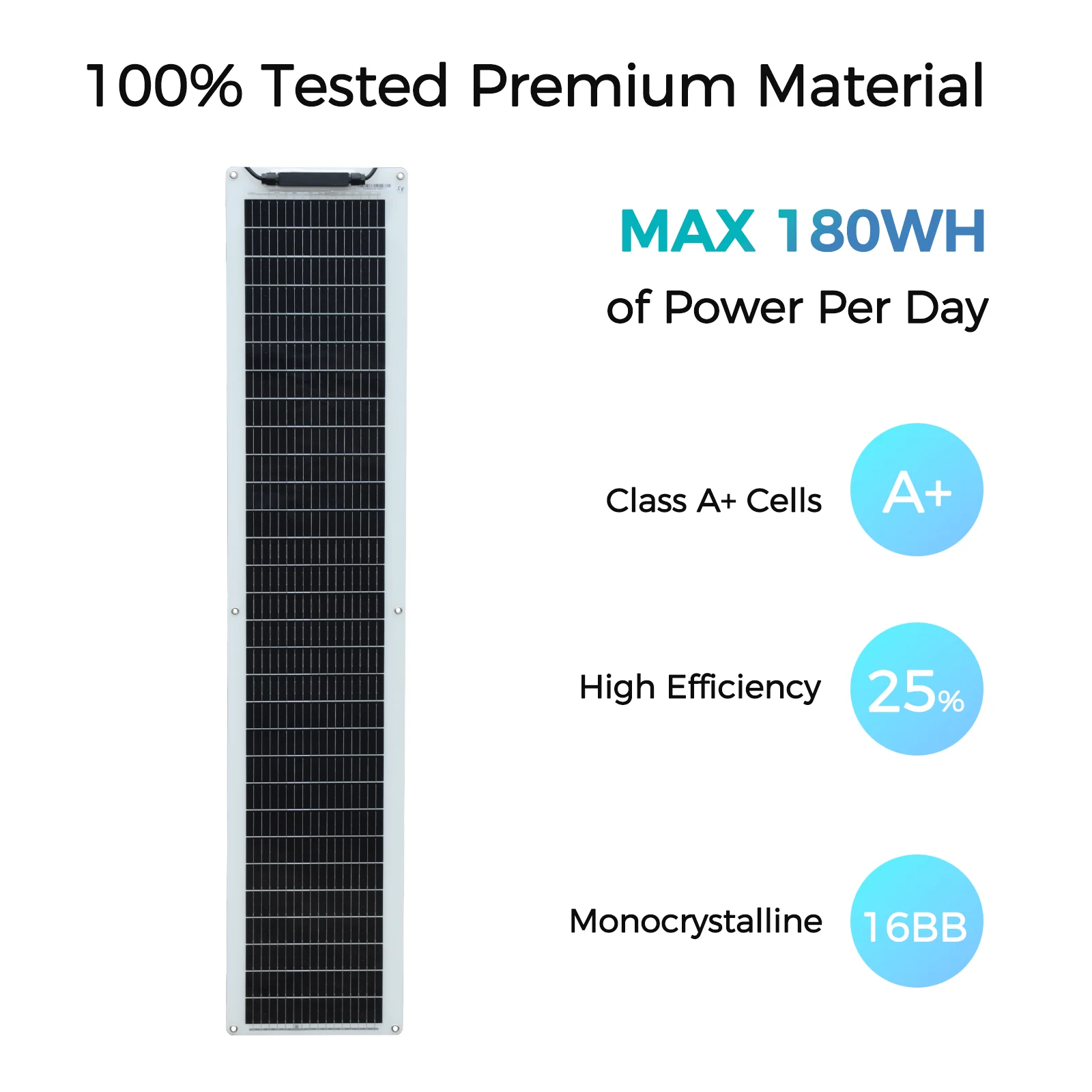

a.Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.

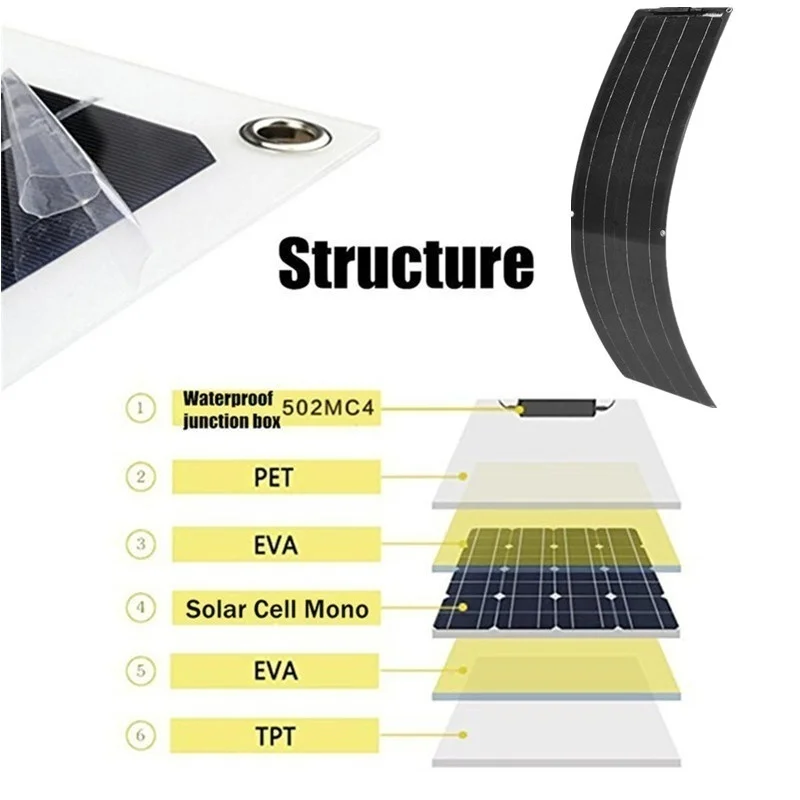

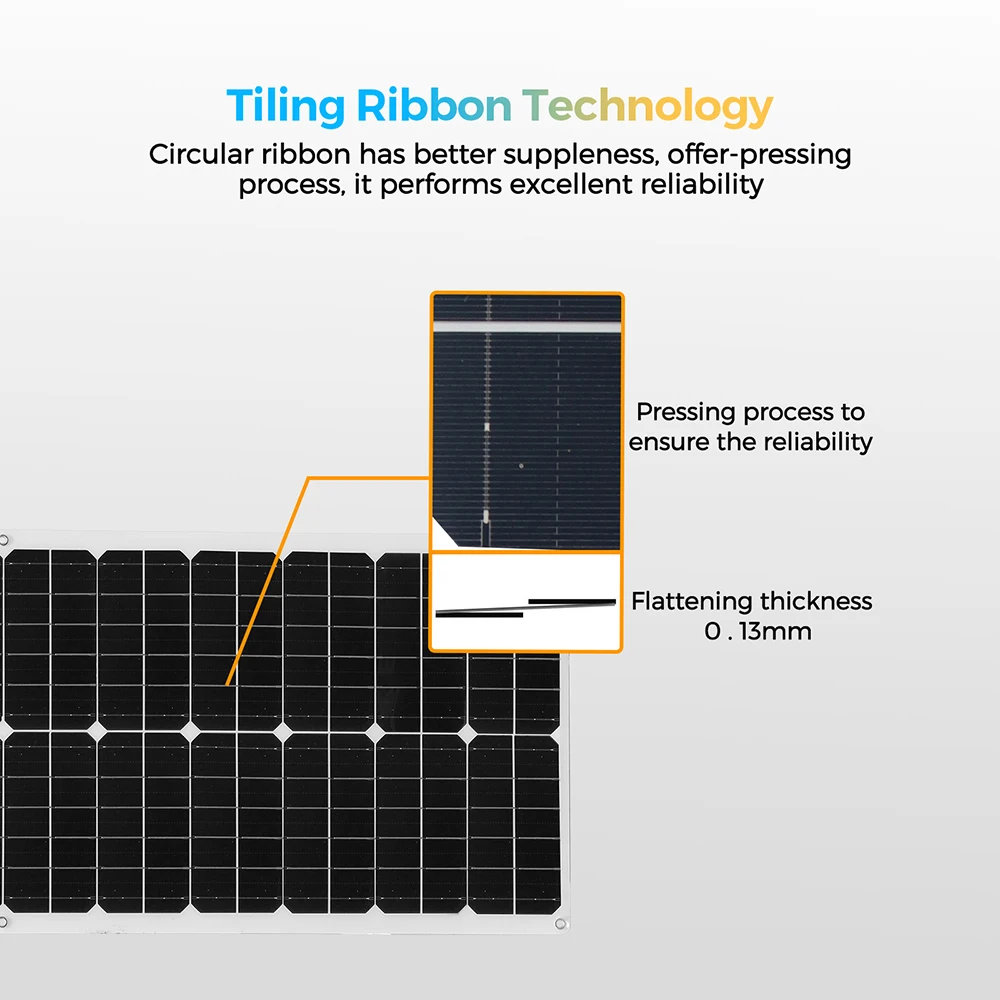

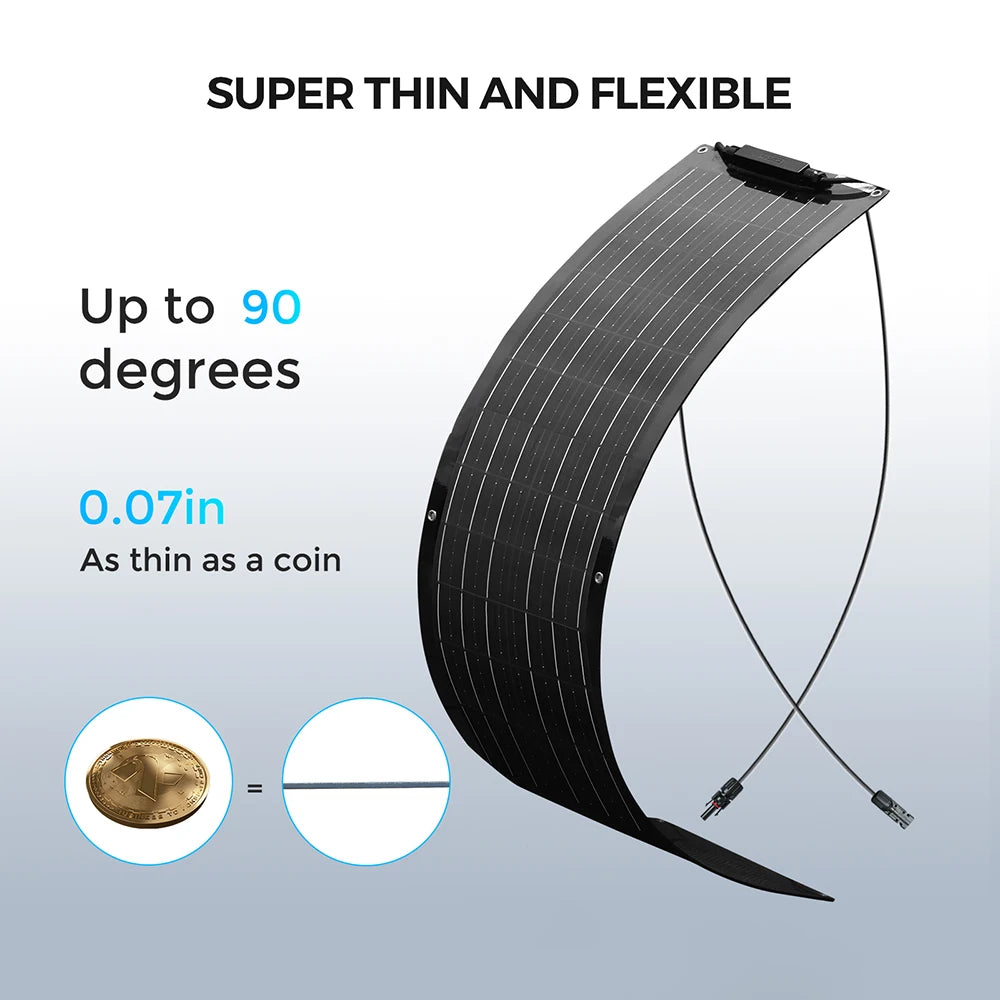

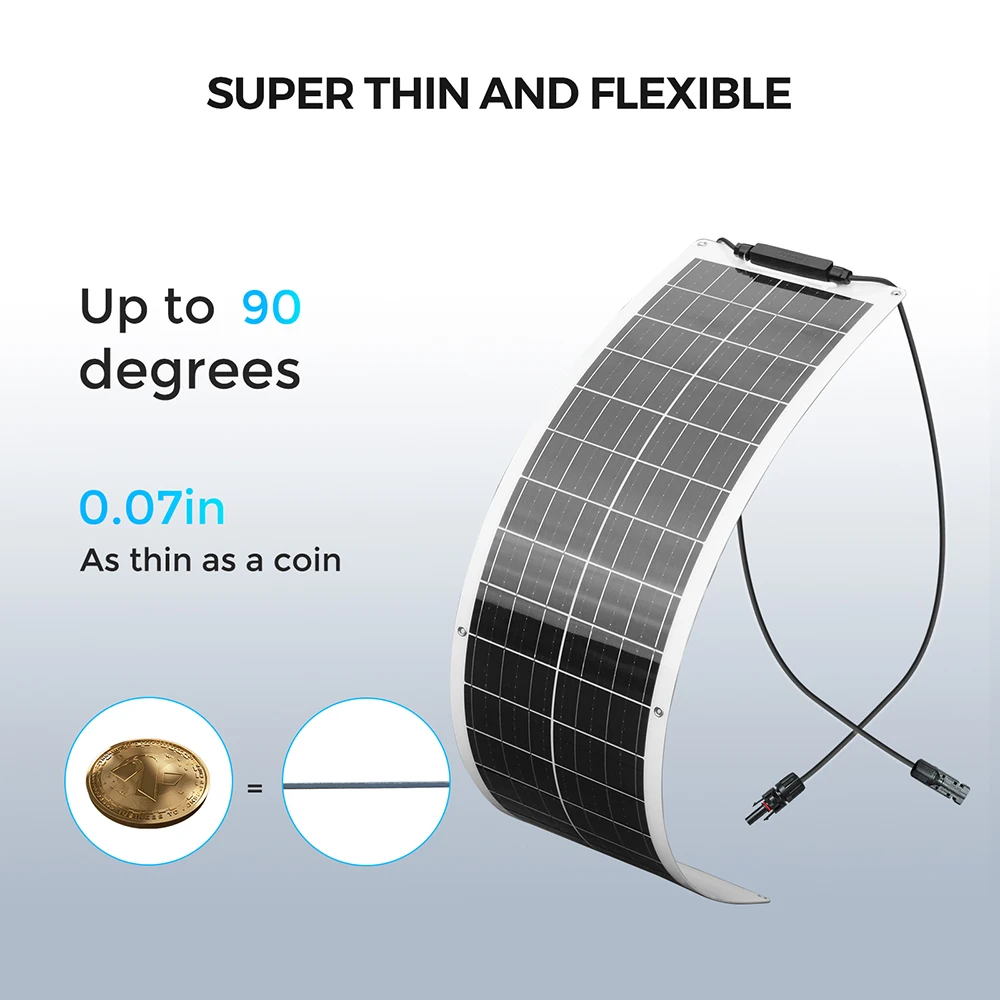

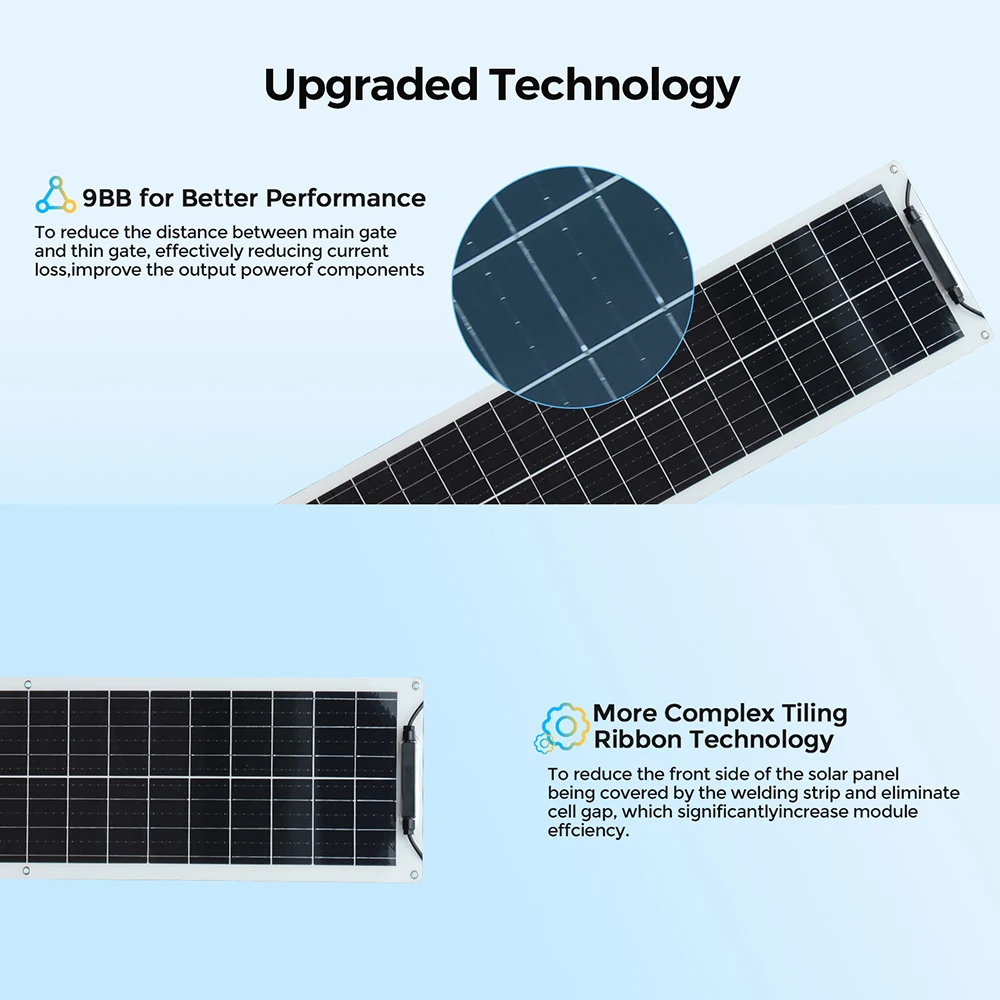

b. Using the latest component packaging technology, thinner, lighter, softer and longer life.
c.The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.
d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

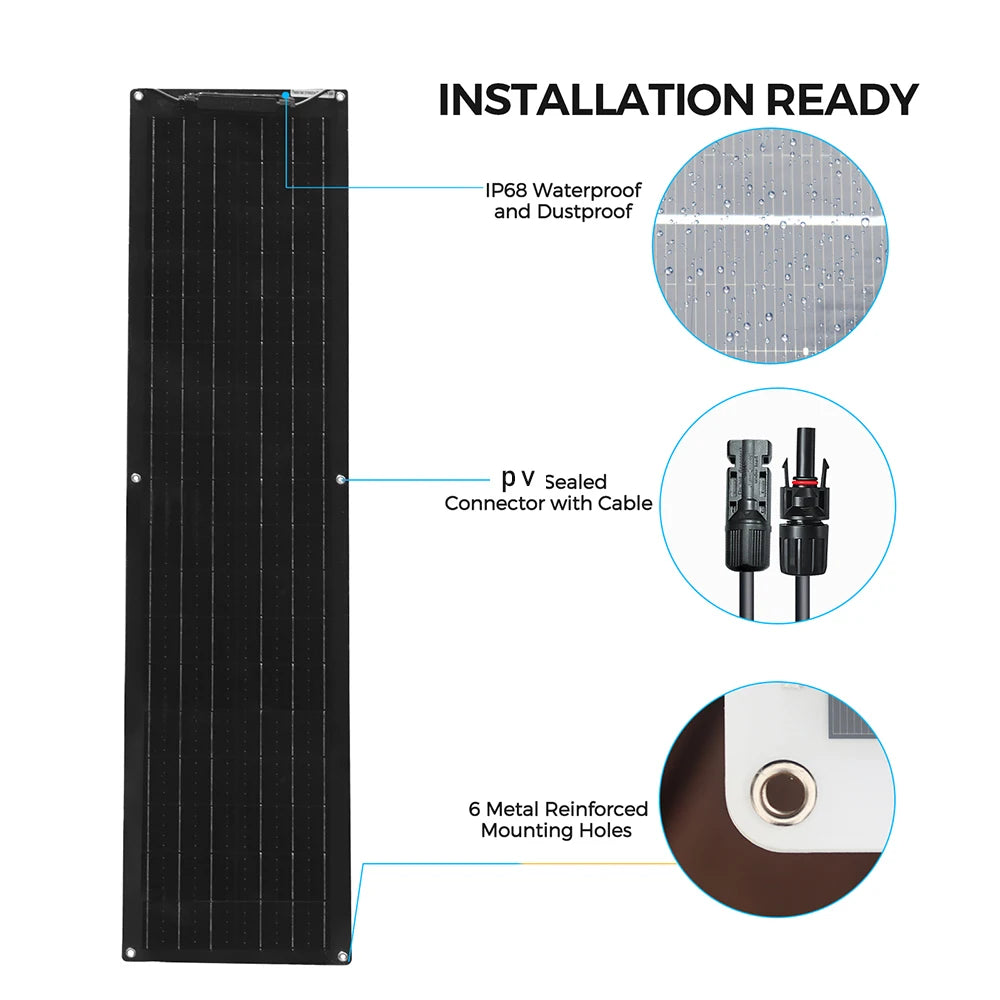

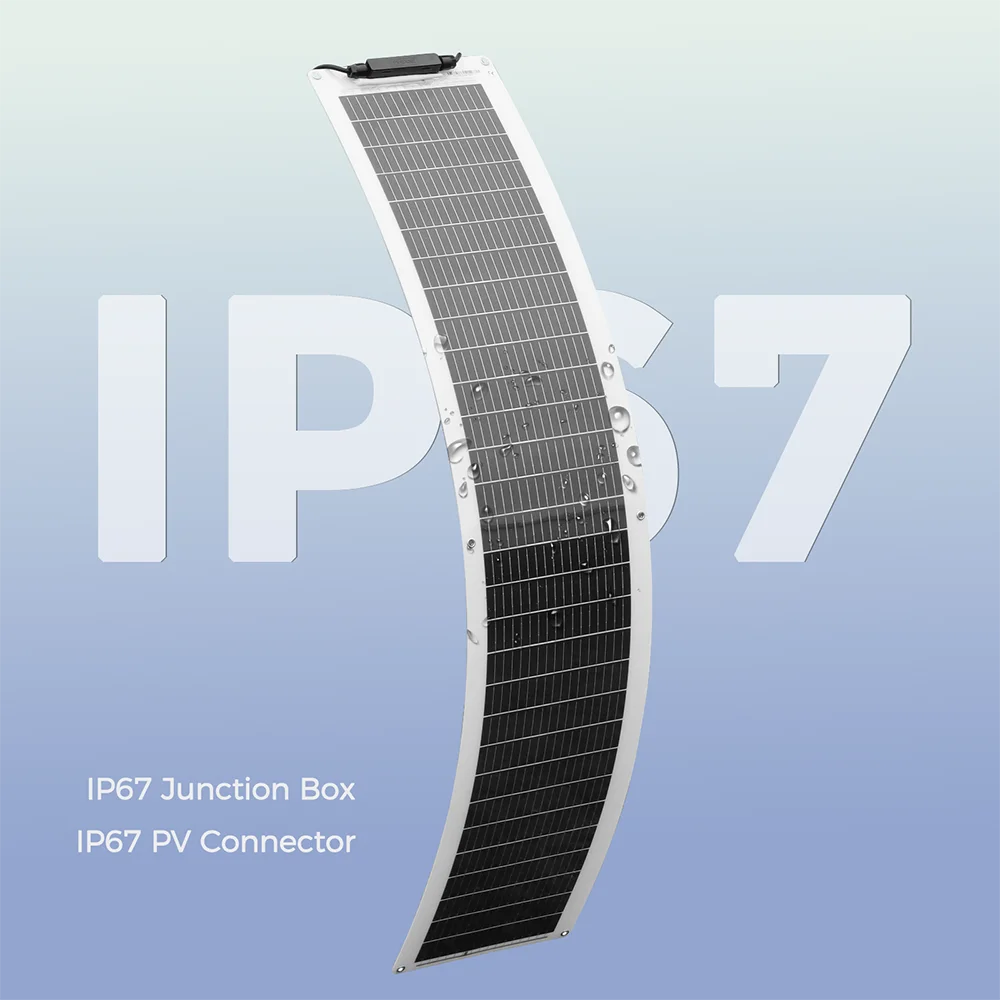

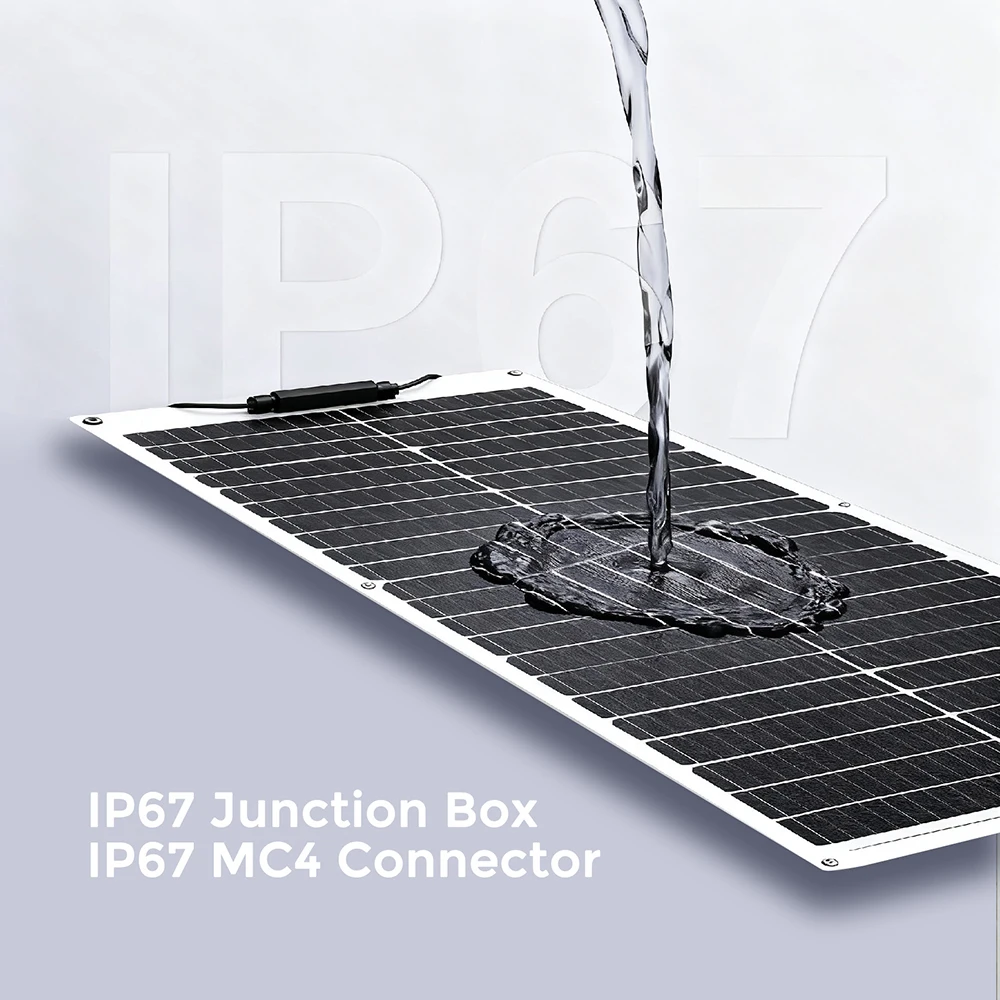

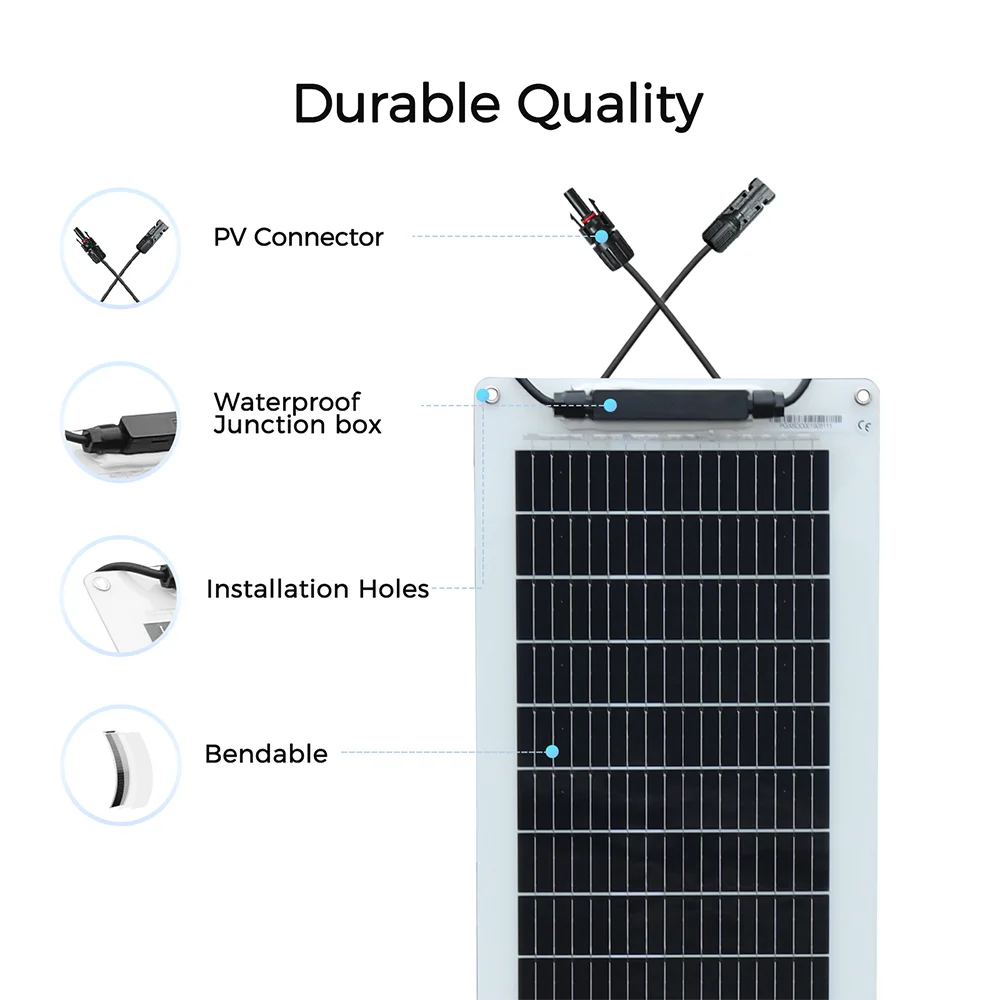

e.The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.
f.Use photovoltaic special cable and connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. The connector is easy to use, plug and play.

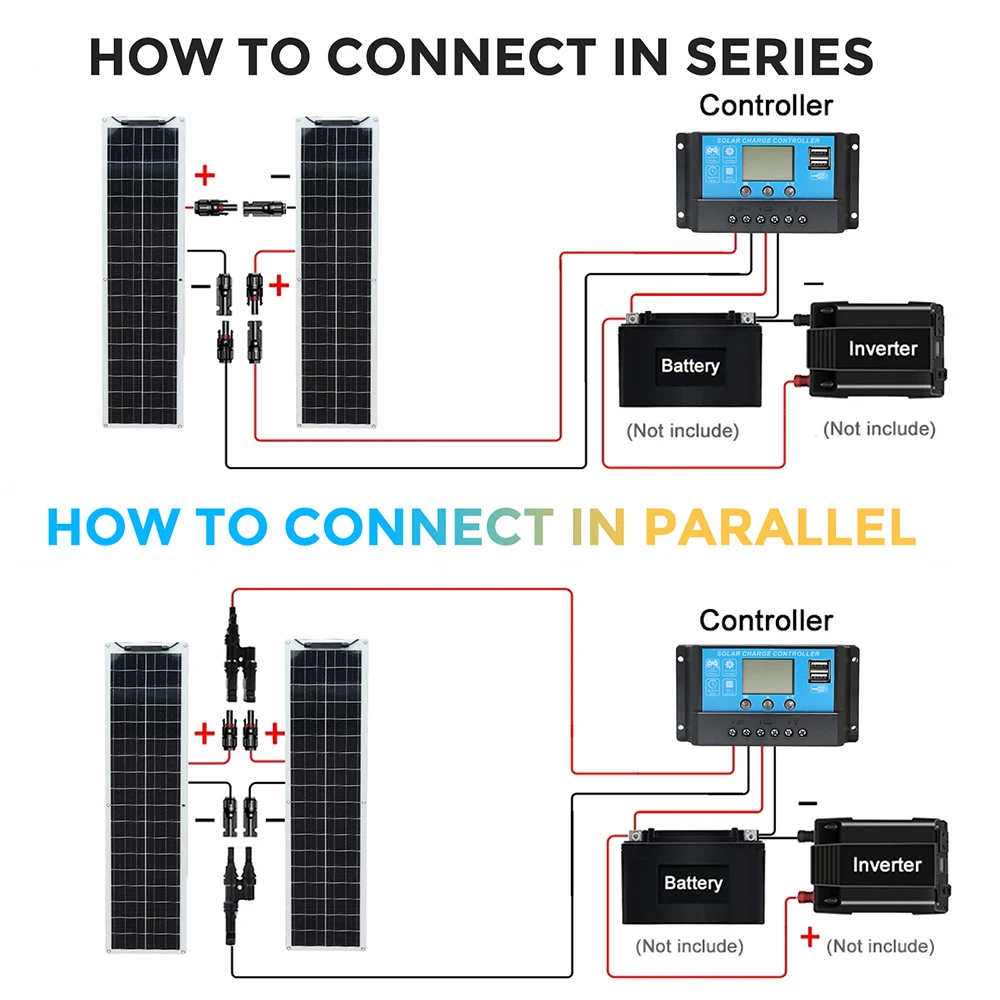

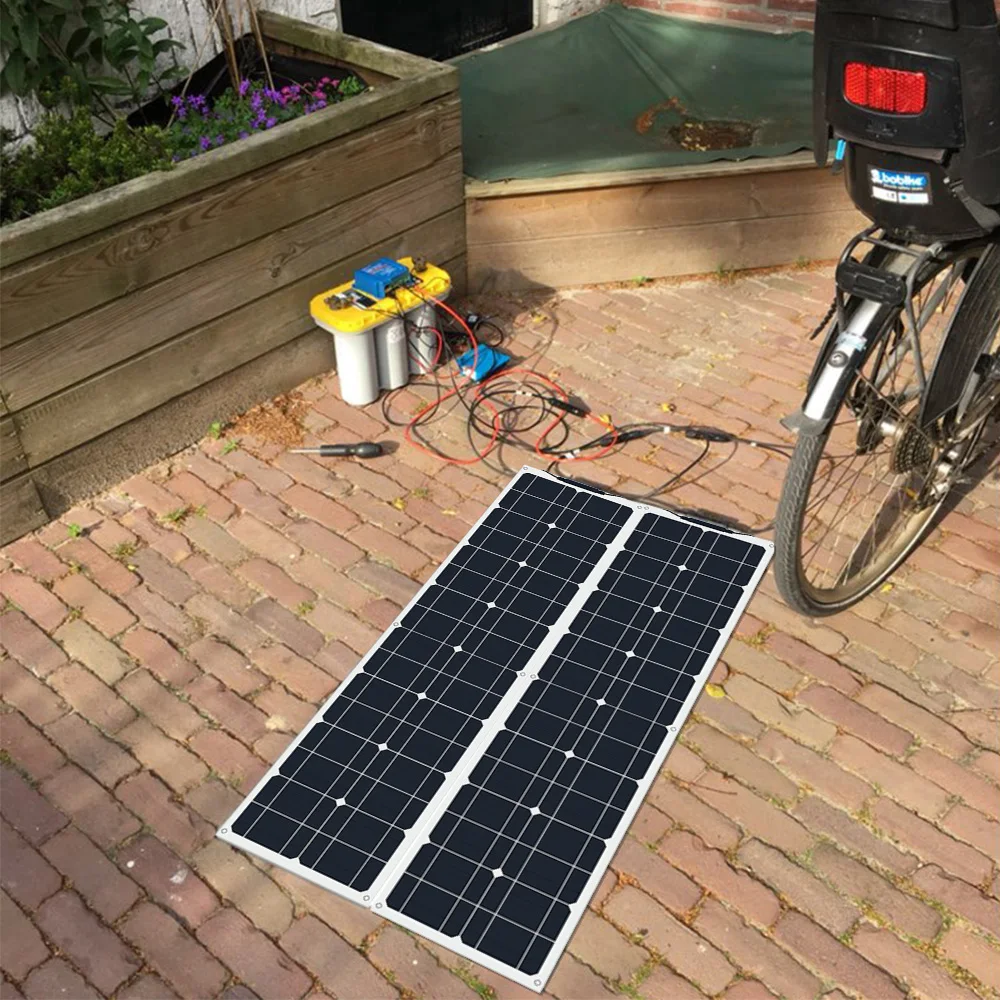

g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.

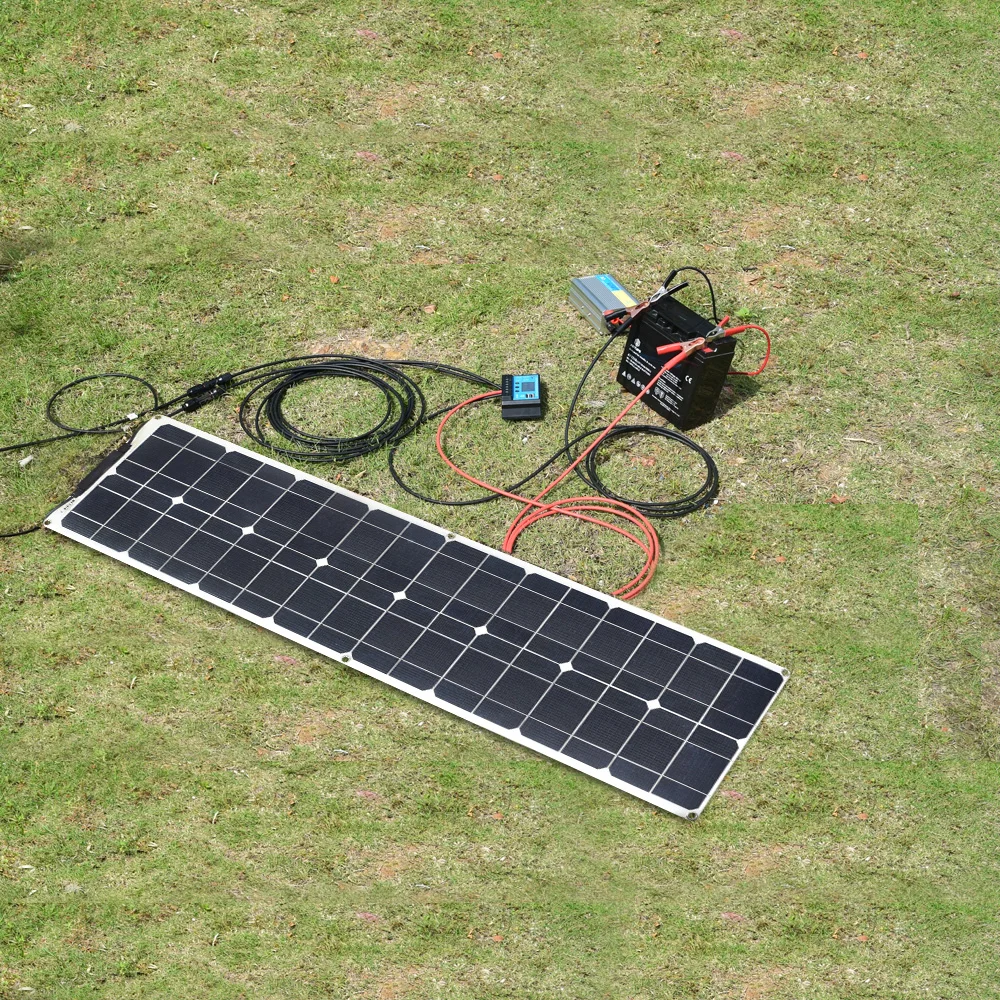

Package included:
1 x 50W solar panel (50W)
or(100W)
2 x 50W solar panel

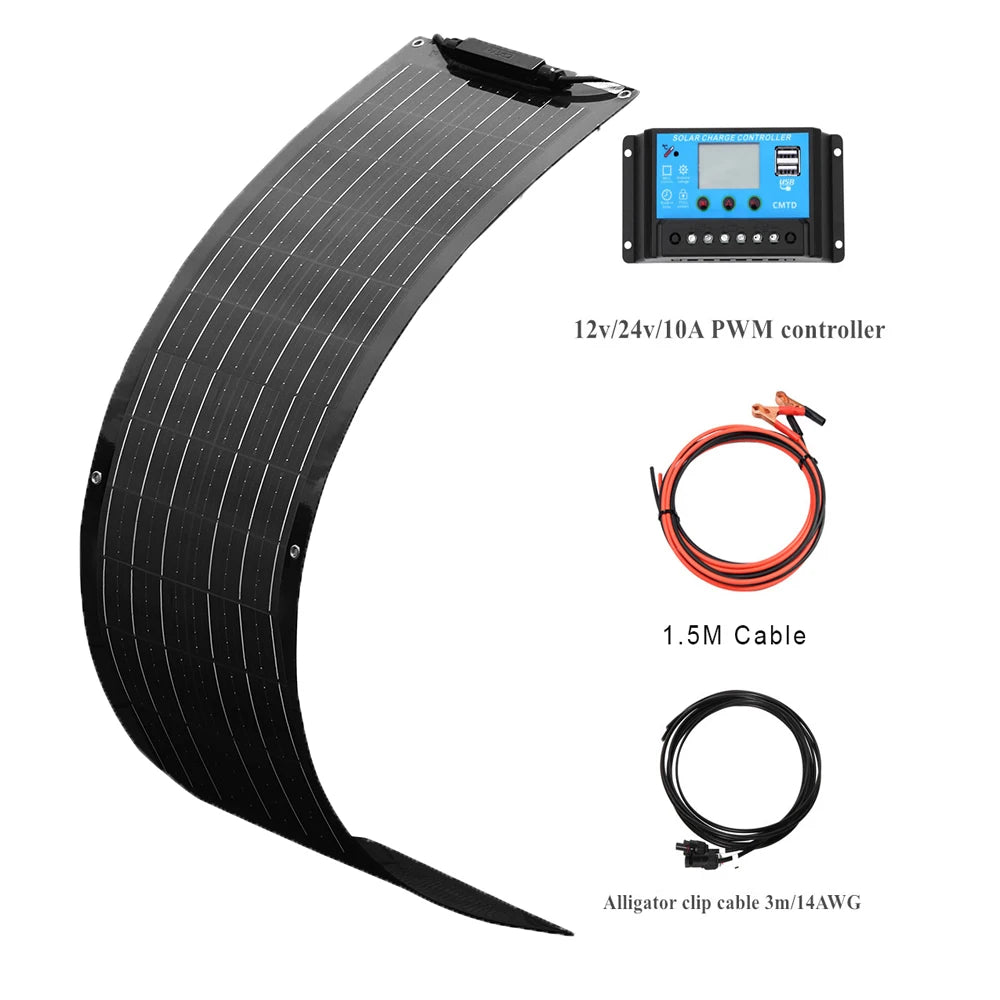

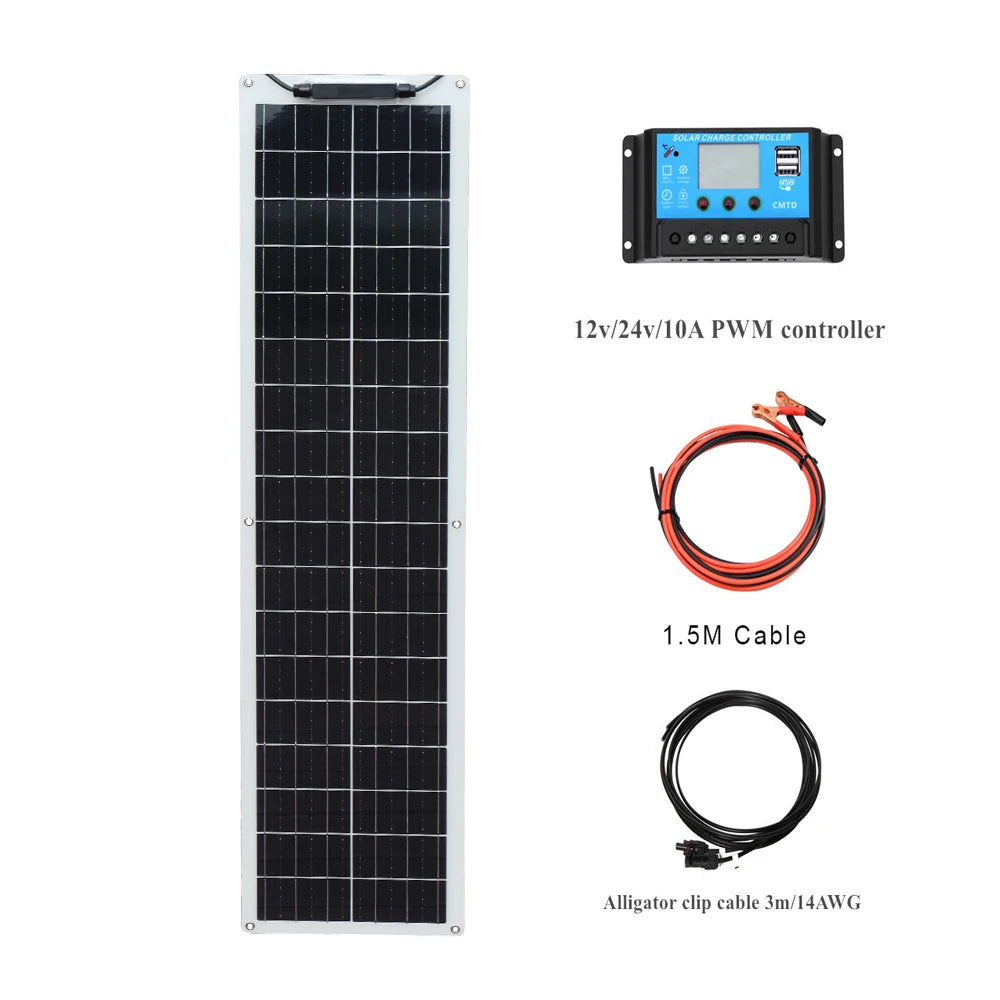

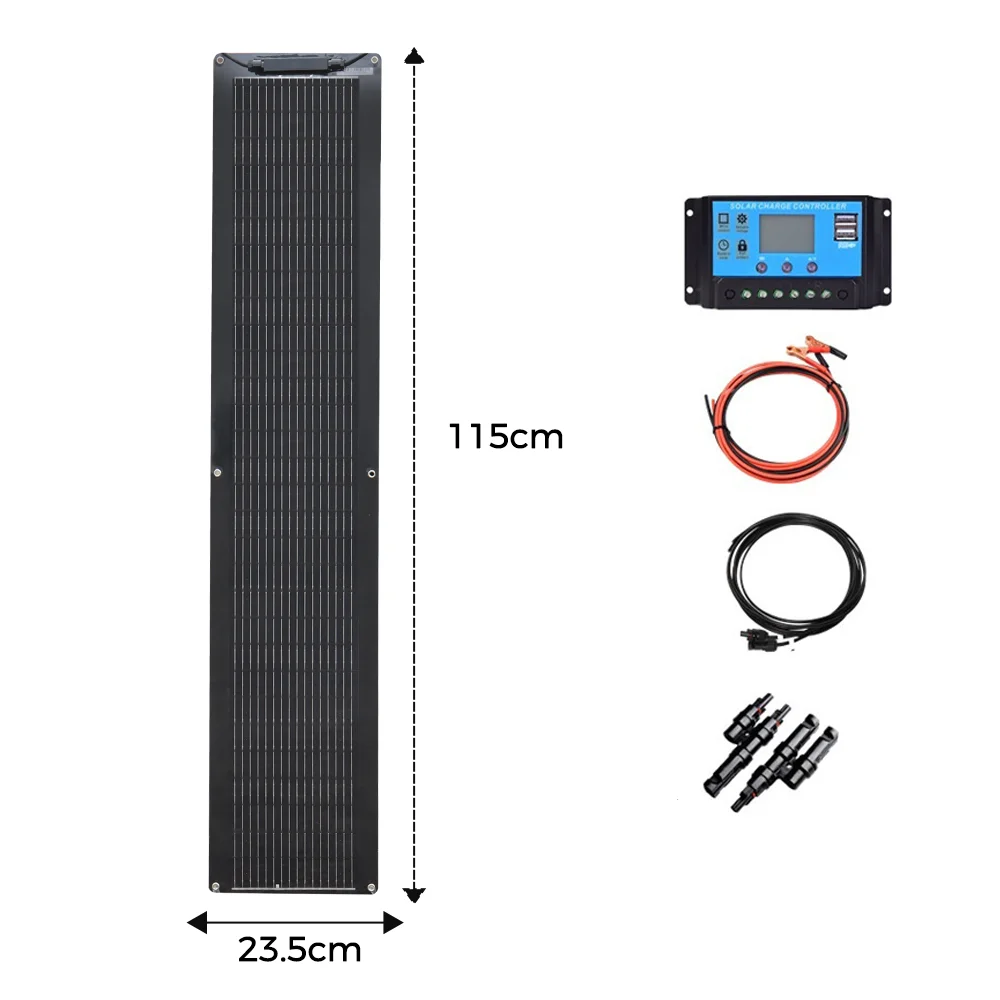

or(50W Kit)
1 x 50W solar panel
1 set 3m cable with PV connector
1 set 1.5m cable with Alligator clip
1 x 10A Controller

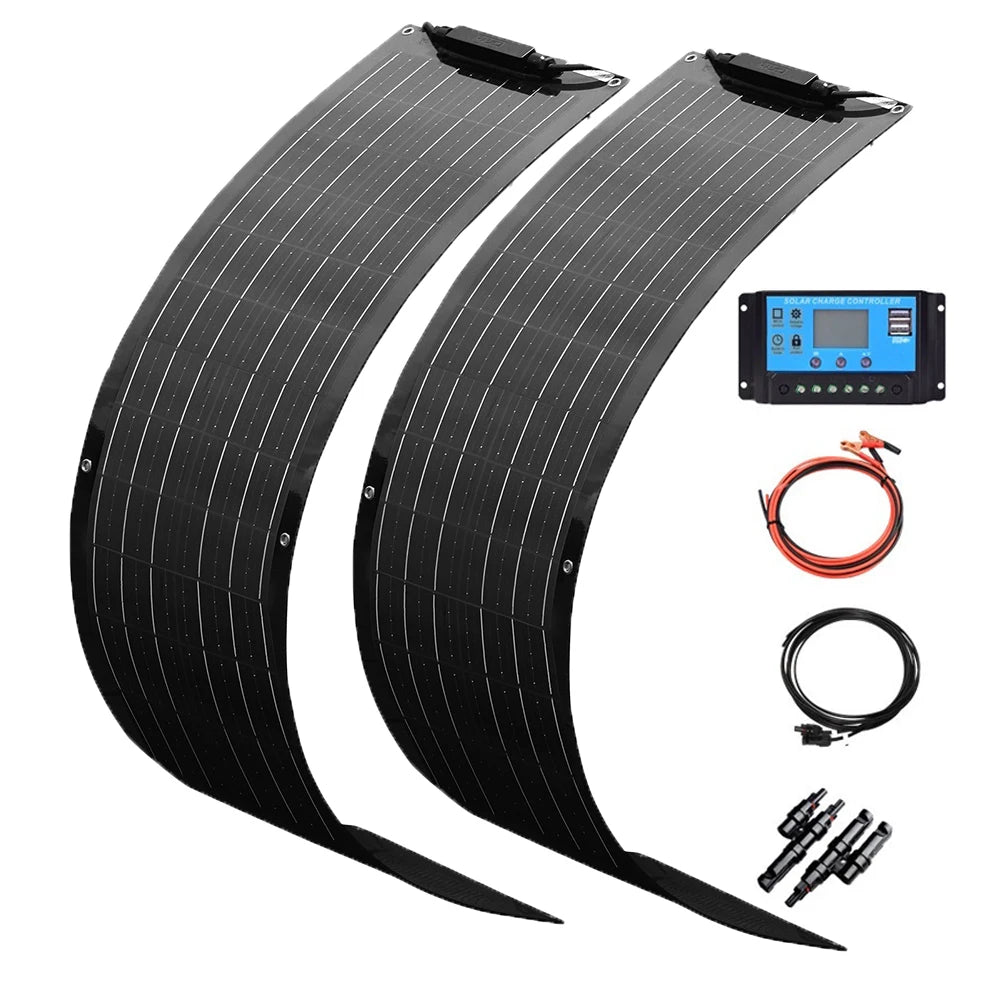

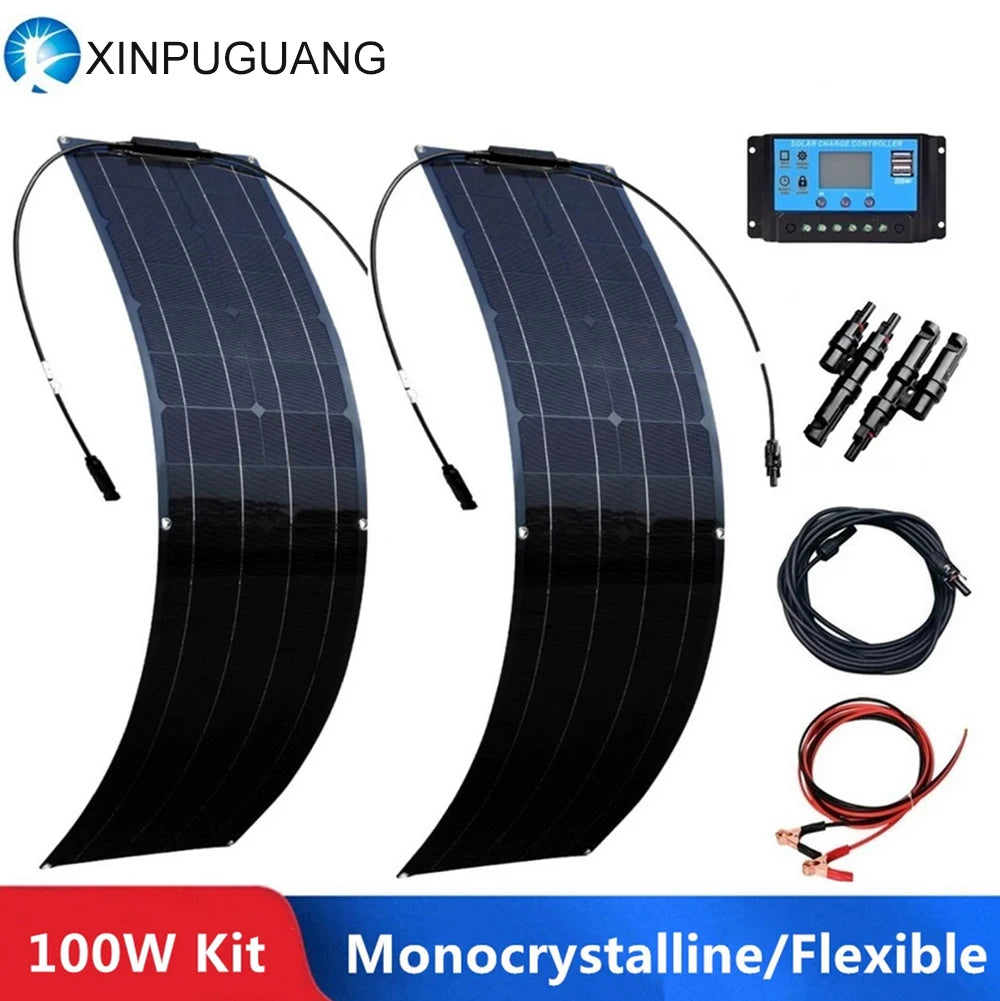

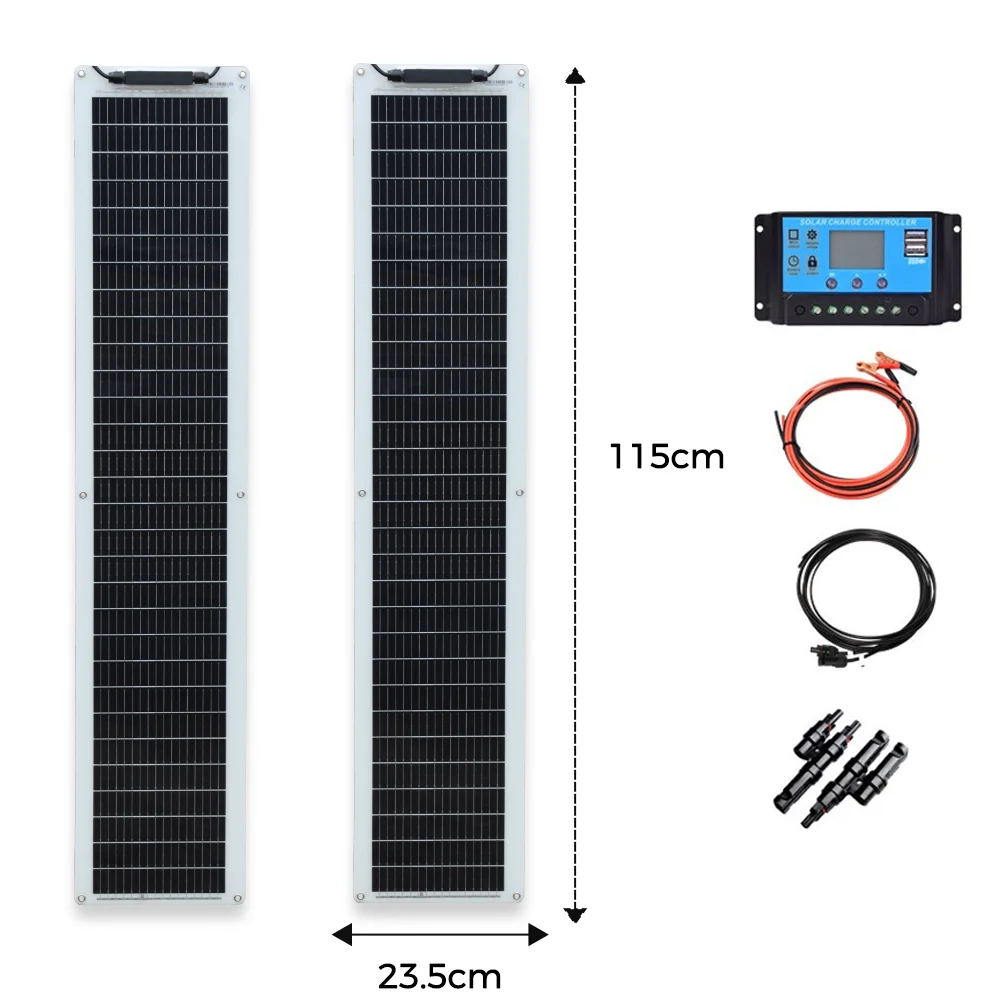

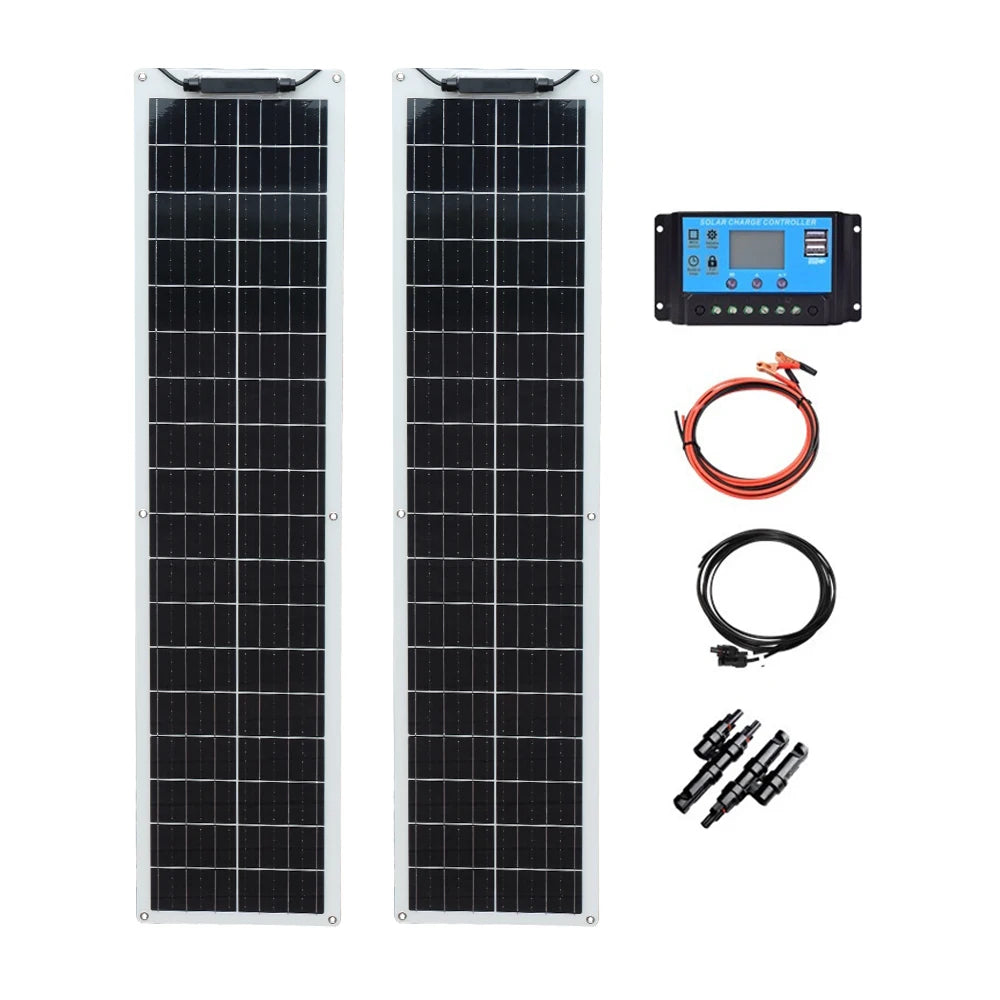

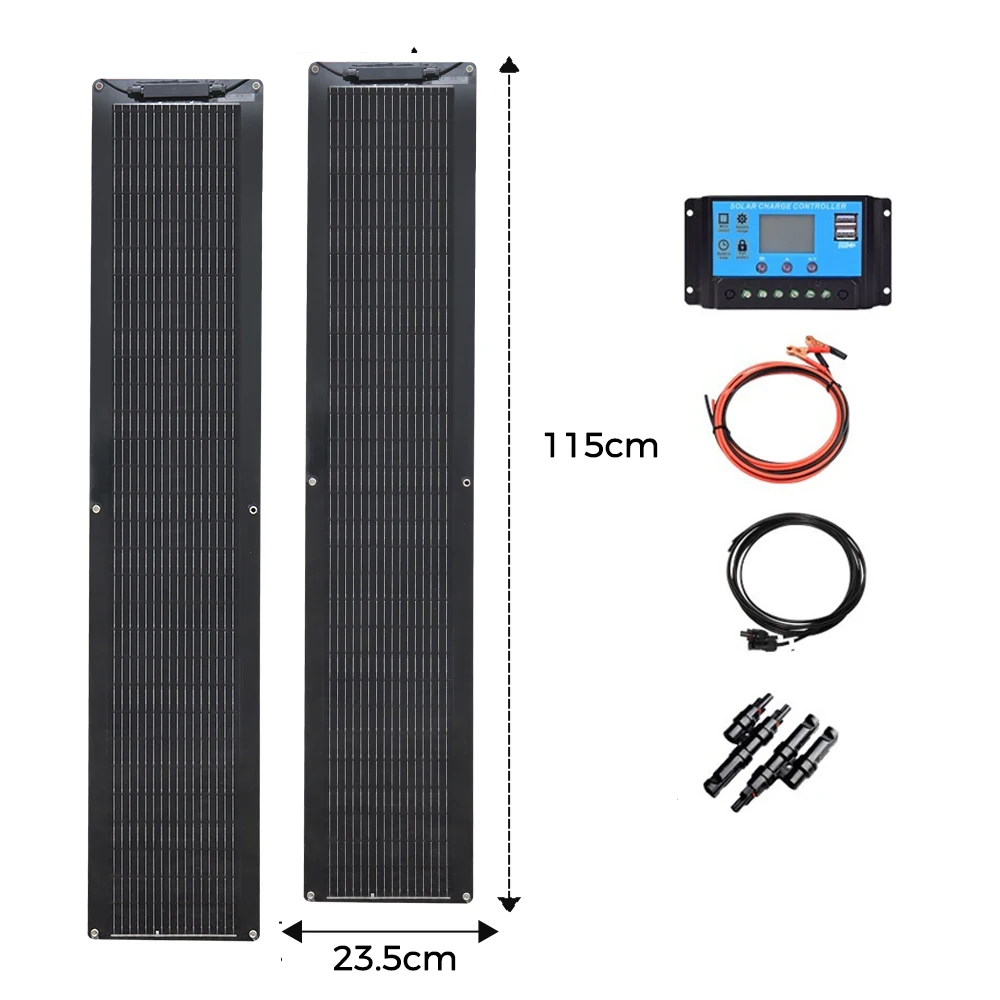

or(100W Kit)
2 x 50W solar panel
1 set 3m cable with PV connector
1 set 1.5m cable with Alligator clip
1 x 10A Controller
1x 2 in 1 adaptors

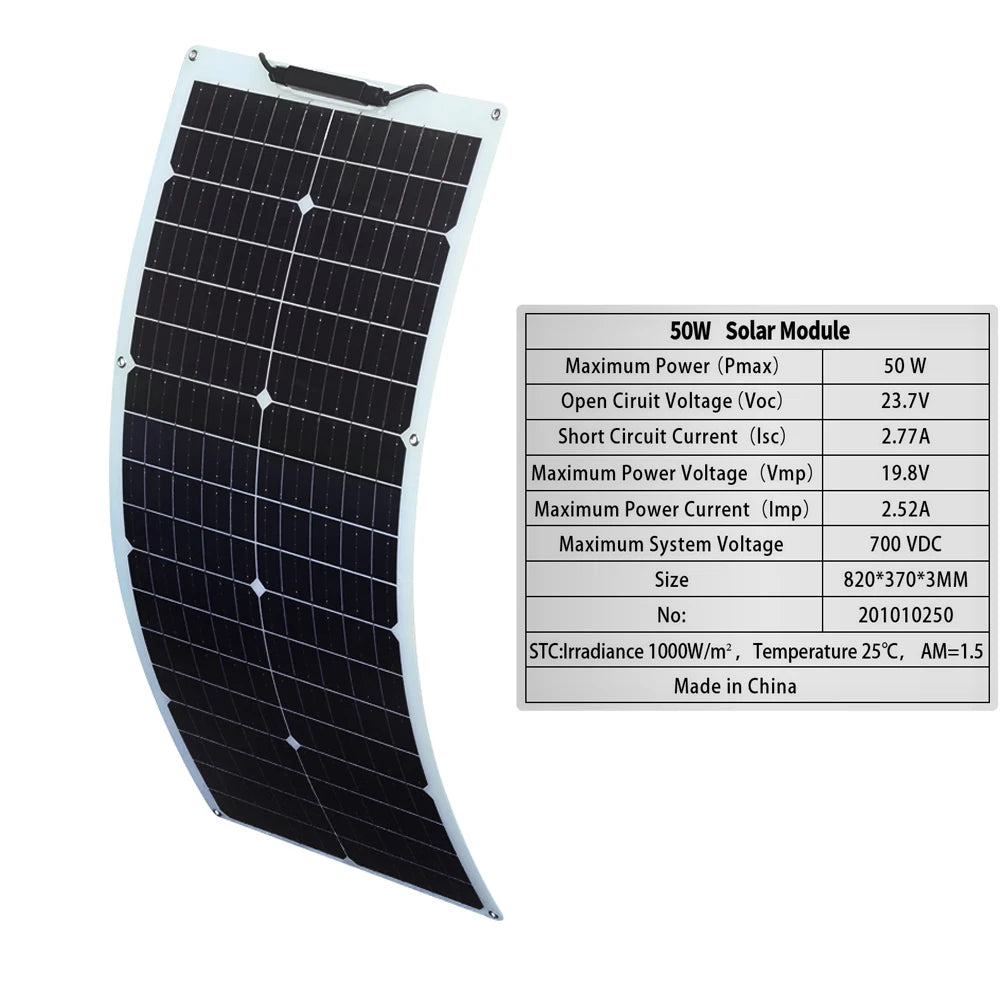

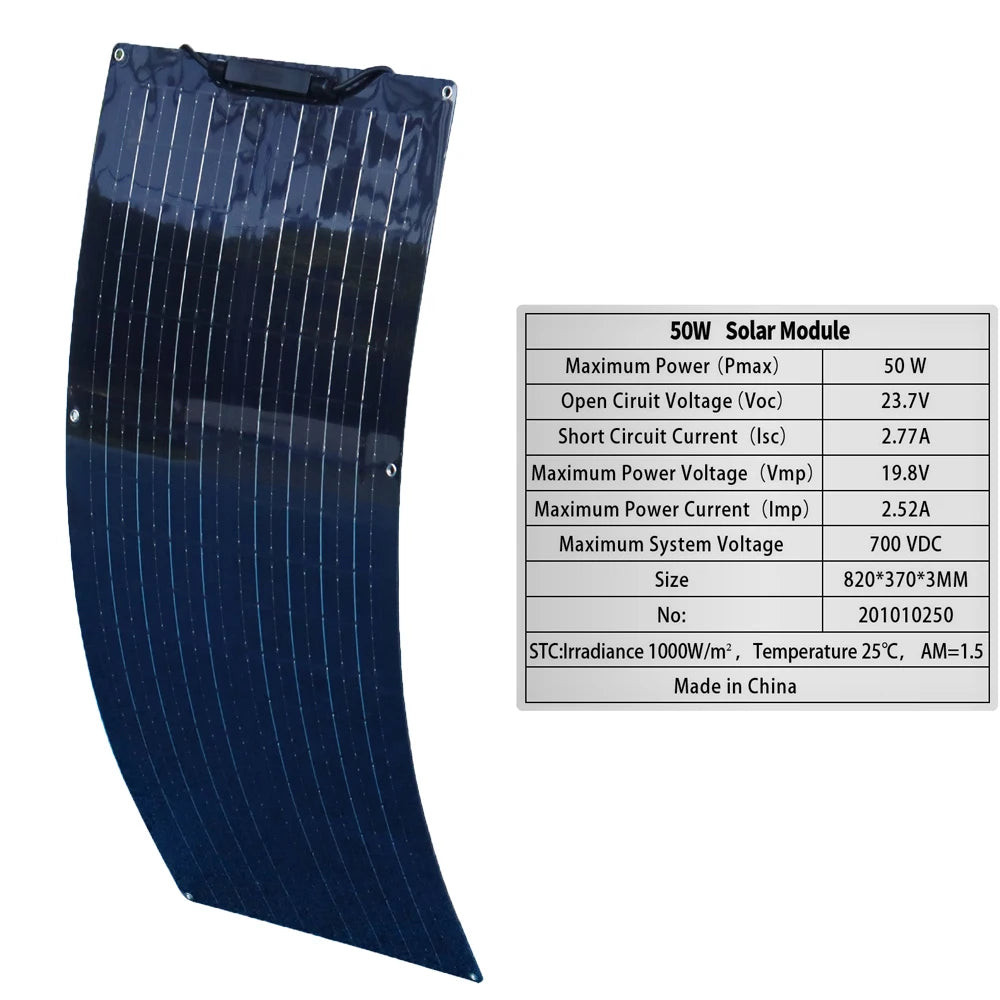

19.8V 50W Specification
Maximum power(Pmax) 50W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 19.8V
Short circuit current(Isc) 2.52 A
Maximum power voltage(Vmp) 23.76V
Maximum power current(Imp) 2.77A
Cell efficiency 24%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 36pcs
Weight 1100g
Size 820*370*3 mm
Color White/Black
Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
19.8V 50W PET solar panel Specification
Cell material: Monocrystalline silicon
Pmax (Power at Maximum under STC) :50W
Imp (Current at Max Power, A): 2.52A
Vmp(Voltage at Max Power, V): 19.8V
Voc(Voltage at Open Circuit):21.8V
Isc (Current at Short Circuit,A): 2.65A
Solar Cell Efficiency: 24%
Size of module:740*400*3mm
Net Weight: 1240g
Length of Cables: 19.7(inches)
Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.14AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error，thank you）
